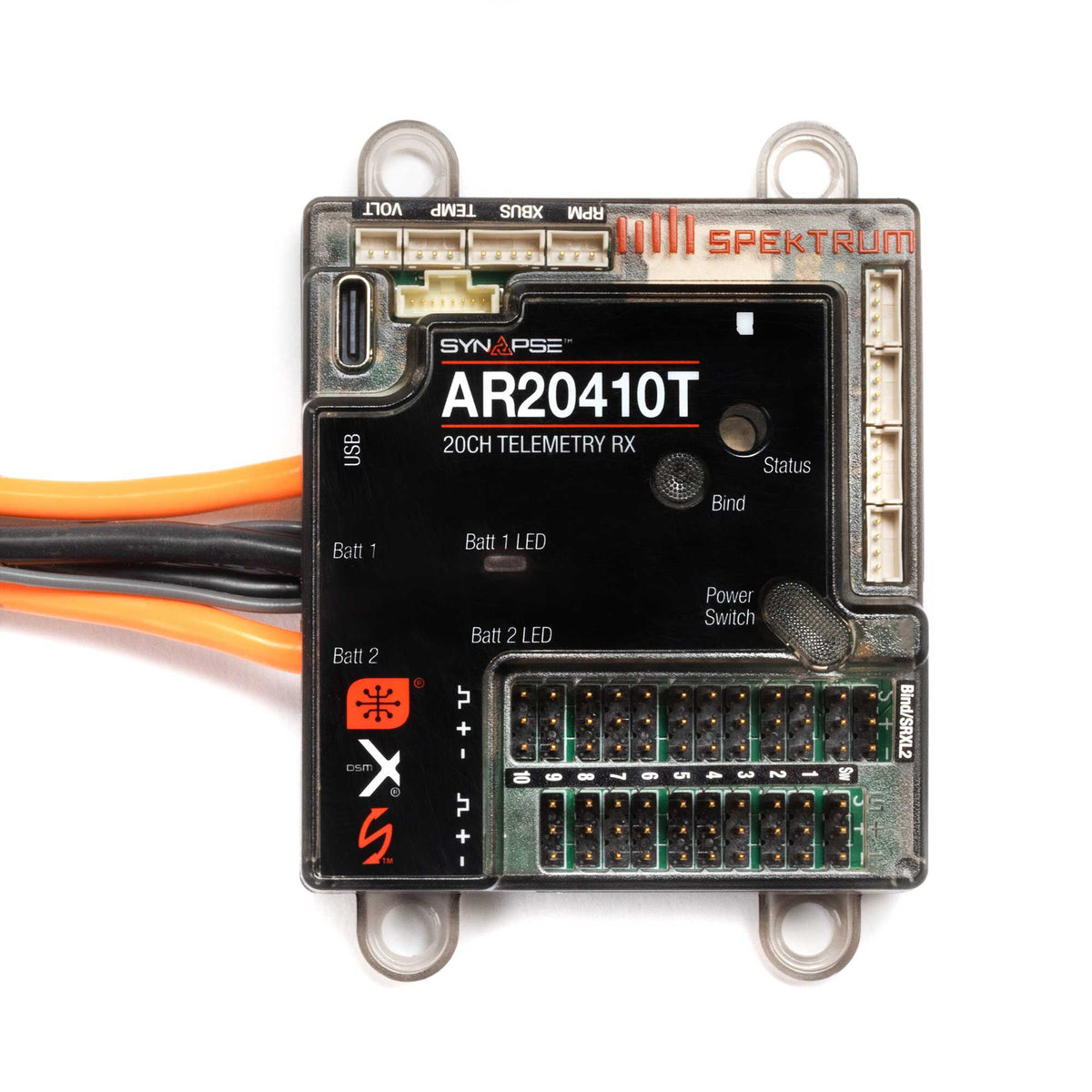

AR20410T 20-Channel PowerSafe Telemetry Receiver

Spektrum AR20410T PowerSafe telemetry receiver – 20 channels

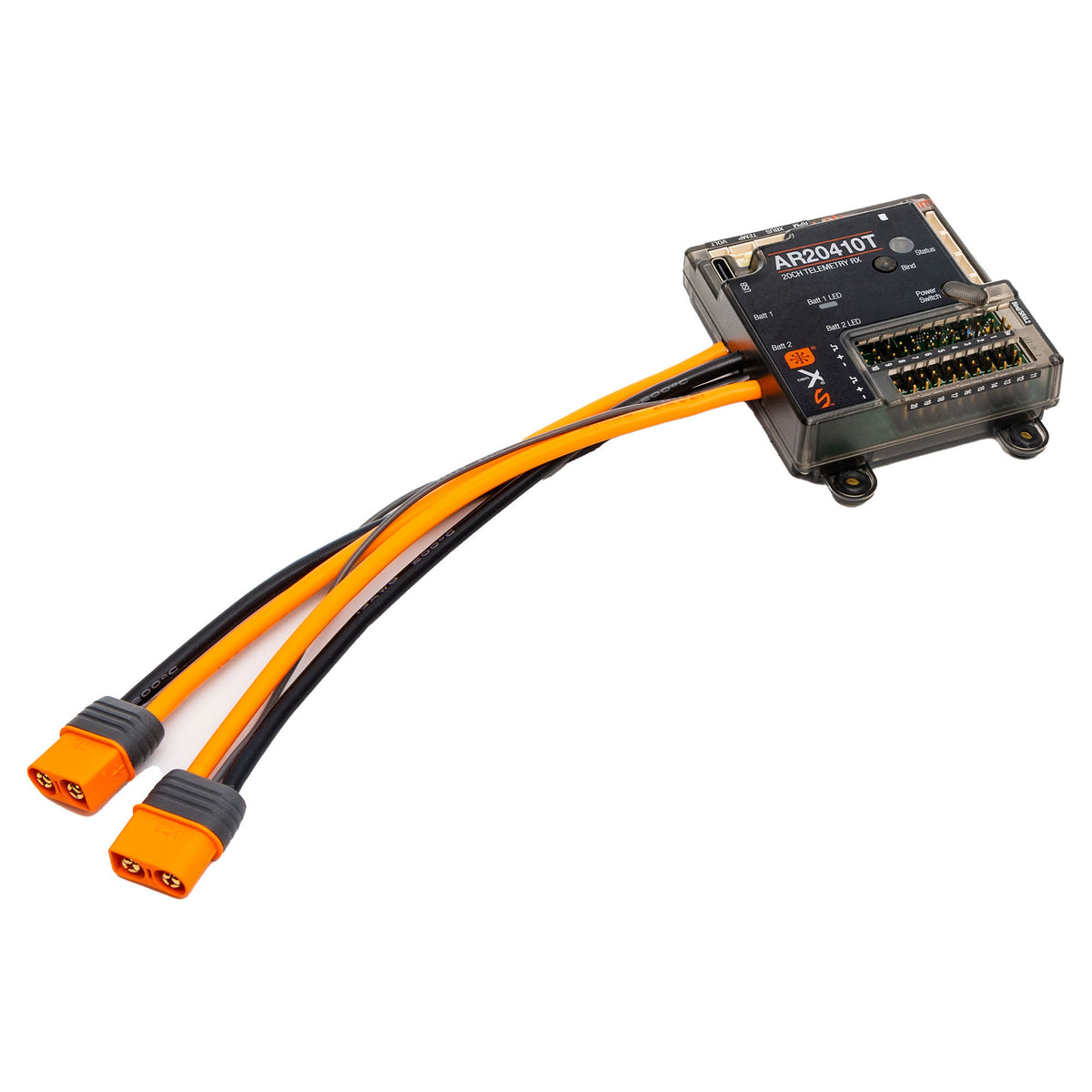

Large aircraft, jets and 3D machines draw more current than anything else. The AR20410T is built for exactly that: a 20-channel receiver with full telemetry, a heavy-duty power bus and two 13 AWG battery leads with IC3 connectors, so you can run large receiver packs straight through the receiver – without a separate power distribution system. If one battery fails, the other takes over without you noticing.

With a DSMX/DSM2 transmitter capable of 11 ms, you get lightning-fast response from stick to control surface, and the four included SRXL2 remote receivers use MultiLink, so signal fading and blind spots will not be your problem. Ready for the Synapse AS3X+/SAFE module (SPMAS6000, sold separately) if you want stabilisation as well.

Features

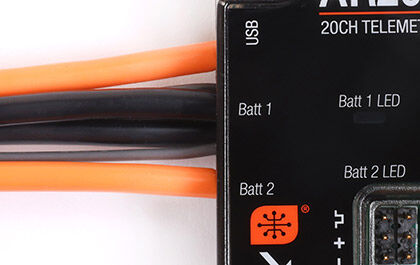

• Patented PowerSafe redundancy with two IC3 battery inputs – up to 35 A (50 A peak)

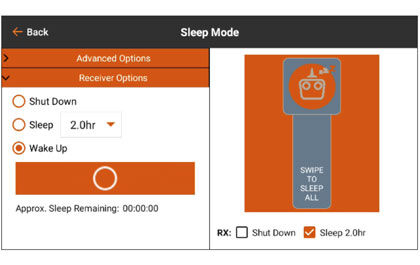

• Sleep mode: switch the model's electronics on and off from the transmitter – no need to remove the hatch
• Fast boot recovery: the gyro is back within milliseconds after static discharge or a power interruption
• Regenerative servo support for any number of servos
• Forward Programming directly from the transmitter: failsafe, servo frame rate, AS3X+ and more – no PC needed

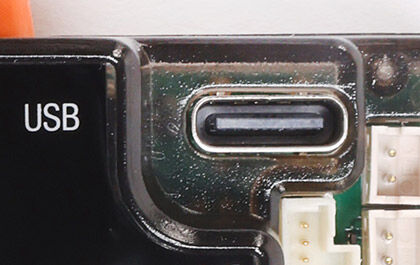

• USB-C for registration and firmware; 12 V operation for 12-volt servos (enabled via Forward Programming)

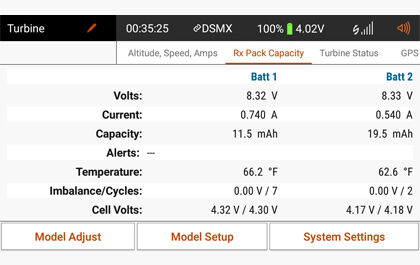

• Capacity meter that shows the mAh used per battery and can reset automatically when charged batteries are connected

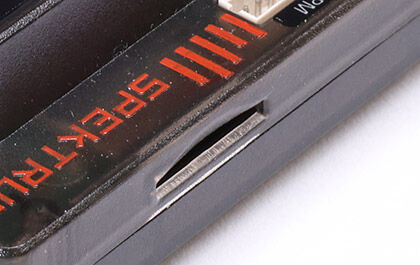

• 'Black box' logging of all telemetry to micro-SD (card not included) – always keeps the latest logs
• Status LED, SRXL2 connection and a single lead for Spektrum Smart ESC telemetry

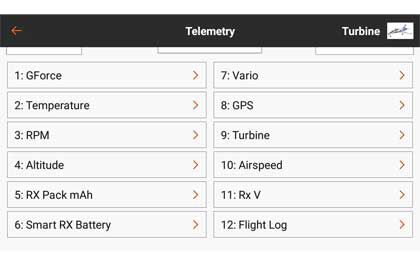

• Ports for RPM, flight pack voltage, temperature and X-Bus; supports GPS, airspeed, motor RPM and turbine ECU telemetry

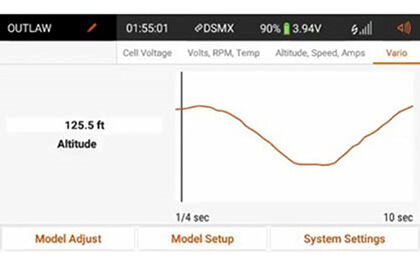

• Altitude and vario via barometer with an SPM4651T remote receiver
• Four ways to bind; 11 ms frame rate that can be boosted to 5.5 ms with Synapse
• Included soft switch routes servo power around the switch – if it fails, the power keeps flowing
• Rubber-isolated mounting points and discreet labelling for a clean installation

Compatible with

• All Spektrum DSMX transmitters
• Not compatible with the DSM2 AIRMOD JR module (SPMMSJR720)

What you need

• Synapse AS3X+/SAFE module (SPMAS6000) if you want stabilisation
• Micro-SD card for telemetry logging
