AR8360T+ 8 Channel AS3X+ & SAFE Telemetry Receiver

Spektrum AR8360T+ DSMX 8-channel AS3X+ and SAFE telemetry receiver

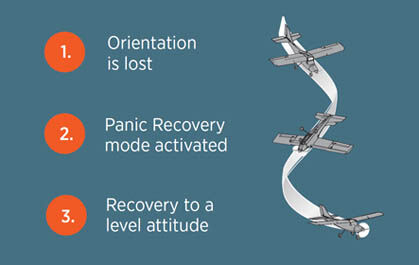

Eight channels, full telemetry and stabilisation in one receiver. The AR8360T+ has AS3X+ – Spektrum's improved stabilisation algorithm that is easy to tune for almost any aircraft – and SAFE, which limits bank and pitch angles so the model does not end up in extreme attitudes. Panic Recovery returns the aircraft to level flight from any attitude at the push of a button. Most aircraft are set up in under 5 minutes, including the first trim flight.

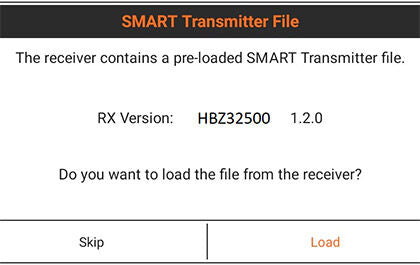

Everything is set up via Forward Programming directly from your Spektrum transmitter – no PC, no phone. The built-in barometer gives altitude and vario without extra sensors, and XBUS and temperature ports are ready for more. And with Smart Transmitter Model Files, the receiver can transfer a finished model setup to the transmitter when binding (iX20, iX14 and NX with the latest firmware). That's smart!

Features

• AS3X+ with Stop Lock, Release Rate, improved heading hold and gyro filtering, plus canard/thrust vectoring support
• SAFE flight modes and SAFE Panic Recovery
• Bind button – no bind plug needed (a traditional bind plug also works)
• Two external antennas cover the aircraft from all angles; SRXL2 port for an additional remote receiver (SPM9747 or SPM4651T, sold separately) for RF redundancy

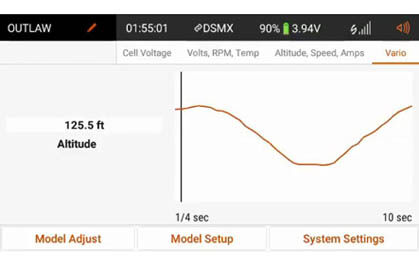

• Built-in barometer: altitude and vario without extra modules; XBUS and temperature ports for more sensors
• SRXL2/Bind/Program/Batt header for Smart devices, programming, updating or battery
• Ready for Spektrum Smart ESC: current, voltage, temperature and RPM via a single lead
• Forward Programming: individual failsafe per channel, SmartSafe or Hold Last, etc.
• End-mounted servo pins for compact installation

Specifications

• Channels: 8
• Protocol: DSMX
• Stabilisation: AS3X+ and SAFE
• Telemetry: full range, built-in barometer

Video

Please note: The DX7S and DX8 Gen 1 do not display altitude/vario telemetry. Forward Programming is not supported by the DX6i, DX6G2 (EU), DX7, DX7S, DX7SE, DX7G2 (EU), DX8 and non-computer transmitters. Not recommended for turbine aircraft.
