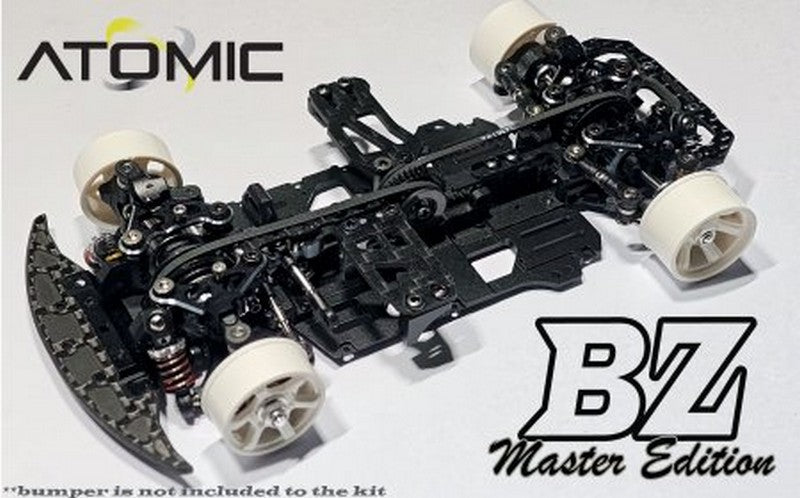

Atomic BZM-KIT - BZ Master Edition 4WD Chassis Kit (No electronics)

Description

Here we present you with the most advanced of our AWD competition machine BZ Master Edition.
After years of experience and listening to racers opinion around the world; We now fully re-design our winning belt drive 4wd chassis
What is new in BZ Master:
- New main frame which integrated the front and rear bulkhead, spur gear mount, motor mount and the chassis plate. All these parts are crafted in a single 7075 alloy to make sure the perfect alignment of the drive chain parts.
- 50:50 mid belt design: equal belt length of front and rear to have more on power steering.
- CNC made Ball-head type suspension system; wobble and slop is significantly reduced.
- Quick adjustment of the camber angle thru the turnbuckle screw on upper arm.
- All suspension arms are made 7075 alloy, provide extra rigidity and stability in large super high-speed tracks.
-Active Rear Toe system, easy adjustment of the rear toe angle and you can change the mid corner rear grip of the rear by adding or reduce shims.
- Come with aluminium chassis with ability to add side wings and mass weights (optional parts) to reduce the chance of traction roll and add stability
- Servo mount is compatible with slim or normal size servo (8.0mm to 11.5mm thick)
- 24mm wide battery compatible.
- Sway bar system (with bearing support) will be available in options
- Front caster angle adjustable (with shims on the lower front arm)
- Front width is 74mm with Narrow Wheels (N-8.5mm 0 offset)
- Rear width is 76mm with Wide Wheels (W-11mm 0 offset)
