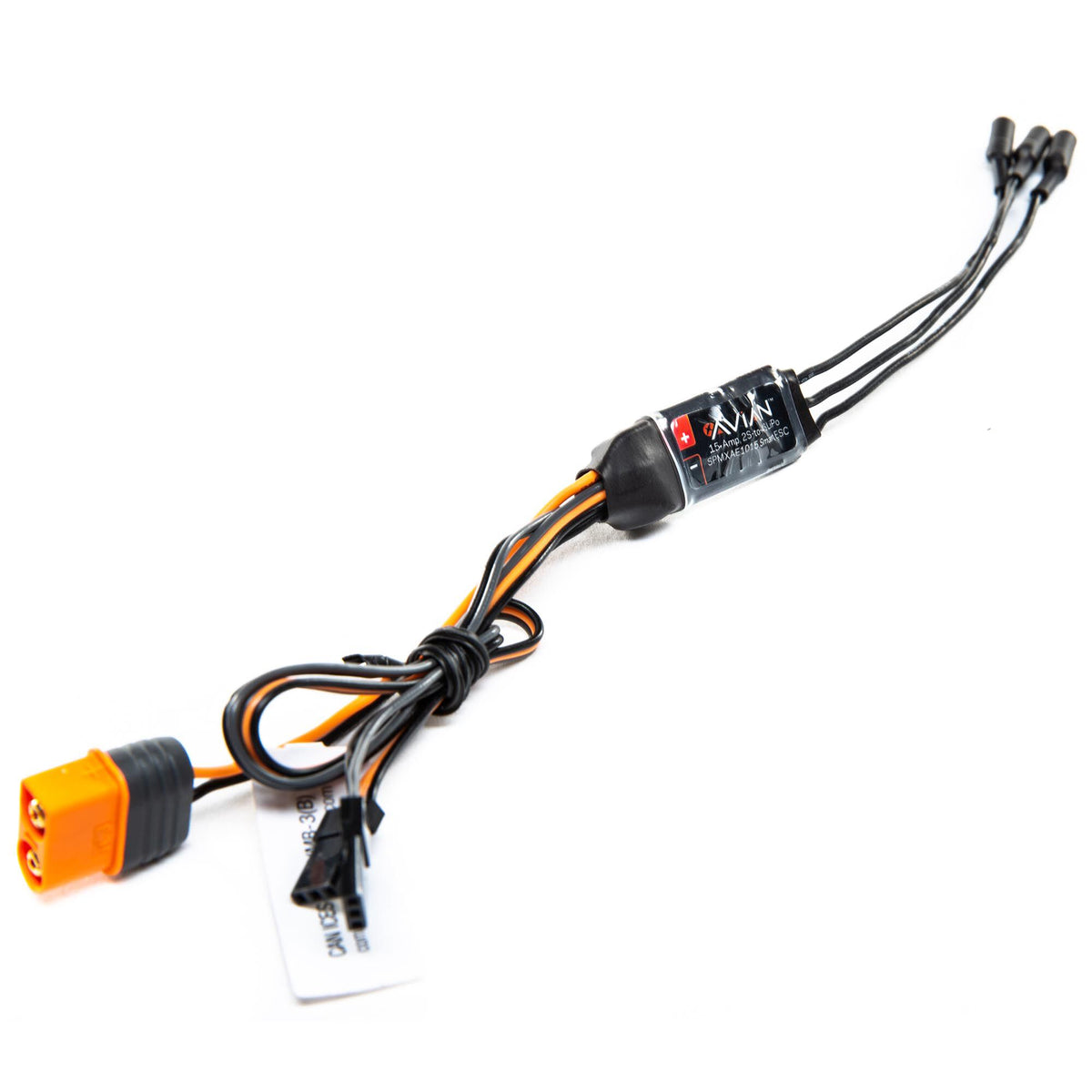

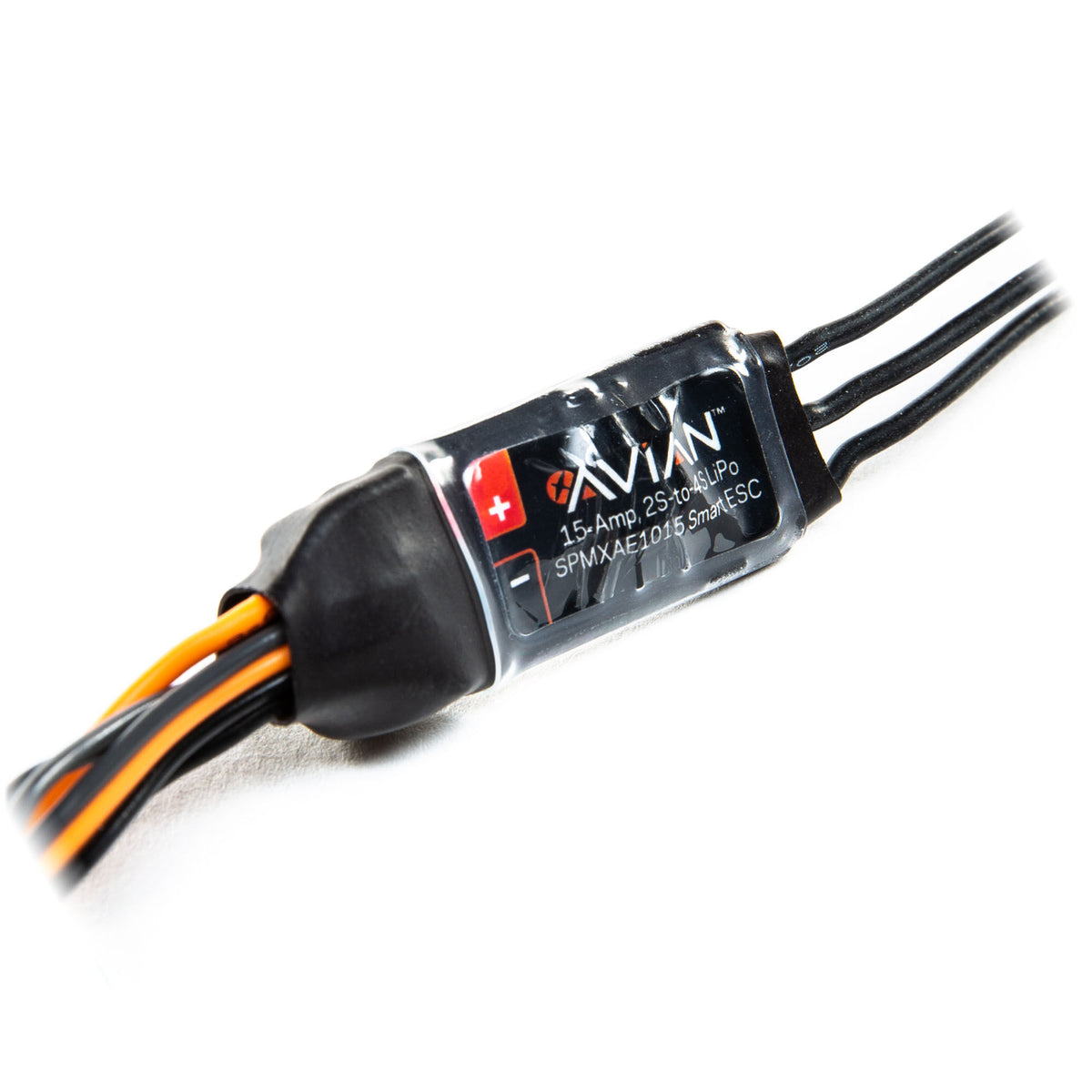

Avian 15 Amp Brushless Smart ESC 2S-4S

Spektrum Avian 15 A brushless Smart ESC – 2S-4S

A small Smart ESC for 2S-4S electric planes – plug-and-play without soldering. Through a single lead, the Avian 15 A sends input voltage, throttle in/out in percent, ESC temperature and motor RPM to your transmitter, so you can keep track of the system while you fly.

All ESC parameters can be programmed directly from the transmitter via the Avian Prog telemetry screen, and motor reversing can be switched on with a switch – handy on the ground and as a brake when landing. That's smart!

Features

• Telemetry through a single lead: input voltage, throttle in/out %, ESC temperature and motor RPM
• Fast 32-bit ARM M4 processor
• Programming via throttle stick, Smart ESC Programming Box, SmartLink USB app or directly on the Spektrum transmitter
• Motor reversing (requires a Smart-compatible transmitter and receiver, enabled in the ESC parameters)
• Protection against overcurrent, LiPo undervoltage (automatic cutoff), overheating and signal loss
• Compact, heat-dissipating design with two BEC power connectors
• Heat-resistant IC connectors, backwards compatible with EC3/EC5
• Limited 1-year warranty

Specifications

• Current: 15 A
• Battery: 2S-4S LiPo

What's in the box

• 1 x Spektrum Avian Smart ESC
• 1 x Spektrum Smart sticker sheet
• 1 x manual

What you need

• Spektrum aircraft receiver
• Spektrum Smart LiPo battery
• Spektrum transmitter

Video

Images

Please note: The Avian 15 A has no Smart battery data line and does not measure motor current – battery telemetry (temperature, cycles, cell balance) is not transmitted.
