Futaba  |  SKU: EBB0141 Producent varenr.: EBB0141  |  EAN: 4513886306372

Cable External Volt R7003SB, R7008SB & R7018SB (CA-RWIN-700)

109,00 kr

Get a price match on Cable External Volt R7003SB, R7008SB & R7018SB (CA-RWIN-700)

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 4-6 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

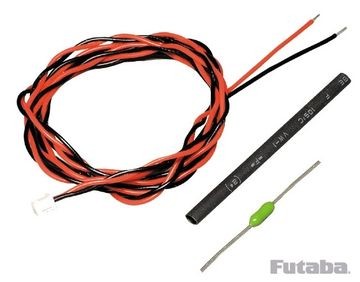

This is the Futaba CA-RVIN-700 External Voltage Input Cable.

FEATURES
  • Used to connect a Futaba telemetry equipped receiver to an extra voltage port.
INCLUDES
  • Cable, Fuse, Heat Shrink Tube and Instructions
SPECIFICATIONS
  • Length: 700 mm
COMMENTS
  • This voltage cable plugs into the R7008SB next to the antenna.
  • This measures the external voltage, such as the battery that is running a motor. The voltage will be displayed in the transmitter as "EXT-VOLT".
  • Maximum voltage is 70 volts.
  • Cable should be cut to desired length, then remove & save 30mm from the positive black line. Next, solder the fuse inline on the positive wire and reattach the section of wire that was previously removed and solder into place. The fuse should be attached as close to the external power supply as possible. Place shrink tubing over the fuse and cover all sodered areas. Shrink the tubing onto the wire with a heat gun. The cables will then be connected to corresponding + & - wires that connect the ESC to the battery and attached using solder and shrink tubing.
