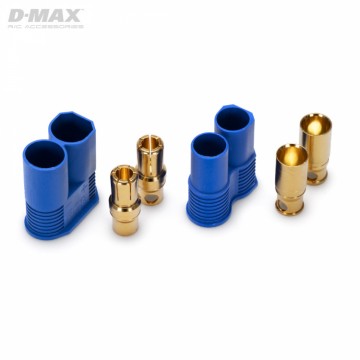

Connector EC8 (8mm) Pair

D-MAX EC8 Heavy Duty 8 mm Connector – Pair

Heavy-duty 8 mm connector for high-performance RC models

D-MAX EC8 is a heavy-duty, gold-plated 8 mm connector set designed for electric RC models with high current draw. The robust construction is suitable for demanding installations that need a strong, reliable power connection.

Specifications

• Manufacturer: D-MAX
• Type: EC8 Heavy Duty connector
• Contact size: 8 mm
• Material: Gold-plated brass
• Continuous current: 100A
• Max. peak current: 190A
• Max. recommended wire size: 8AWG (approx. 5.7 mm diameter)
• 6AWG may be usable, but the fit is very tight
• Housing material: Nylon
• Dimensions: 42.5 x 12.9 mm
• Weight: 26.7 g

Suitable for

• Powerful electric RC models
• High-current battery connections
• Electric planes, cars, boats and other models with high current draw

Important

The EC8 connector is not compatible with D-MAX QS8 connectors. Always check the connector type before combining components.

What's in the box

• 1 x EC8 male connector
• 1 x EC8 female connector

What you also need

• Suitable wire, soldering equipment and heat-shrink tubing if needed for fitting
