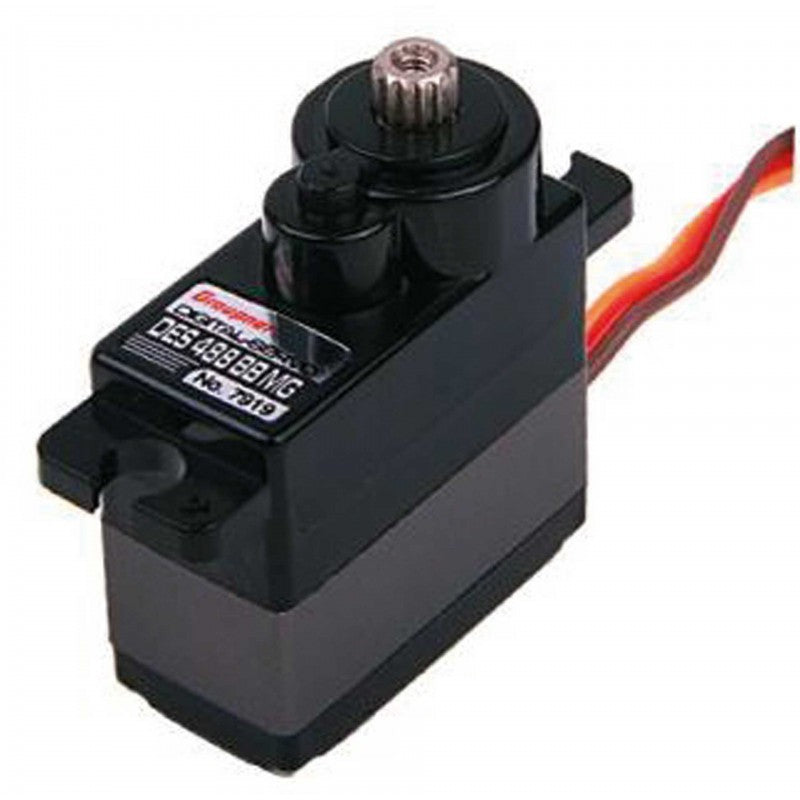

DES 488 BB MG Digital Servo

Graupner DES 488 BB MG digital servo

A small, light digital servo with metal gears – especially well suited to powered planes and gliders as well as micro helicopters. The DES series is Graupner's affordable range of digital servos for all-round use in model building, with a high-quality Atmel microcontroller.

Specifications

• Type: Digital
• Gears: Metal
• Operating voltage: 4.8-6.0 V
• Speed (4.8 V): 0.12 s/60°
• Speed (6 V): 0.1 s/60°
• Torque (4.8 V): 2.5 kg/cm
• Torque (6 V): 2.8 kg/cm
• Output shaft: 15Z

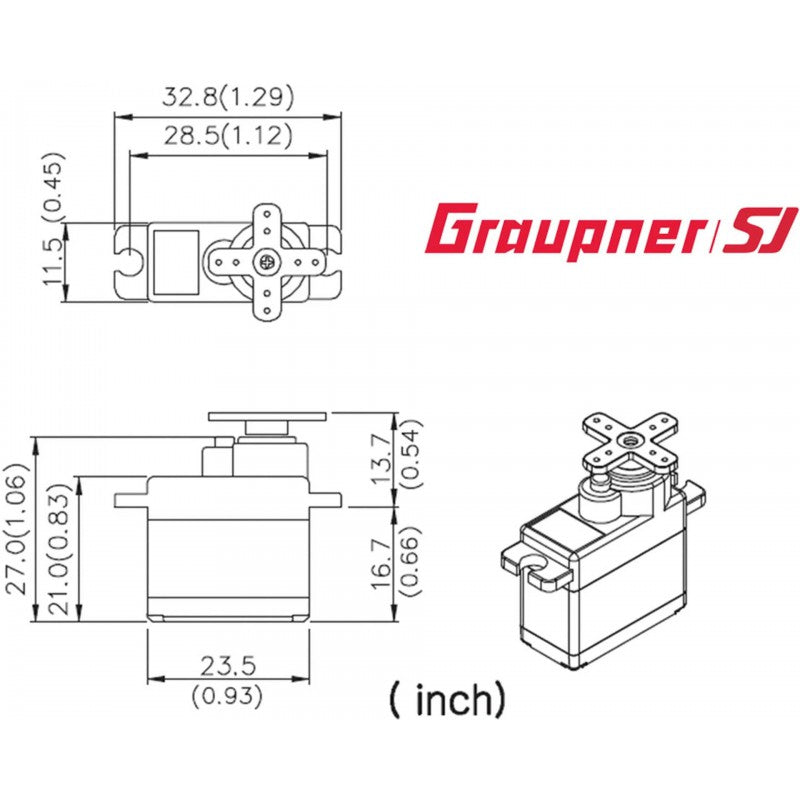

• Dimensions (L x W x H): 23.5 x 11.5 x 27 mm
• Weight: 10.8 g

Please note: On servos with metal gears, the potentiometer's operating voltage is carried through to the metal output shaft. If you use aluminium control horns or an uninsulated RDS linkage with a conductive connection – for example in an all-carbon model – the servos can interfere with each other. Use plastic control horns instead, or insulate the installation so there is no electrical connection.
