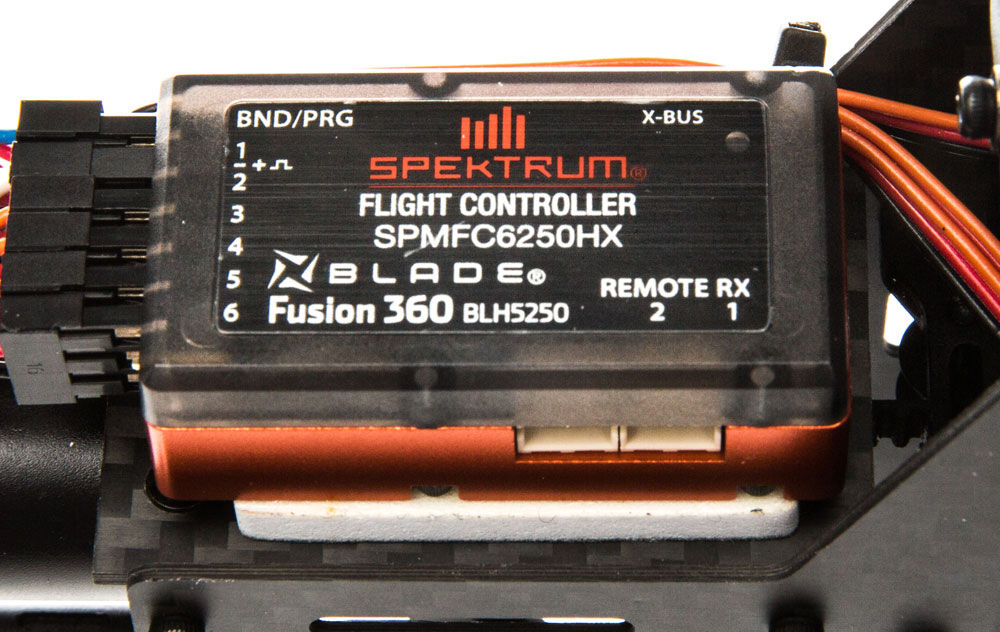

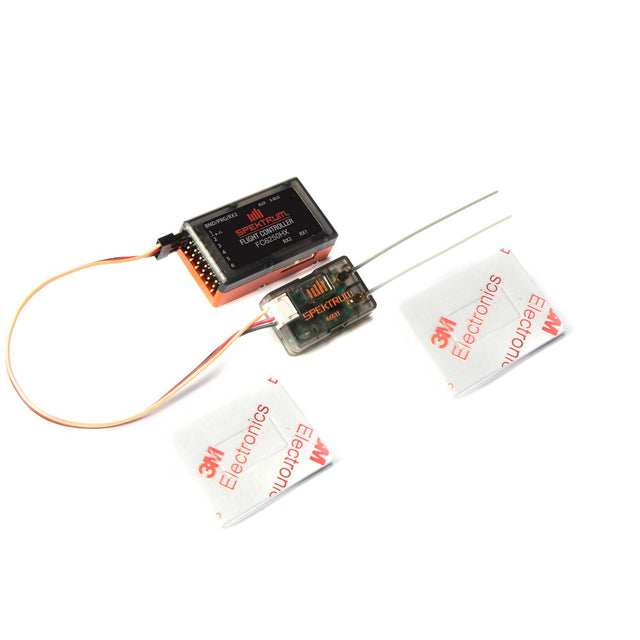

FC6250HX Helicopter Flybarless Control System

Spektrum FC6250HX Helicopter Flybarless Control System

Advanced flybarless controller with AS3X, SAFE and Spektrum Forward Programming

The Spektrum FC6250HX is an advanced flybarless control system for RC helicopters, from smaller models all the way up to 700+ size. The system combines a 6-axis MEMS gyro with a powerful 32-bit ARM M4 Cortex processor and Spektrum's advanced flight control algorithms.

The FC6250HX is designed for precise, stable flight and can be used for 3D flying, F3C precision flying and scale models, among other things. The system offers AS3X stabilisation as well as SAFE technology with features such as automatic self-levelling and Panic Recovery.

With Spektrum Forward Programming, setup and fine-tuning can be done directly from a compatible Spektrum transmitter. This covers the swashplate, tail rotor, SAFE settings and flight modes, among other things, so you do not need a separate computer for the normal setup.

Features

• Flybarless control system for RC helicopters
• Suitable for models from mini size up to 700+ size
• Suitable for 3D, F3C precision flying and scale helicopters
• 6-axis MEMS inertial gyro
• 32-bit ARM M4 Cortex processor
• Advanced AS3X stabilisation
• SAFE technology with programmable flight modes
• Automatic self-levelling with a compatible SAFE setup
• Panic Recovery can quickly bring the helicopter back to a controllable, almost level attitude
• Precise tail control and piro compensation
• Designed to handle vibration effectively
• CNC-machined case
• Damping mounting pads included

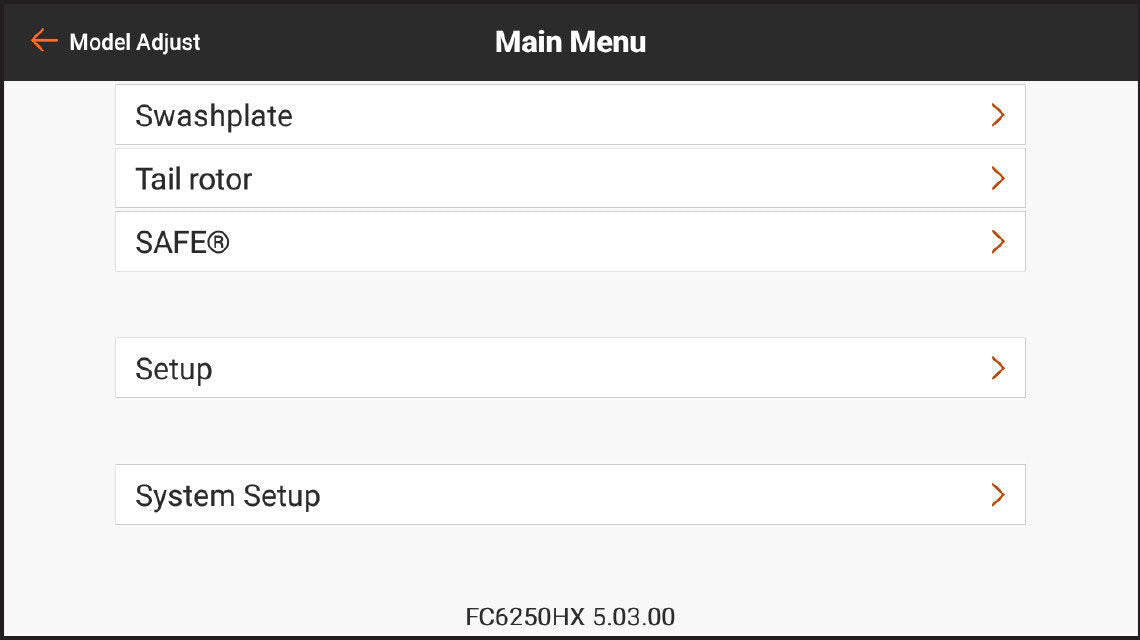

Spektrum Forward Programming

• Setup directly from a compatible Spektrum transmitter
• Swashplate adjustment
• Tail rotor adjustment
• SAFE setup and adjustment
• Flight mode configuration
• Sensor calibration, for example after a repair or crash
• No separate programming unit or computer needed for the normal setup

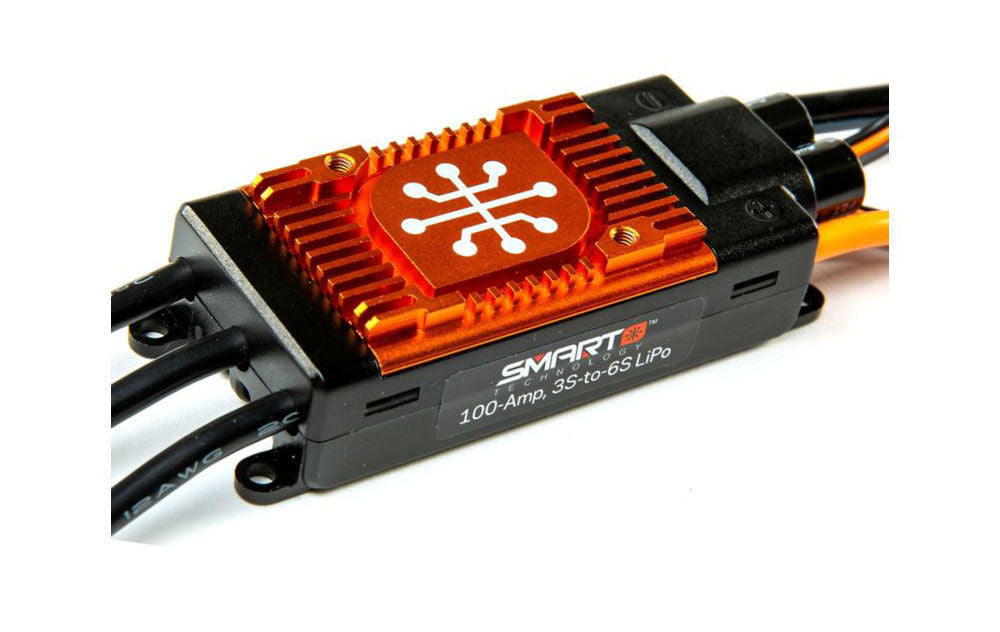

Smart ESC telemetry

Together with a compatible Spektrum Smart ESC, the FC6250HX can send telemetry data directly to a compatible Spektrum transmitter. Depending on the rest of your setup, you can monitor voltage, current draw and rotor speed, among other things, and use the data for logging and alerts.

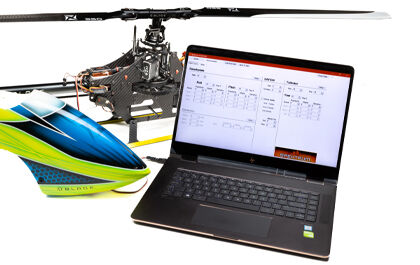

PC programming

The FC6250HX can also be configured with the Spektrum PC Programmer. Here you can manage, export and import settings, which makes it easier to save or share complete model setups.

What you need

• Compatible RC helicopter and other electronics
• Compatible Spektrum transmitter for Forward Programming
• Spektrum USB Programming Cable SPMA3065 if you want to use the PC Programmer
• Spektrum Smart ESC if you want the Smart ESC telemetry functions described above
