Firma 100 Amp BL Smart ESC+ Motor Combo: No-Prep

Spektrum Firma 100 A Smart ESC + 6500 Kv motor – No-Prep drag combo, 1/10

For 1/10 drag and speed run cars on 2S. This combo is pre-tuned for drag racing: a Firma 100 A Smart ESC and a high-RPM sensorless 6500 Kv brushless motor, ready to drop straight into most drag kits and RTR models such as the Losi 22S No Prep Drag Car Roller. Waterproof system, no soldering – and real-time telemetry without extra accessories, so you can tune your setup for faster runs.

The motor has a large 4-pole rotor with 8 magnets, a CNC-machined aluminium can, insulated high-purity copper windings, a 3.175 mm (1/8") alloy steel shaft and precision bearings. 4 mm gold-plated bullet connectors are fitted at the factory. And if you have a newer Spektrum computer transmitter, you can adjust all ESC parameters directly from the transmitter via the Firma Prog menu – no box, no Bluetooth.

Features

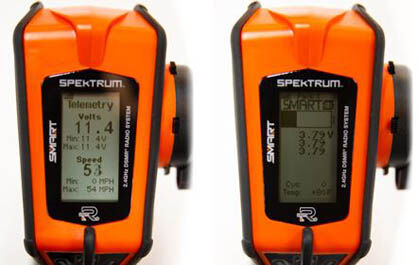

• Smart all-in-one telemetry: RPM, voltage, temperature, balance, capacity and speed via a single wire
• High-RPM motor and ESC, pre-tuned for drag racing
• Fast 32-bit ARM M4 processor; waterproof system

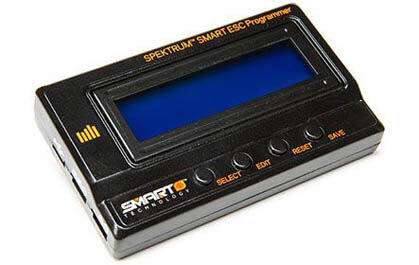

• Programming via Smart ESC Programming Box, SmartLink USB app or Text Gen on the transmitter
• Protection against overcurrent, LiPo undervoltage (automatic cut-off), overheating and signal loss
• Aluminium heat sink and included fan (optional mounting)
• Ready to install without soldering; heat-resistant IC connectors, backwards compatible with EC
• Limited 1-year warranty

Specifications

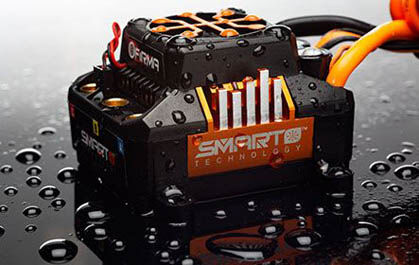

• ESC: Firma 100 A Smart

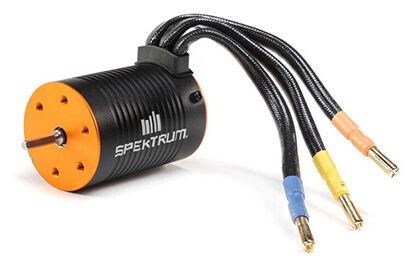

• Motor: Firma 6500 Kv sensorless brushless, 4-pole, 8 magnets
• Battery: 2S LiPo
• Motor shaft: 3.175 mm (1/8")
• Connector: 4 mm gold-plated bullet connectors
• Scale: 1/10

What's in the box

• Firma 100 A Smart ESC
• Firma 6500 Kv sensorless brushless motor
• Fan (optional)
