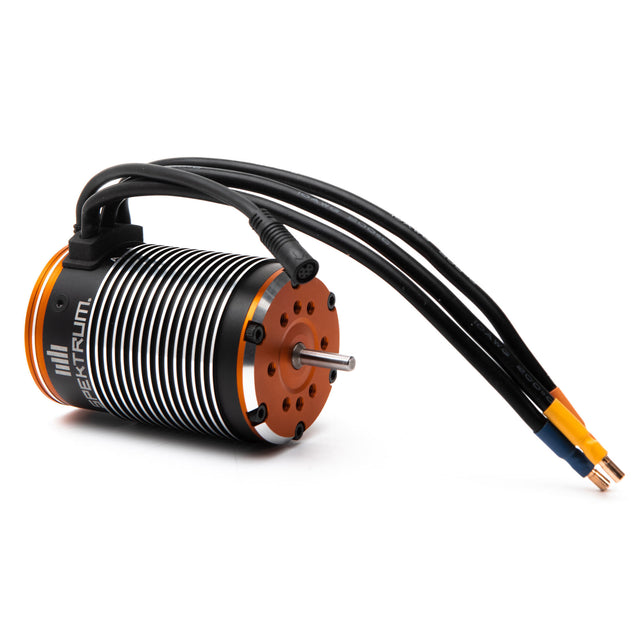

FIRMA 1200Kv 1/6 BL Sensored Crawler Motor

Spektrum Firma 1200 Kv sensored crawler motor – 1/6 (5684)

Giant-scale crawlers, rock racers and trailers place big demands on the motor. The Firma 1200 Kv is a large 5684 motor selected for the Axial SCX6 platform, giving you maximum power and realism on 2-4S LiPo.

The rotor is a 4-pole sintered rotor with 8 magnets and low cogging, the can is CNC-machined aluminium, the windings are insulated high-purity copper, and the shaft is 5 mm hardened steel on precision bearings. A magnetic encoder inside the motor makes sure the signals from the three phases always match the rotor position – when installing, you simply match the wire colours to the ESC's connectors.

Features

• Large 5684 size for giant-scale crawlers and scalers
• FOC (Field-Oriented Control)
• 4-pole sintered rotor with 8 magnets – low cogging
• Polarity protection via magnetic encoder – precise signals, easy connection
• 3.5 mm gold-plated bullet connectors, pre-installed
• Waterproof sensor wire with locking connector and seal
• Precision ball bearings and 5 mm hardened steel shaft

Specifications

• Kv: 1200
• Size: 5684
• Battery: 2-4S LiPo
• Shaft: 5 mm hardened steel
• Scale: 1/6

What you need

• Spektrum Firma 120 A sensored brushless Smart crawler ESC (required)
