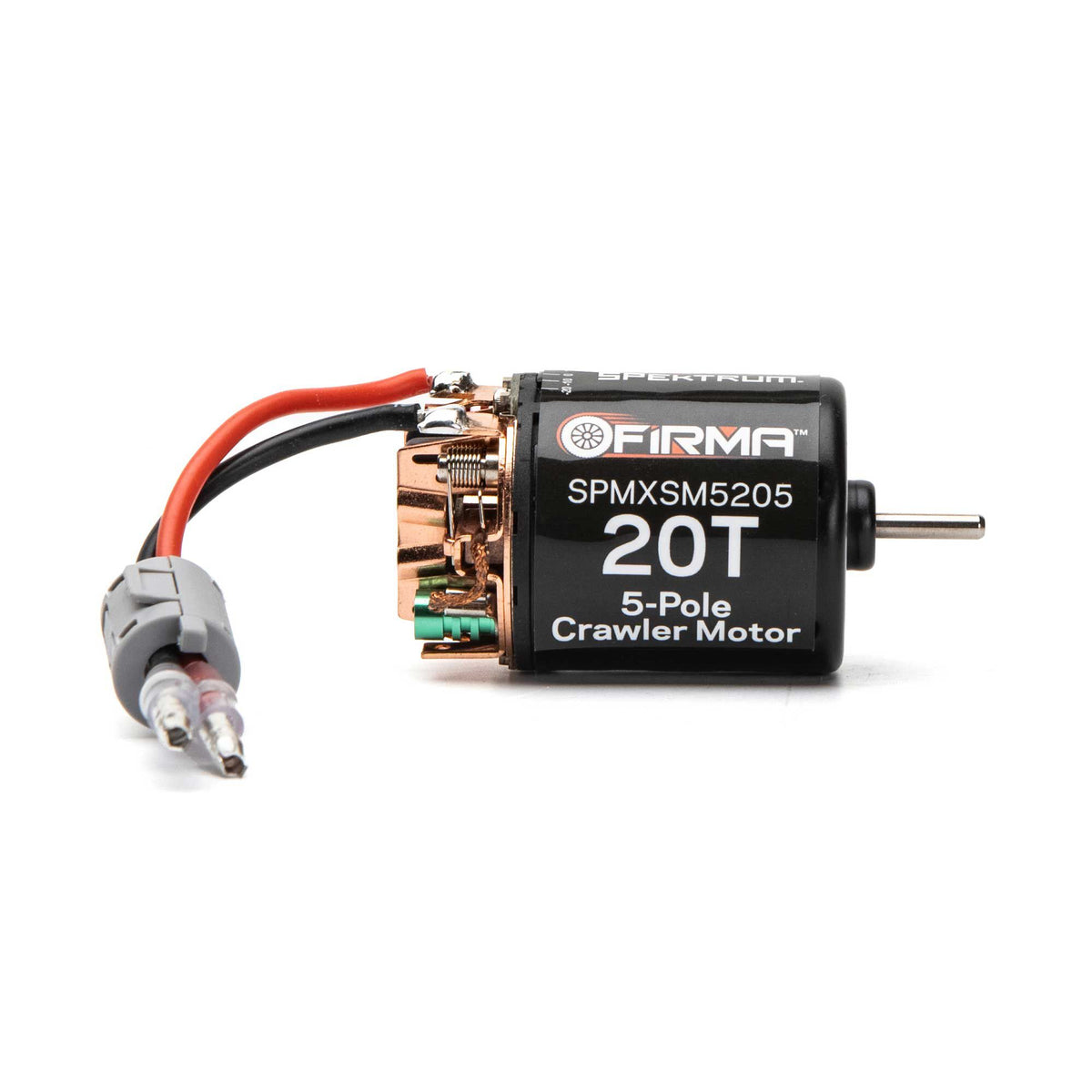

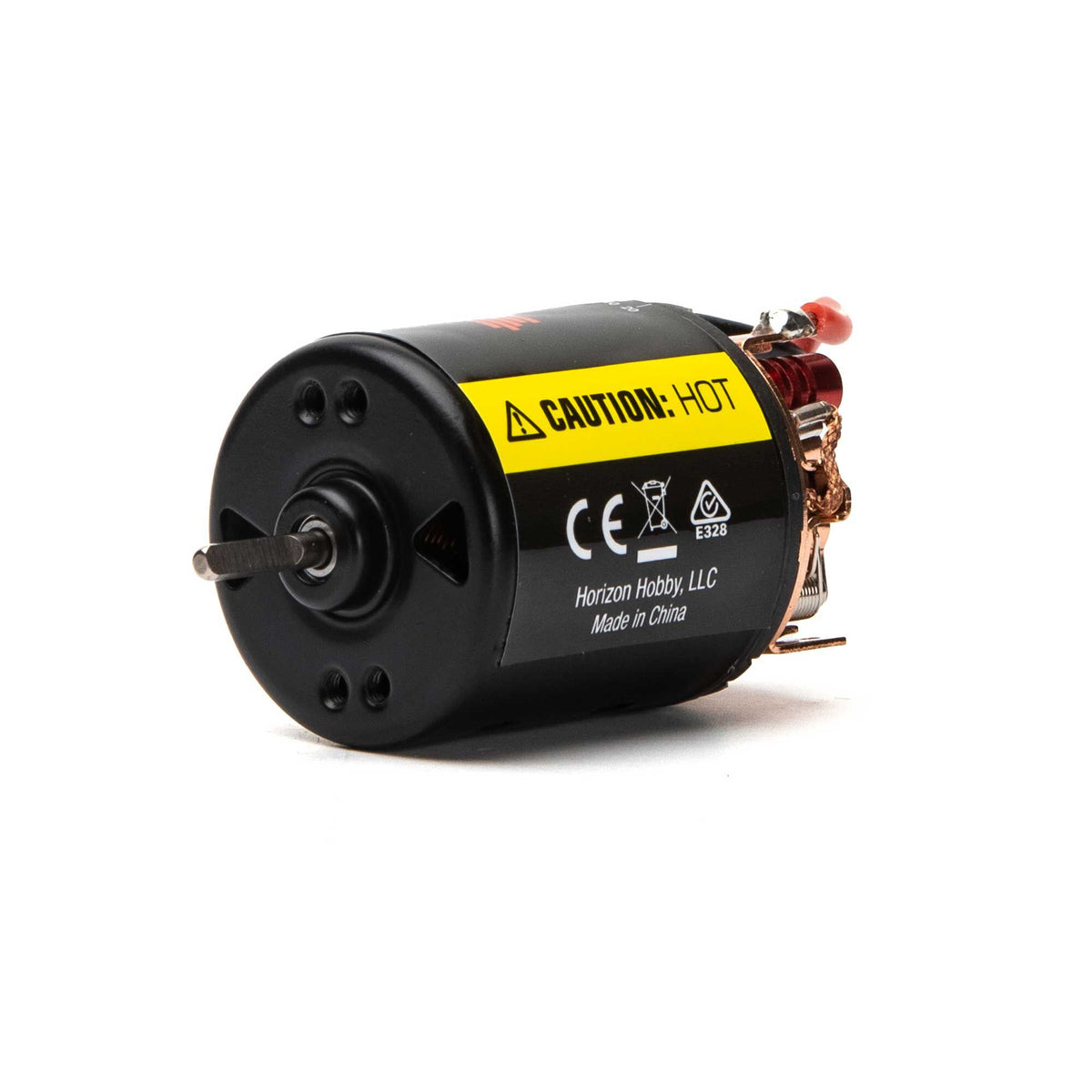

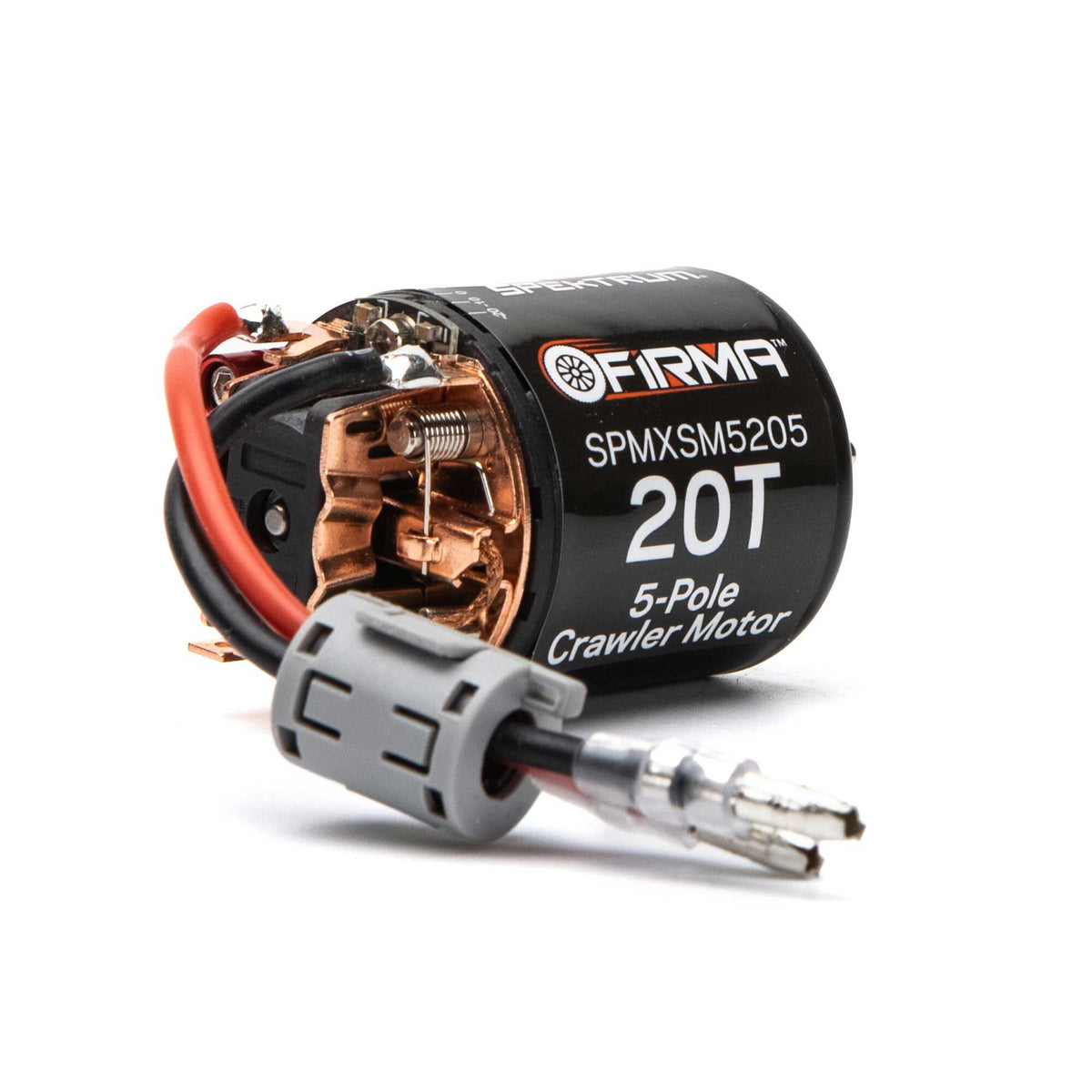

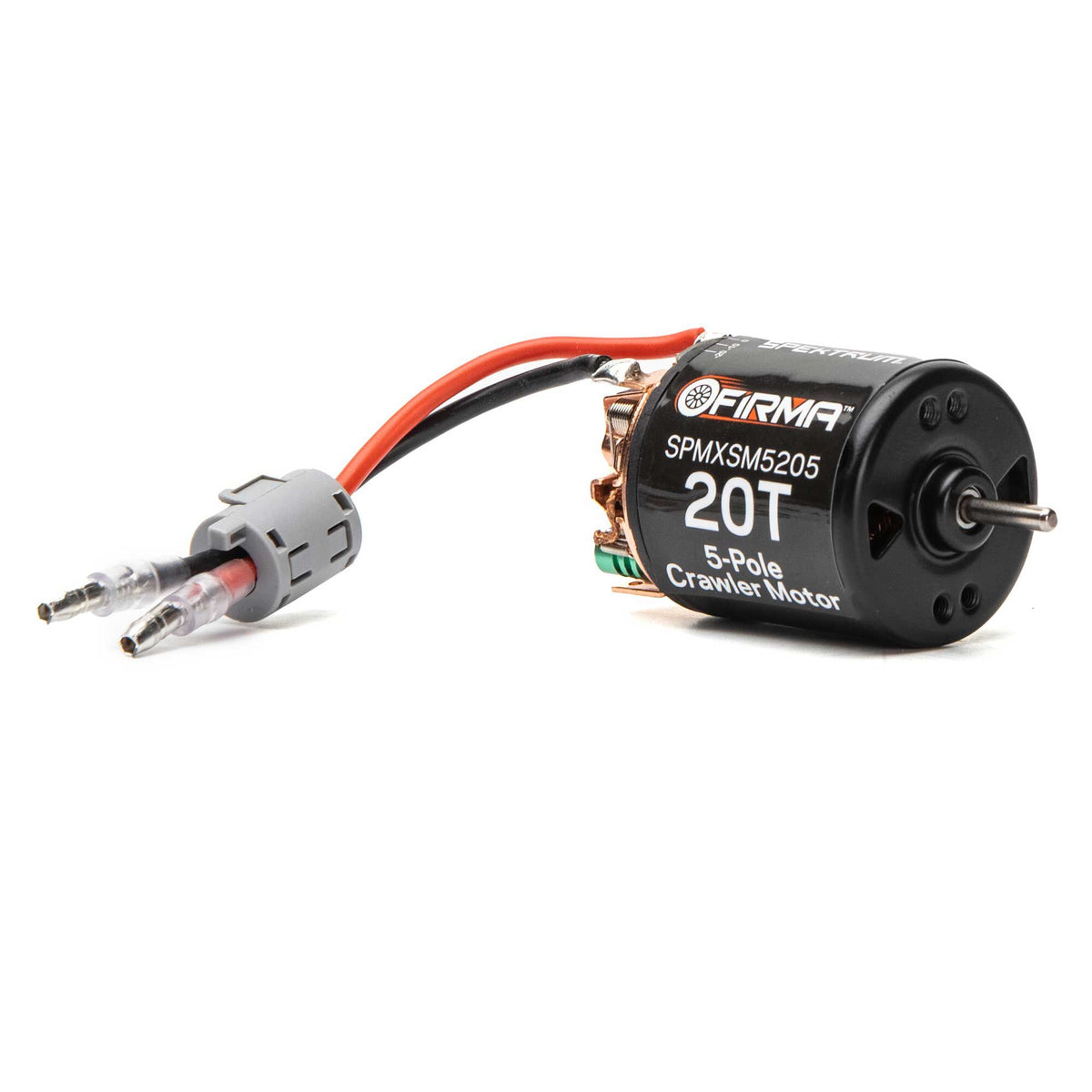

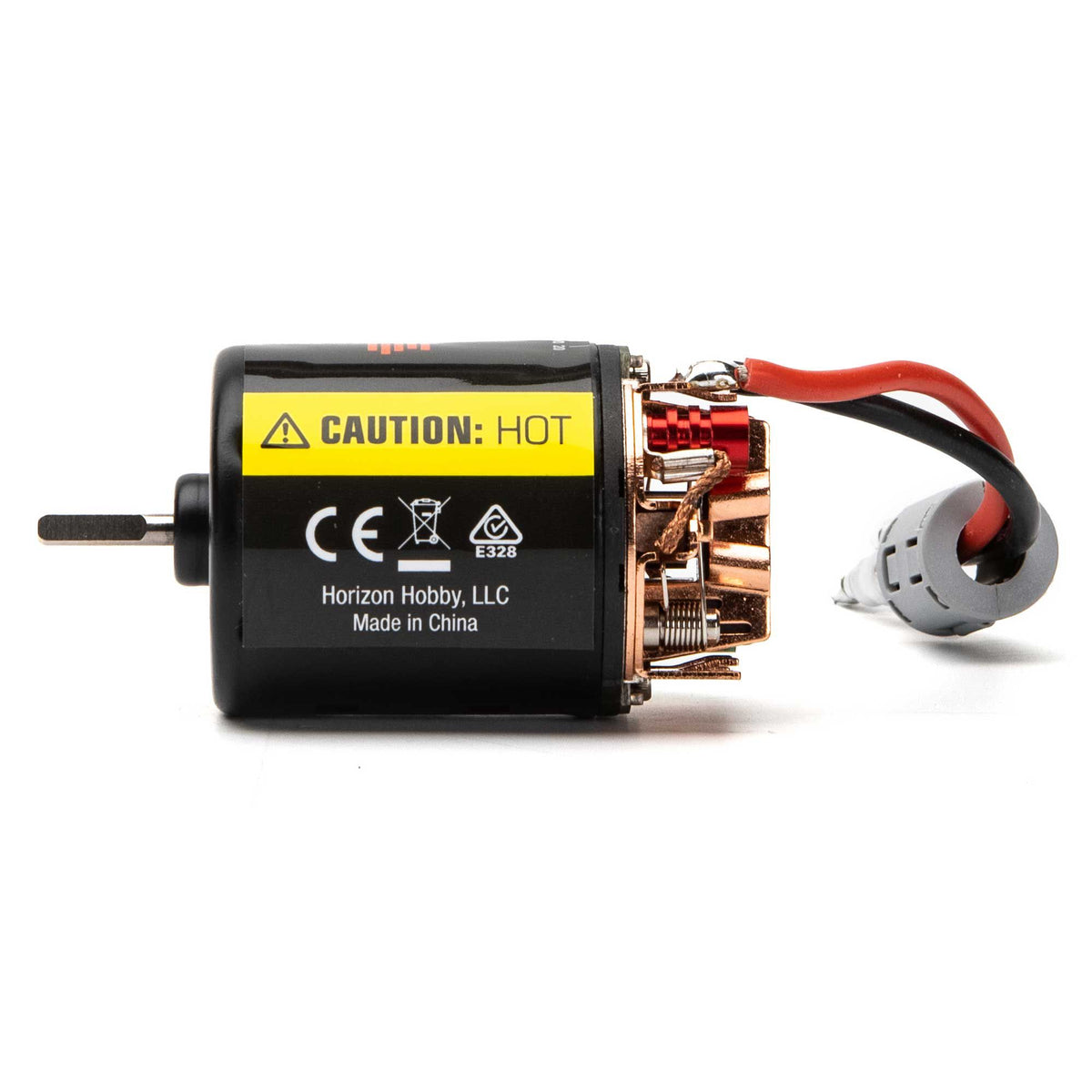

Firma 20T Rebuildable 5 Pole Brushed Crawler Motor

Spektrum Firma 20T Rebuildable 5-Pole Brushed Crawler Motor

The next level of low-speed control at a low price. The Firma 20T is a 5-pole brushed motor for 1/10 crawlers and scalers with a brushed ESC: the 5-pole design gives half the speed of a comparable 3-pole motor and noticeably smoother throttle control at low speed – plus impressive torque from the bottom end and high efficiency.

Timing can be adjusted from 0 to 20 degrees in both directions of rotation, the brushes are pre-shaped so no break-in is needed, and wires and 3.5 mm bullet connectors are fitted. Fully rebuildable with an easily accessible commutator and replaceable brushes, springs and bearings – so it will last for many years.

Features

• 5-pole design – smooth throttle control at low speed and high efficiency
• Adjustable timing 0-20° in both directions of rotation
• 540 size – fits most 1/10 cars
• Pre-shaped brushes – no break-in
• Wires and 3.5 mm bullet connectors fitted – no soldering
• Dual rubber-sealed bearings
• Fully rebuildable: brushes, springs and bearings can be replaced

Specifications

• Turns: 20T
• Poles: 5
• Size: 540
• Battery: 2S LiPo / 6-cell NiMH recommended
• Scale: 1/10
