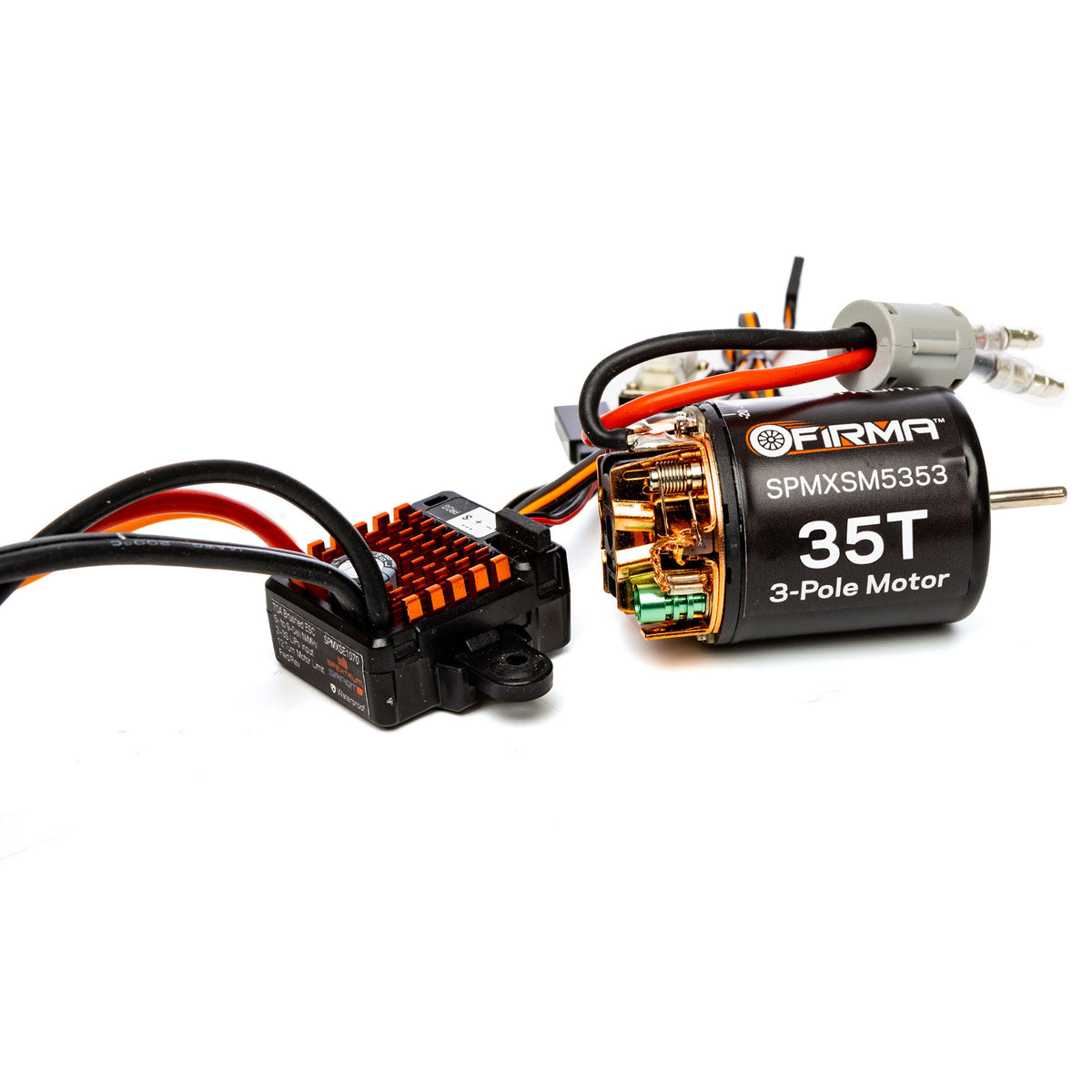

FIRMA 70A BR Smart ESC/35T Brushed Motor Combo

Spektrum Firma 70 A brushed Smart ESC + 35T motor combo – 1/10 crawler

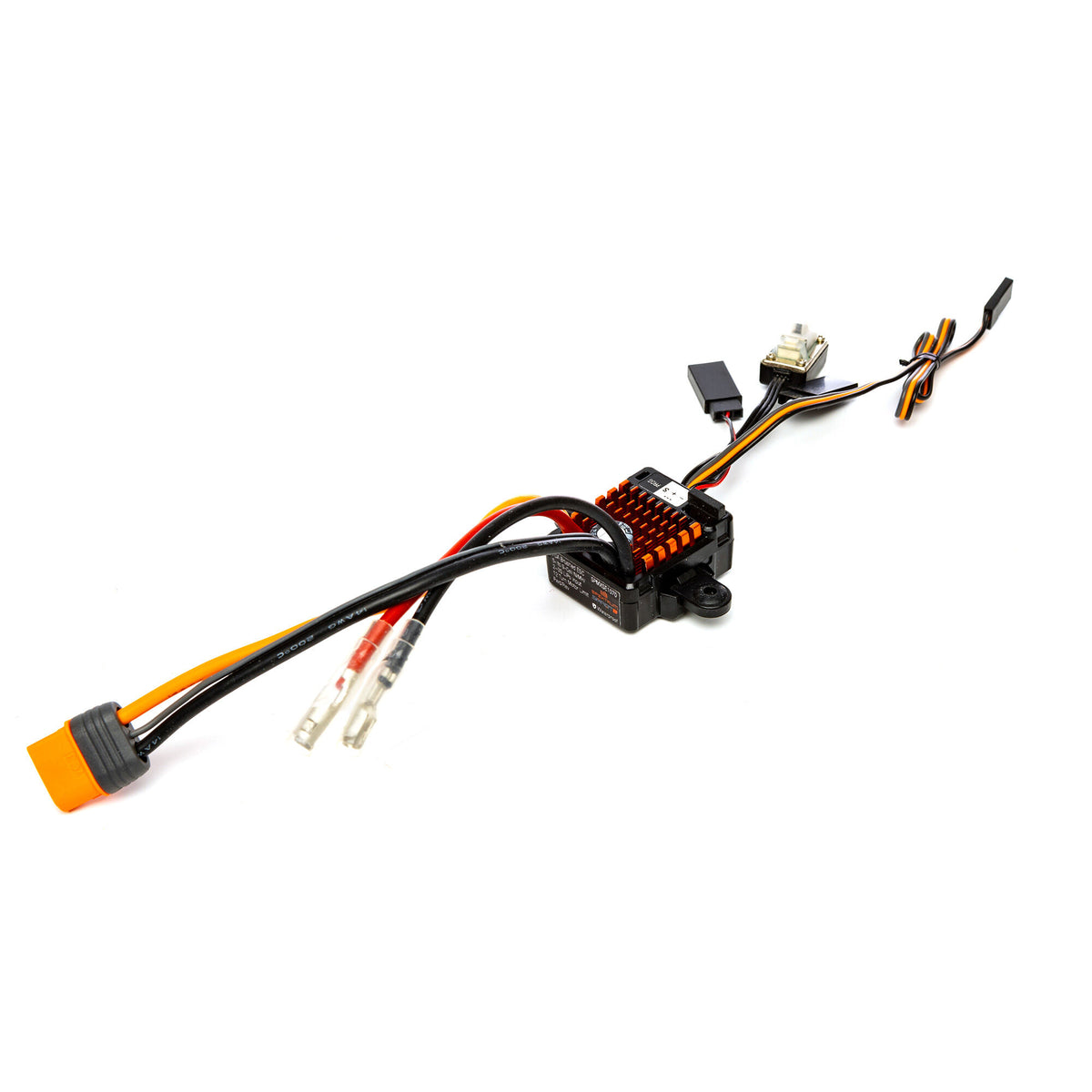

For 1/10 scalers and rock crawlers that need brushed torque with a Smart brain. The Firma 70 A is a waterproof brushed Smart ESC that sends battery data, input voltage, ESC temperature and Text Gen telemetry to the transmitter via a single wire – no extra sensors. The settings are easy to adjust both at home and on the trail.

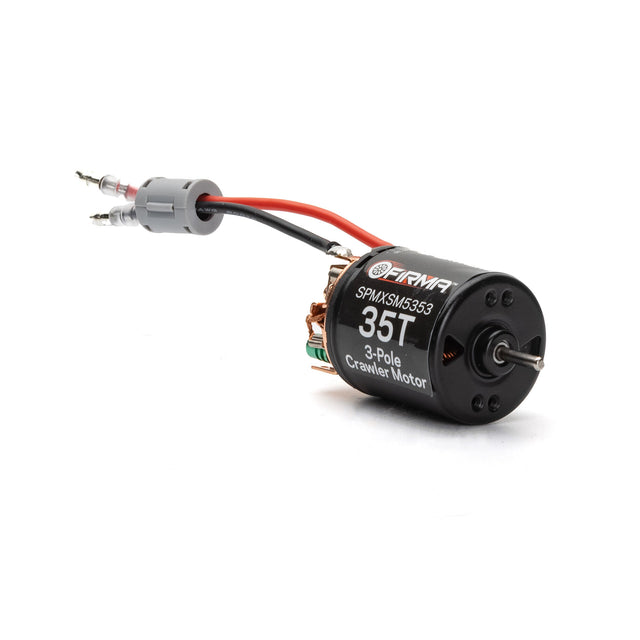

The motor is Spektrum's 35T 3-pole brushed motor in 540 size: fully rebuildable, adjustable timing in both directions of rotation, ball-bearing rotor and pre-formed brushes with no running-in. Wires and 3.5 mm bullet connectors are fitted – no soldering. Pro-class drag brake with fine adjustment of percentage and rate, and built-in LED outputs with two light strings (red and white) in the package – the lights come on without using extra receiver ports.

Features

• Smart all-in-one telemetry via a single wire; full Smart functionality
• 70 A continuous – for 1/10 crawlers and scalers as well as on-road/off-road racing; 2S-3S LiPo
• Waterproof ESC (see the manual for guidelines)
• Pro-class drag brake with fine adjustment of percentage and rate
• Built-in LED outputs; 2 LED light strings (red and white) included
• Programming via Smart ESC Programming Box, SmartLink USB app or Text Gen on the transmitter
• Protection against overcurrent, LiPo low voltage (automatic cutoff), overheating and signal loss
• Aluminium heat sink; adjustable BEC: 6 V or 7.4 V, 4 A
• Ready to install without soldering; IC connectors, backwards compatible with EC
• Limited 1-year warranty

Specifications

• ESC: Firma 70 A brushed Smart, 2S-3S
• Motor: Spektrum 35T 3-pole brushed, 540, rebuildable, adjustable timing
• BEC: 6 V / 7.4 V, 4 A
• Scale: 1/10

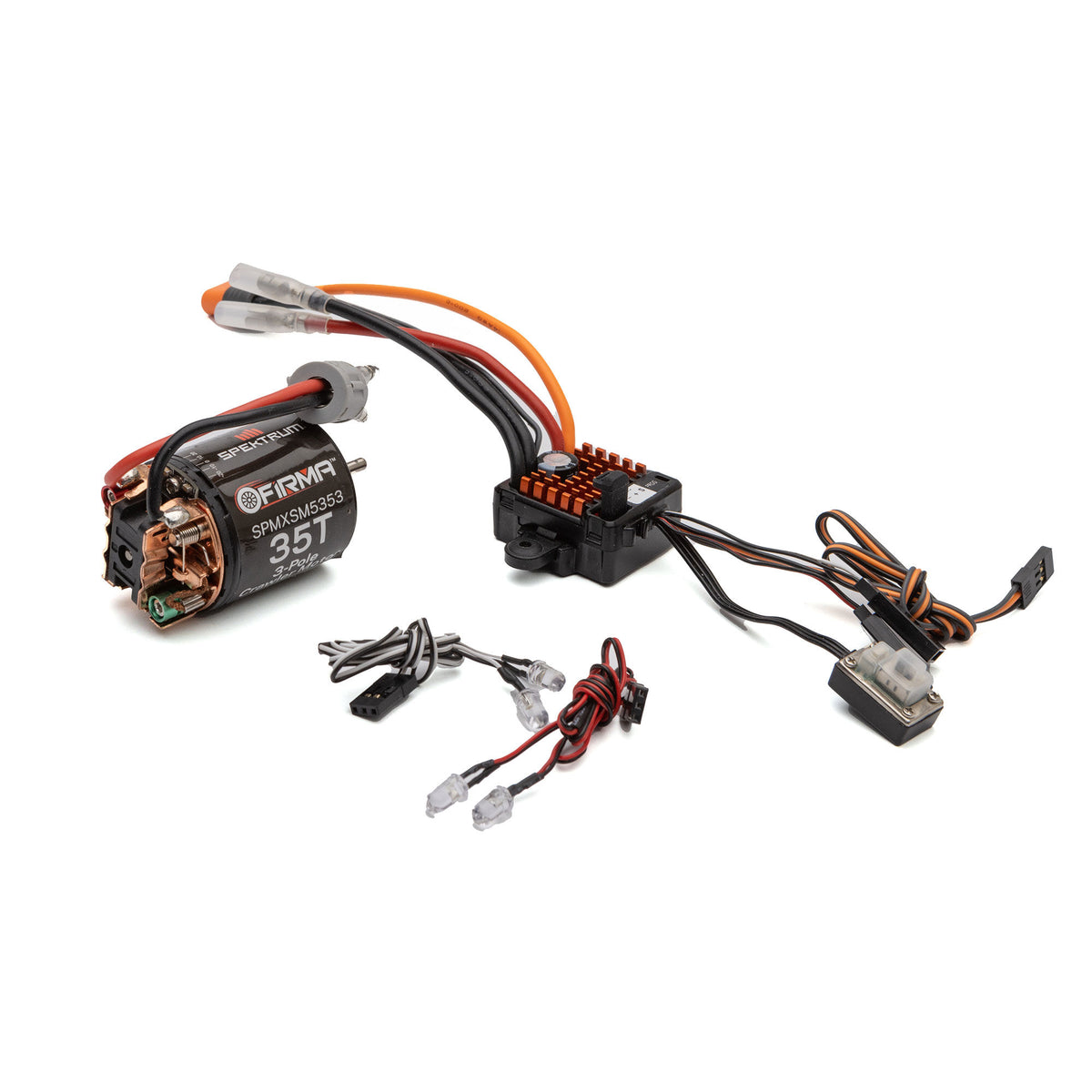

What's in the box

• Firma 70 A brushed Smart ESC
• Spektrum 35T brushed motor with wires and 3.5 mm bullet connectors
• 2 LED light strings (red and white)
