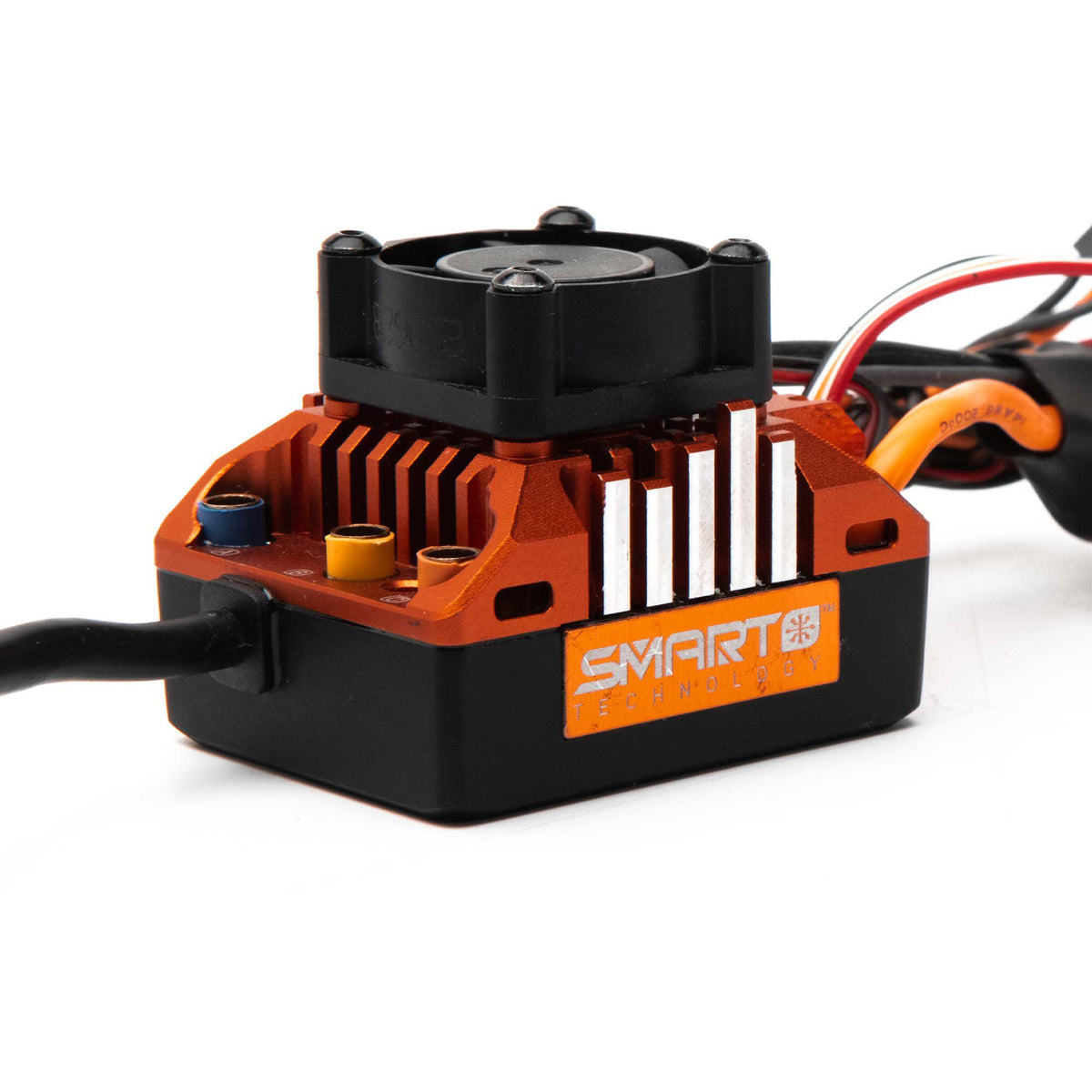

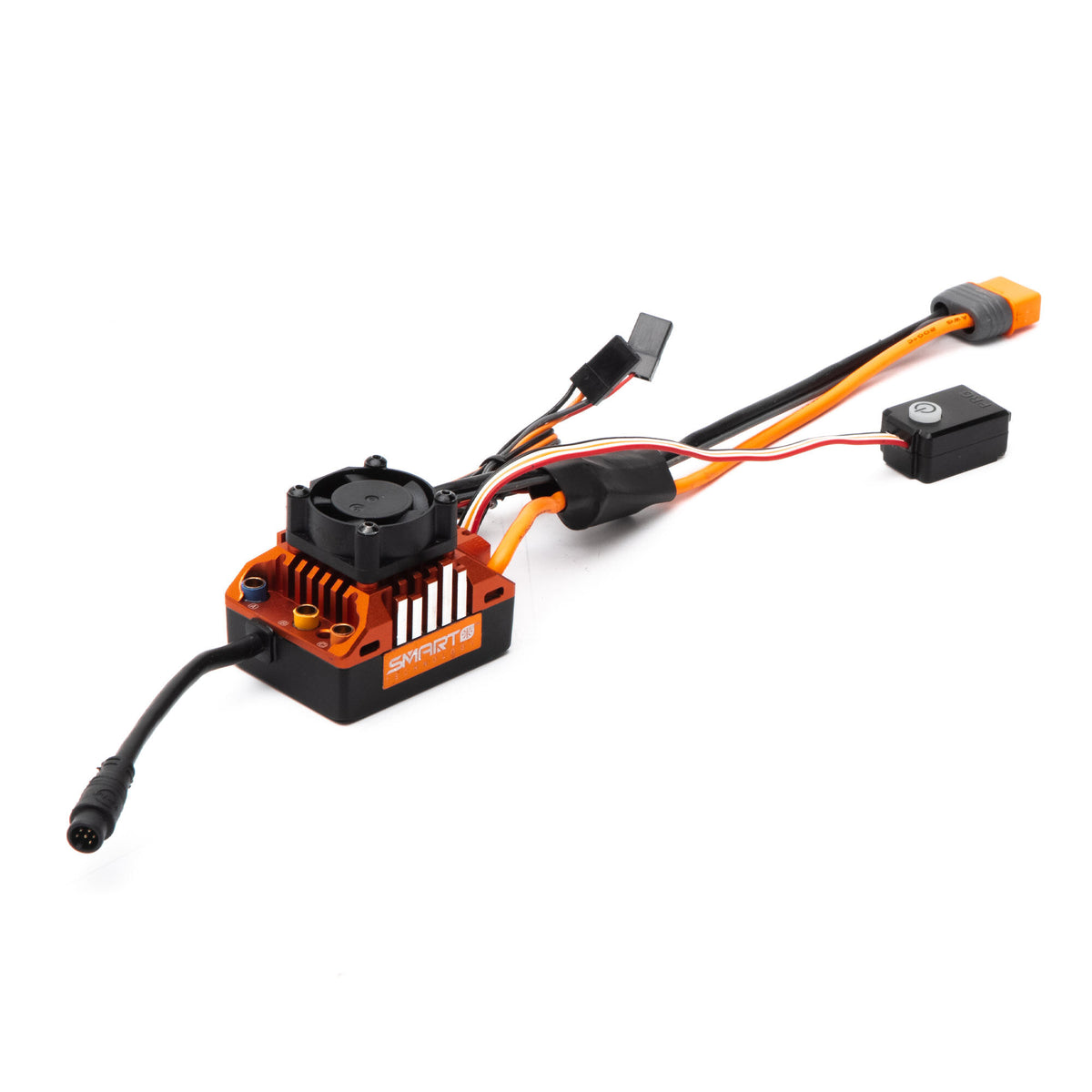

Firma Crawler 120A Sensored BL Smart ESC

Spektrum Firma Crawler 120 A sensored Smart ESC – for 1/6 crawlers

Built for the big ones: the Firma 120 A is a sensored Smart speed controller for 1/6 crawlers and scalers such as the Axial SCX6 – and for extremely heavy crawlers in general. A magnetic encoder and rotor position sensor give a 1-to-1 throttle feel at any speed and angle, and the closed-loop control maintains torque and RPM even when the surface changes from dry to wet or loose.

The drag brake is pro-level: up to 200 % braking force, so the vehicle stays put on almost any slope, regardless of drivetrain and weight. And because sensored control only uses the current you ask for, the battery lasts noticeably longer than with comparable sensorless systems. Fully waterproof – dust, gravel, snow and water will not stop it.

Features

• 120 A for giant-scale and extremely heavy crawlers, 2S-4S LiPo
• FOC (Field-Oriented Control) and RPM/throttle matching

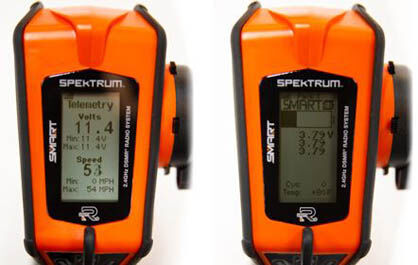

• Smart all-in-one telemetry: RPM, voltage, temperature, balance, capacity and speed over a single wire
• Programming from the transmitter via Text Gen telemetry, Smart ESC Programming Box (V2 required) or SmartLink USB app
• Fast 32-bit ARM M4 processor

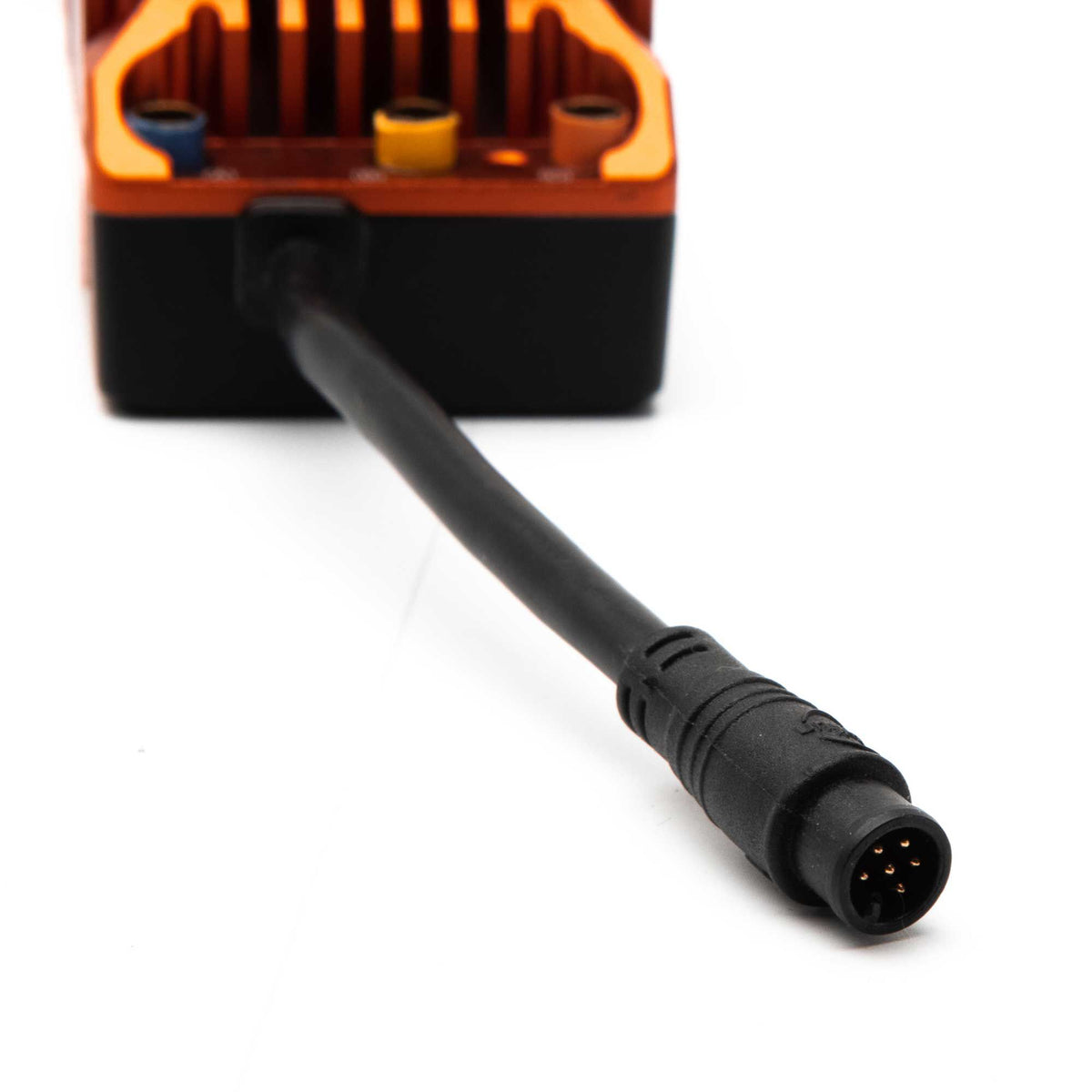

• Waterproof ESC and waterproof sensor wire with locking connector and seal
• Protection against overcurrent, LiPo low voltage (automatic cutoff), overheating and signal loss

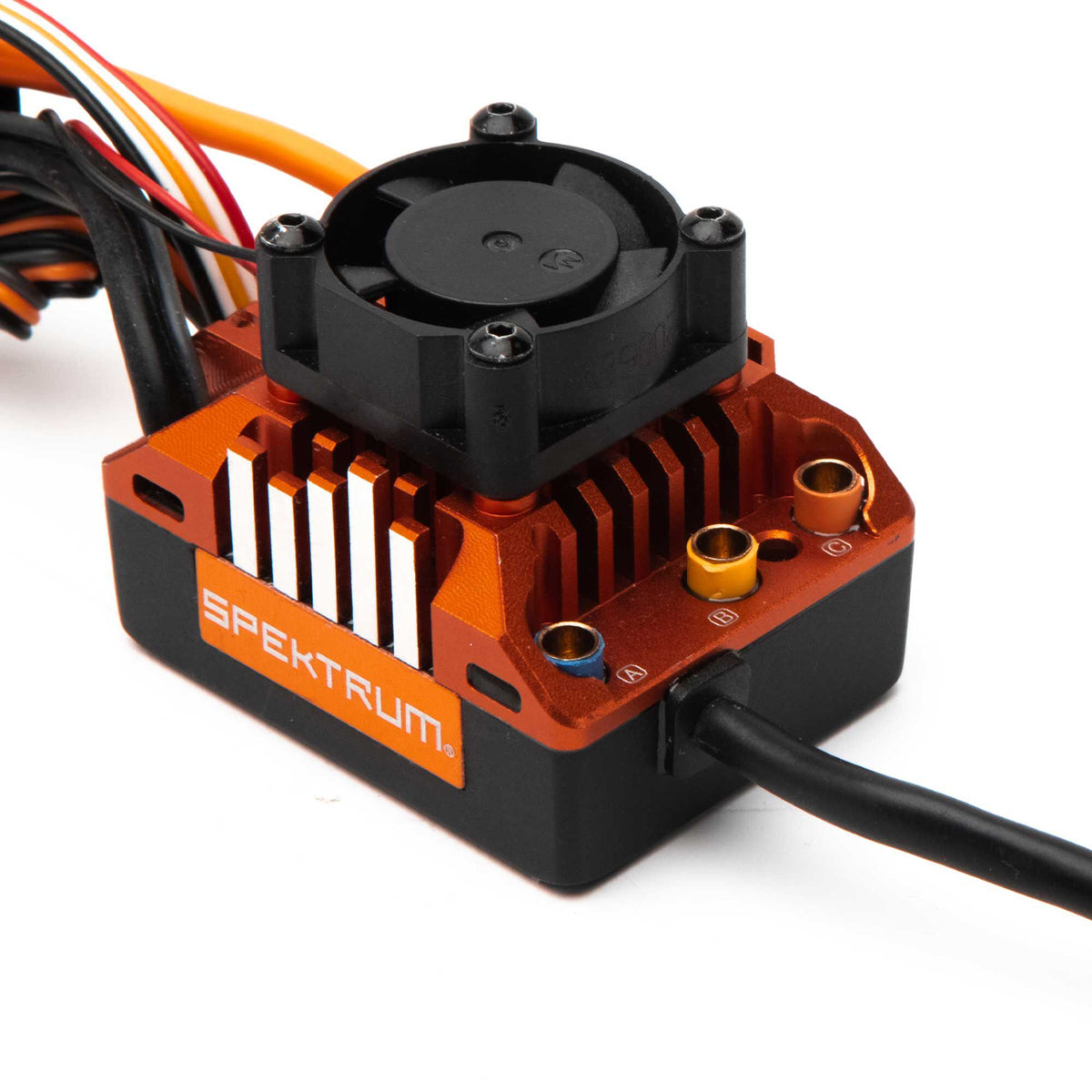

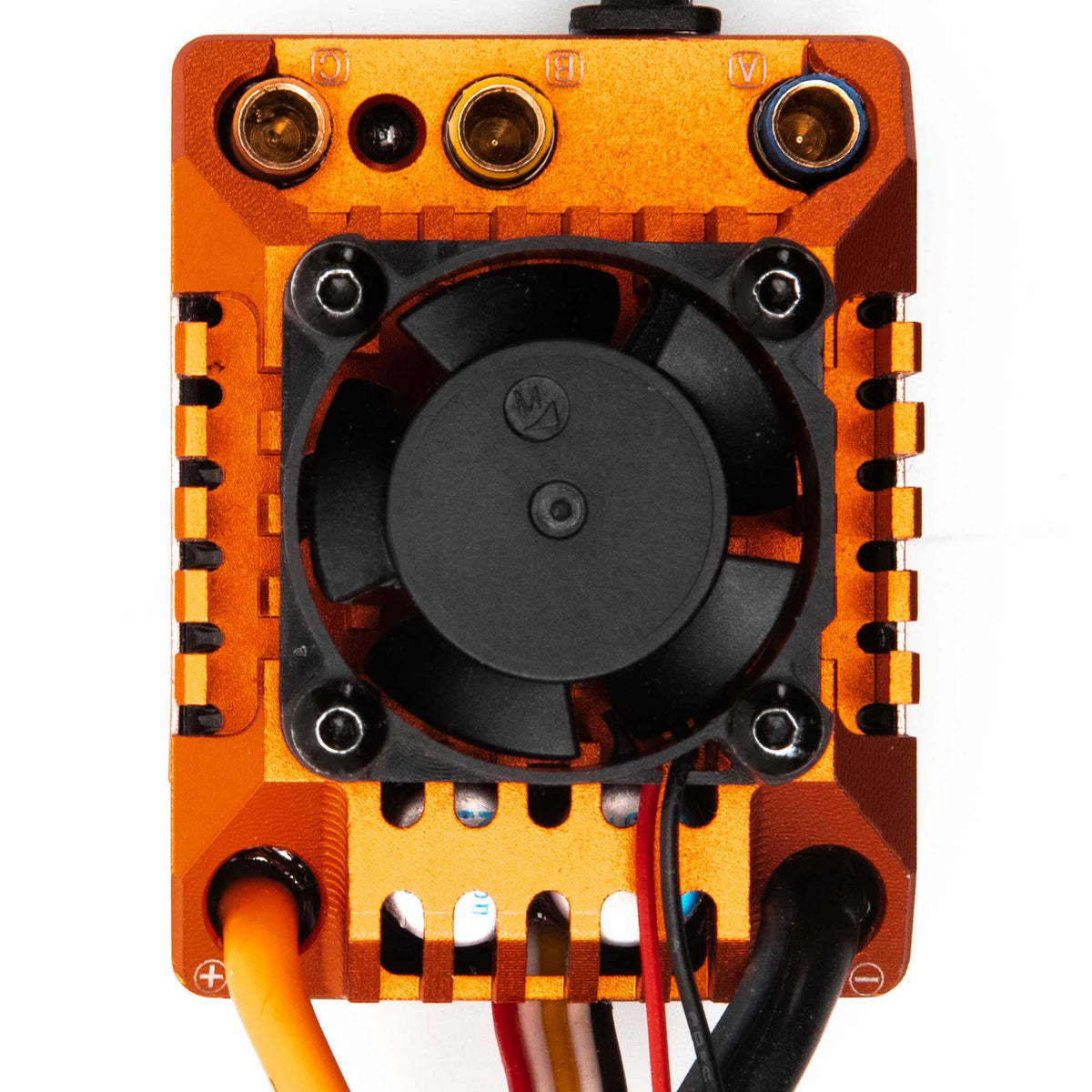

• Aluminium heatsink and included fan (optional fitting)
• Adjustable high-power BEC: 6 V or 7.4 V

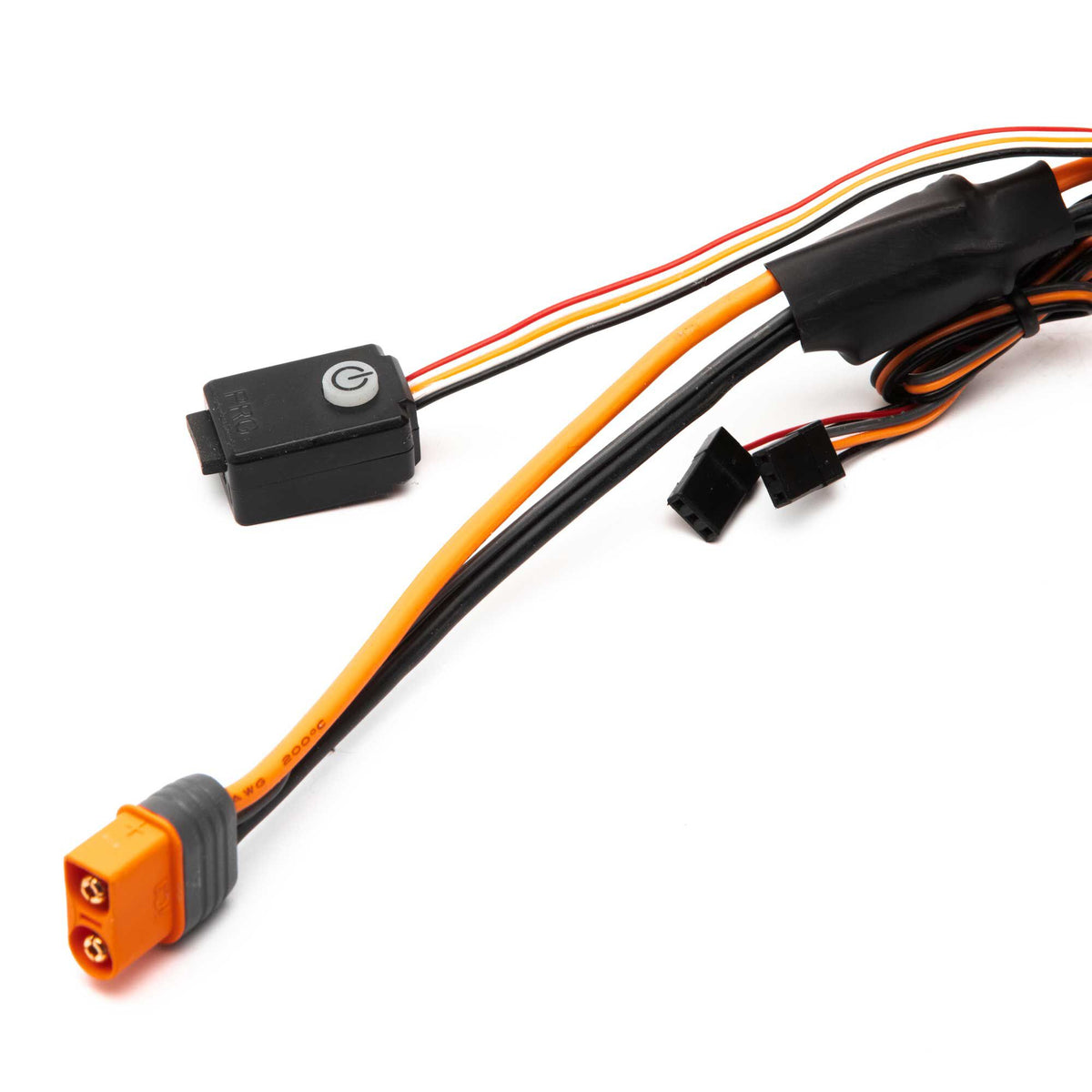

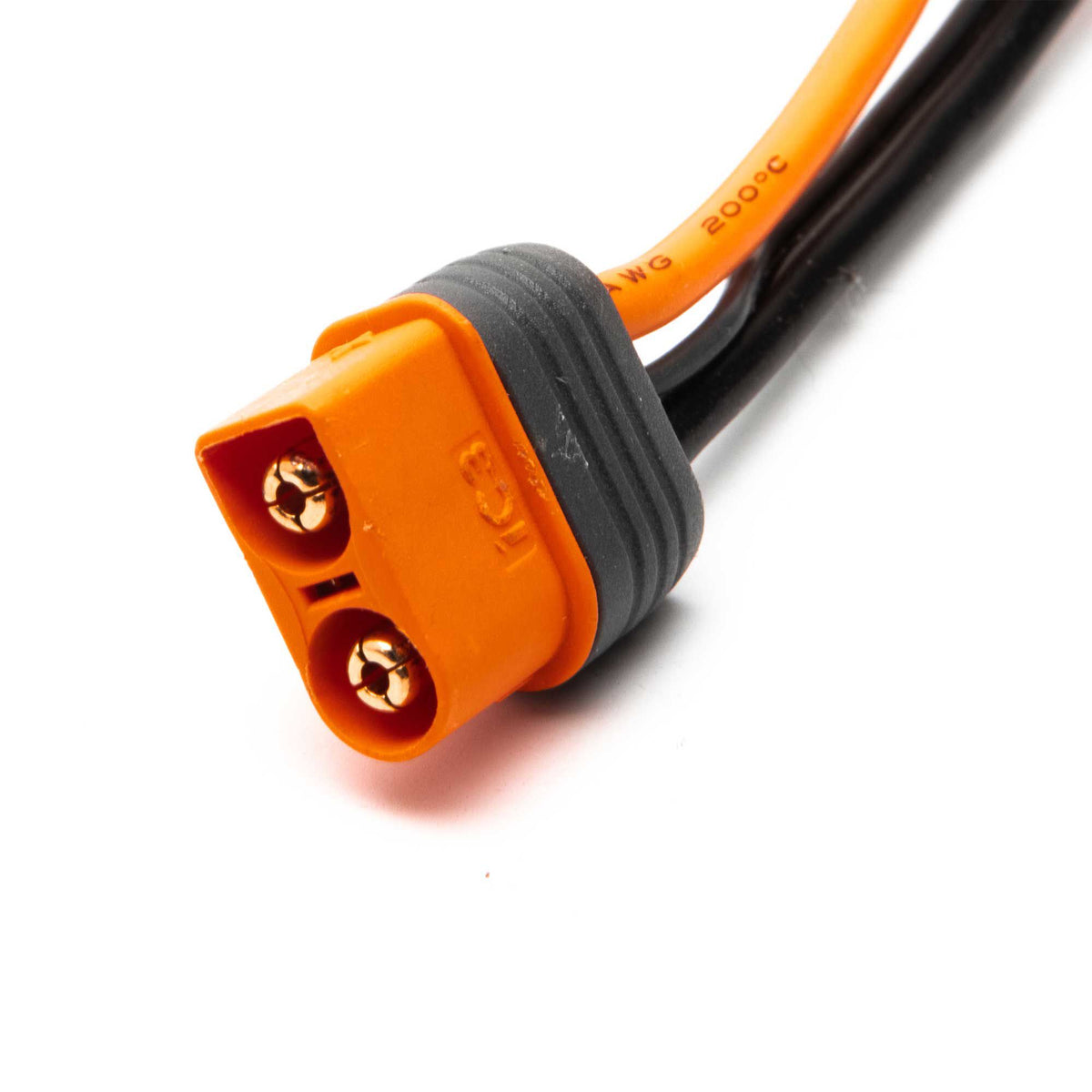

• Ready to install with no soldering; heat-resistant IC connectors, backwards compatible with EC
• Limited 1-year warranty

Specifications

• Current: 120 A
• Battery: 2S-4S LiPo
• BEC: 6 V / 7.4 V, adjustable
• Drag brake: up to 200 %
