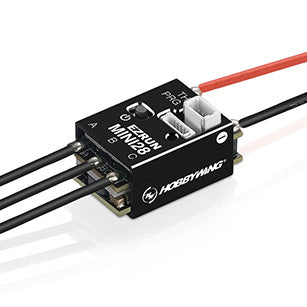

Hobbywing 30101300 - EzRun MINI28 30A 2S ESC 1/28

Hobbywing EzRun MINI28 30A sensored ESC, 2S, 1/28

The EzRun MINI28 is built specifically for 1/28 racing, with new programmable parameters optimised for competition. It is extremely small (22x14mm) and light (5g), and its shape makes it easy to solder. Throttle frequency, brake frequency and initial throttle force are adjustable, giving you precise control over drive and braking.

The metal heatsink case keeps the temperature healthy while the current can reach up to 30A. There are two modes: zero-timing (blinky) and modified, where you can add extra turbo timing in the software. The built-in BEC delivers up to 3.5A at 6 V or 7.4 V, and with Hobbywing's OTA Bluetooth module and the HOBBYWING app you can set it up and update it from your phone.

Features

• Small and light
• Dedicated program for 1/28 mini racing
• Two modes: blinky and modified
• Built-in BEC up to 3.5A, 6 V/7.4 V
• Protection against low voltage, overheating and throttle signal loss
• Setup via LCD G2 program box or OTA programmer
• Firmware updates

Specifications

• Multiple protection functions: low battery voltage protection, ESC overheat protection, fail-safe protection (throttle signal loss protection).

Specifications, ESC

• Type: 1/28, Brushless, Sensored ESC
• Waterproof: no
• Continuous/peak current: 30 A/80 A
• Input voltage: 2S Lipo
• BEC output: 6 V/7.4 V @ Max 3.5 A
• Input wires: 20 AWG-55 mm
• Output wires: 22 AWG-80 mm
• Dimensions: 22.7x14.2x11.8 mm
• Weight: 5 g (without wires)
• Firmware update: supported

ESC programming

• SET button on ESC: not supported
• LED program box: not supported
• LCD G2 program box: supported
• OTA programmer: supported
• Programming port: Throttle wire
• Extreme values: supported
• Real-time data: not supported
• Historical data (graph): not supported
• Motors: EzRun 1626SD
• Vehicles: 1/28 & 1/27

Please note: The LCD G2 program box and OTA programmer are sold separately.
