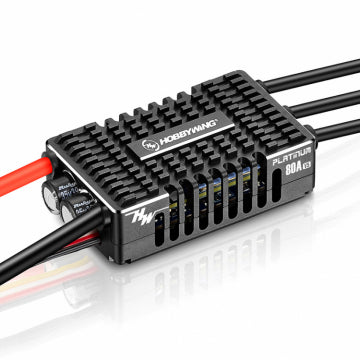

Hobbywing 30203201 - Platinum 80A ESC 3-8S V5

Hobbywing Platinum 80A V5 SBEC ESC, 3-8S

The Platinum 80A V5 uses the cooling structure from the Platinum V5 with a double-sided hollow design and side window, so the air from the fan carries heat away from the circuit board efficiently. The powerful 12 V switch-mode BEC has reverse polarity protection, so it can run in parallel with external batteries for double safety. It suits 325-420 class electric helicopters and fixed-wing aircraft.

The 32-bit processor and the algorithm for precise RPM make it more powerful and stable than its predecessor, the governor sensitivity can be adjusted, and it supports telemetry to Mikado VBar and Futaba S.BUS2.

Features

• Compact with an efficient double-sided hollow cooling design
• Built-in 12 V switch-mode BEC with reverse polarity protection
• 32-bit processor with algorithm for precise RPM
• Telemetry to Mikado VBar and Futaba S.BUS2
• Synchronous rectification (DEO): higher efficiency, longer run time, faster throttle response and lower temperature
• Start-up, current, temperature and overload protection
• Protection against throttle signal loss and abnormal input voltage

Specifications

• Continuous/peak current: 80 A/120 A
• Input voltage: 3-8S LiPo
• BEC output (switch-mode): 5-12 V & Cont. 8 A, Peak 20 A
• Input wires: 12 AWG-100 mm
• Output wires: 14 AWG-100 mm
• Input connector: none
• Output connector: 3.5 mm gold connectors (female)
• Firmware update: supported
• Telemetry: Mikado VBar; Futaba S.Bus2; etc.
• Dimensions: 60.5x33x17.6 mm (without fan)
• Application: 325-420 class electric helicopters (main blade length 325-420 mm) or fixed-wing aircraft

ESC programming

• Via transmitter: not supported
• LED program card: not supported
• LED program box: not supported
• LCD program box: supported
• OTA programmer: supported
• Program port: separate program port
