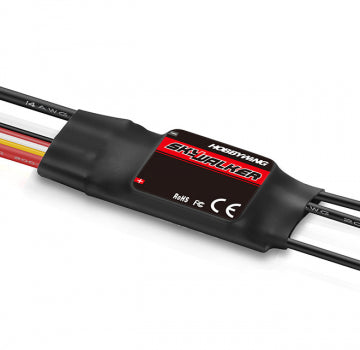

Hobbywing 30205200 - Skywalker 20A V2 ESC 2-3S 5V/3A

Hobbywing SkyWalker 20A V2 ESC for aeroplanes, 2-3S

The SkyWalker V2 has a 32-bit ARM M0 processor running at up to 96MHz that works with a wide range of brushless motors and handles up to 300,000 RPM (2-pole motor). DEO technology (active freewheeling) gives faster, smoother throttle response, better stability in flight, longer flight times and lower temperatures.

The reverse brake shortens the landing distance, and the search mode makes the motor beep so you can find the plane if it has landed somewhere hard to spot. A separate programming cable makes it easy to set up the ESC with the LED program box.

Features

• 32-bit ARM M0 processor up to 96MHz
• DEO/active freewheeling
• Normal and reverse brake
• Search mode with beeps
• Separate programming cable for LED program box
• Protection against start-up failure, overheating, capacitor overheating, overcurrent, overload, abnormal input voltage and throttle signal loss

Specifications

• Type: Brushless airplane ESC
• Continuous/peak current: 20 A/40 A
• Input: 2-3S LiPo
• BEC output (switch-mode): 5 V, 3 A
• Input wires: 16 AWG-100 mm
• Output wires: 18 AWG-75 mm
• Input connector: none
• Output connectors: 3.5 mm Gold Connectors (female)
• Firmware update: not supported
• Dimensions: 45x23x8 mm
• Weight: 19 g

ESC programming

• Via transmitter: supported
• LED program card: not supported
• LED program box: supported
• LCD program box: not supported
• WiFi module: not supported
• OTA programmer: not supported
• Programming port: Program Wire Firmware
