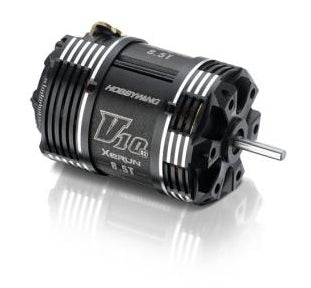

Hobbywing 30401111 - Motor XeRun V10 8.5T G3

Hobbywing XeRun V10 G3 8.5T sensored brushless motor

The XeRun V10 G3 is a sensored brushless motor built for top-level racing. Compared with the V10 G2 Stock, the KV and torque of the G3 Stock have been increased by 16% and 4% respectively, and the G3 Modified and Stock weigh only 161g and 132g, 11% and 21% less than the V10 G2. The built-in high-precision Hall sensor and the balanced rotor give excellent linearity.

The mechanical timing adjusts finely and smoothly, and the grooves on the rear end cap hold it in place: 30-60 degrees on Stock (10.5T-25.5T) and 20-50 degrees on Modified (3.5T-8.5T). The stator core is exposed to the air for maximum cooling, and the can is easy to take apart for maintenance. The front bearing is 26% larger for a higher load capacity and the rear one 6% smaller for lower friction, so the motor runs stably and smoothly.

Features

• KV and torque increased by 16% and 4% compared with the V10 G2 Stock
• Light: 161g (Modified) and 132g (Stock)
• High-precision Hall sensor and balanced rotor
• Fine mechanical timing with anti-slip grooves
• Exposed stator core for maximum cooling
• Easy to take apart and replace wear parts
• Wire and rotor rated to 200°C, and copper solder tabs for high current
• Asymmetric bearings for stable and smooth running
• Approved to IFMAR, ROAR, EFRA and BRCA rules

Specifications

• Application: 1/10 2WD Modified Class off-road racing
• Type: Sensored Brushless
• Poles: 2
• KV: 3970
• LiPo cells: 2S
• No-load current: 2.8 A
• Max. power: 298 W
• Current at max. power: 84 A
• Outer diameter: 35.9 mm
• Length: 51.2 mm
• Shaft diameter: 3.17 mm
• Shaft length: 13.3 mm
• Weight: 161 g
• Standard rotor: 5-12.5
• Timing: 20-50° (adjustable)
