Hobbywing 30402550 - Motor EzRun 5687SL 1100kV Sensorless 1/6

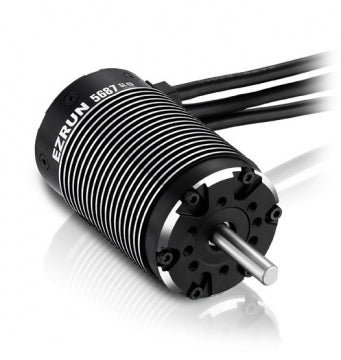

Hobbywing EzRun 5687SL 1100kV sensorless brushless motor, 1/6

The EzRun 5687 is a powerful sensorless brushless motor for large cars. The 4-pole rotor delivers high torque, fast acceleration and stable power, and Hobbywing's temperature management keeps heat down so that efficiency reaches up to 90 %. It is a perfect match for the EZRUN MAX6/5 ESCs.

Features

• 4-pole rotor with high torque, fast acceleration and stable power
• Special temperature management means less heat and up to 90 % efficiency
• CNC-machined aluminium housing, high-purity copper windings, advanced rotor, 0.2 mm silicon steel laminations, stainless steel shaft and precision bearings
• Partially rebuildable for easy maintenance and a longer service life
• Perfect match for the HOBBYWING EZRUN MAX6/5 ESC
• Temperature sensor port

Specifications

• Type: Brushless Sensorless
• Poles: 4
• KV: 1100
• LiPo cells: 3-8S
• Resistance: 0.0041 Ohm
• No-load current: 4.1 A
• Max. current: 200 A
• Power: Max 5800 W
• Outer diameter: 56 mm
• Length: 87 mm
• Shaft diameter: 8 mm
• Shaft length: 31 mm
• Weight: 916 g
• Application: 1/5 & 1/6 Light-Duty Vehicles
