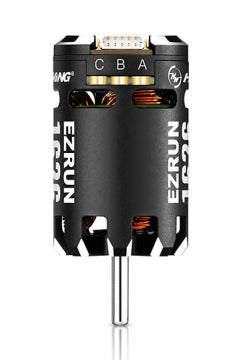

Hobbywing 30402654 - Motor EzRun 1626SD-5000kV BL 1/28

Hobbywing EzRun 1626SD 5000kV sensored brushless motor, 1/28

The EZRUN 1626 is Hobbywing's first motor made specifically for powerful 1/28 cars. Paired with the EZRUN MINI28 ESC it is a perfect match, giving better performance and finer control, and with timing advance in the MINI28 the top speed can be increased significantly, in small or large steps.

Large openings at the front and rear give good cooling, and the high-precision Hall sensor and balanced rotor give excellent linearity without cogging, with consistent torque and good response at low speed. The internal 4-layer PCB has reinforced solder tabs for A, B and C, so they do not come off after repeated soldering.

Features

• Made specifically for 1/28 mini cars
• Perfect match for the EZRUN MINI28
• Timing advance for higher top speed with the MINI28
• Large cooling openings front and rear
• High-precision Hall sensor without cogging
• 4-layer PCB with reinforced solder tabs

Specifications

• KV: 5000
• Poles: 2
• LiPo cells: 2s
• No-load current: 0.5 A
• Diameter: 16 mm
• Can length: 26 mm
• Shaft diameter: 2 mm
• Shaft length: 8.5 mm
• Bearing size: OD5 x ID2 x T2.5 mm
• Weight: 18 g
• Application: 1/28 Mini
