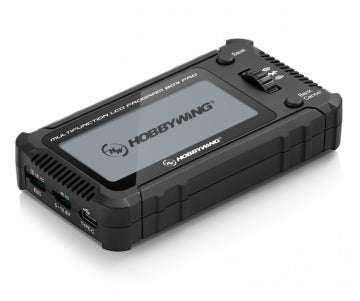

Hobbywing 30502002 - LCD Program Box Pro Multi-function XeRun, EzRun, Platinum, Seaking

Hobbywing Multifunction LCD Program Box Pro

Advanced program box for Hobbywing ESCs with LCD and Bluetooth

The Hobbywing Multifunction LCD Program Box Pro is a versatile programming unit for setting up, updating and managing compatible Hobbywing ESCs. You can use it directly via the built-in 2.8" LCD screen, together with a computer via USB-C, or wirelessly with a smartphone via the built-in Bluetooth function.

The program box combines the functions of Hobbywing's earlier LCD Program Box G2 and the OTA Bluetooth module in one unit. It can also be used as a battery checker to check both the total voltage and the voltage of the individual cells in 1-8S LiPo batteries.

Large 2.8" LCD screen

The larger LCD screen shows considerably more information than the earlier LCD Program Box and makes it easier to review and change ESC settings. The screen brightness can be adjusted in 20 levels, so it can be adapted to different lighting conditions.

Several ways to program

• Direct programming via the built-in LCD screen
• USB-C connection to a computer and the Hobbywing USB Link software
• Built-in Bluetooth for a wireless connection to a smartphone
• Supports the Hobbywing HW Link V2 app
• Firmware updates for compatible ESCs
• Firmware updates for the program box itself

Save and copy ESC profiles

ESC settings can be imported and exported, so a particular setup can be saved and then transferred to another compatible ESC. This is practical if several models are to use the same basic setup, or if you want to save different profiles for later use.

Built-in battery checker

The program box can check 1-8S lithium batteries and show both the battery's total voltage and the voltage of the individual cells. This means it can also be used for a quick check of the battery's cells without a separate voltage checker.

Features

• 2.8" LCD display
• Built-in Bluetooth/OTA function
• USB-C interface
• Programming of compatible Hobbywing ESCs
• Firmware updates for compatible ESCs
• Import and export of ESC profiles
• 1-8S battery voltage test
• Display of individual cell voltage
• 20 screen brightness levels
• Operated via a scroll wheel
• Built-in beeper that can be switched off
• Supports English, Chinese and Japanese

Compatibility

• Hobbywing XeRun brushless ESC series, V2.0 and later
• Hobbywing EzRun brushless ESC series, V2.0 and later
• Hobbywing Platinum brushless aircraft ESCs
• Hobbywing Seaking Pro brushless boat ESCs
• Selected Hobbywing QuicRun ESCs

Compatibility depends on the specific ESC model. In general, the program box supports the ESCs that are compatible with the earlier LCD Program Box G2 and the Hobbywing OTA Bluetooth module.

Specifications

• Manufacturer: Hobbywing
• Model: Multifunction LCD Program Box Pro
• Part number: 30502002
• Display: 2.8" LCD
• Input voltage: DC 5-12.6V
• Battery checker: 1-8S
• USB interface: USB Type-C
• ESC interface: Futaba-type connector
• Power supply interface: Futaba-type connector
• Wireless connection: Bluetooth
• App support: Hobbywing HW Link V2
• Size: 105.6 x 59 x 24.4 mm incl. scroll wheel
• Weight: 85 g

What's in the box

• 1 x Hobbywing Multifunction LCD Program Box Pro

What you need

• A compatible Hobbywing ESC
• A smartphone with the HW Link V2 app for wireless programming
• A computer with Hobbywing software for USB programming
• A separate power supply/battery if the connected ESC does not have a built-in or external BEC
