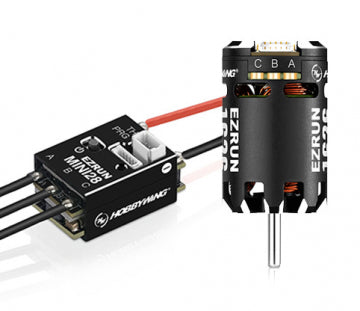

Hobbywing 38020366 - EzRun Combo MINI28 - 1626SD 3500kV 1/28

Hobbywing EZRUN MINI28 & 1626SD 3500KV Brushless Combo – 1/28

Compact brushless combo for 1/28 and 1/27 racing models

The Hobbywing EZRUN MINI28 combo is designed specifically for 1/28-scale racing models and pairs the MINI28 sensored brushless ESC with an EZRUN 1626SD 3500KV brushless motor. The compact setup delivers high power, precise response and extensive options for adjusting motor and brake characteristics.

The MINI28 ESC is extremely compact, measuring just 22.7 x 14.2 x 11.8 mm and weighing around 5 grams without wires. It supports 2S LiPo and can deliver up to 30A continuous and 80A peak.

MINI28 ESC – features

• Developed specifically for 1/28 racing
• Sensored brushless ESC
• 30A continuous / 80A peak current
• 2S LiPo
• Built-in BEC with selectable 6V or 7.4V
• Up to 3.5A BEC current
• Two profiles: Zero-Timing (blinky) and Modified
• Adjustable throttle, brake and initial throttle
• Low-voltage protection
• Overheat protection
• Failsafe on loss of throttle signal
• Supports OTA programming and firmware updates
• Supports the Hobbywing LCD G2 Program Box
• Built-in aluminium heatsink
• Not waterproof

Built-in BEC

The MINI28 has a built-in BEC with an output voltage selectable between 6V and 7.4V. The BEC can deliver up to 3.5A, so it is also suitable for modern high-torque servos.

EZRUN 1626SD 3500KV motor

The included 1626SD is a 2-pole sensored brushless motor developed specifically for 1/28 mini racing models. It has a precision Hall sensor and a balanced rotor, which contribute to smooth running and precise control at low speeds.

• KV: 3500
• Poles: 2
• LiPo: 2S
• Diameter: 16 mm
• Can length: 26 mm
• Shaft diameter: 2 mm
• Shaft length: 8.5 mm
• Bearing: 5 x 2 x 2.5 mm
• No-load current: 0.4A
• Weight: 18 g
• Application: 1/28 Mini

Precise response

The sensored motor runs smoothly without cogging and gives precise response at low speed. Together with the MINI28 ESC, the motor timing can be adjusted, so the setup can be tailored to different tracks and driving styles.

Specifications – ESC

• Manufacturer: Hobbywing
• Item number: 38020366
• Model: EZRUN MINI28
• Type: Sensored brushless ESC
• Continuous current: 30A
• Peak current: 80A
• Input voltage: 2S LiPo
• BEC: 6V / 7.4V, max. 3.5A
• Dimensions: 22.7 x 14.2 x 11.8 mm
• Weight: 5 g without wires
• Waterproof: No
• Firmware updates: Yes
• Programming: LCD G2 Program Box or OTA Programmer
• Data logging: Extreme Value

Specifications – motor

• Model: EZRUN 1626SD
• KV: 3500
• Type: Sensored brushless
• Poles: 2
• Operation: 2S LiPo
• Diameter: 16 mm
• Length: 26 mm
• Shaft: 2 x 8.5 mm
• Weight: 18 g

Compatibility

• 1/28 RC racing models
• 1/27 RC models
• Models that support 2S LiPo and have room for a 16 x 26 mm motor

What's in the box

• 1 x Hobbywing EZRUN MINI28 ESC
• 1 x Hobbywing EZRUN 1626SD 3500KV brushless motor

What you need

• 2S LiPo battery
• Compatible charger
• RC transmitter and receiver
• Optionally a Hobbywing OTA Programmer or LCD G2 Program Box for advanced programming
