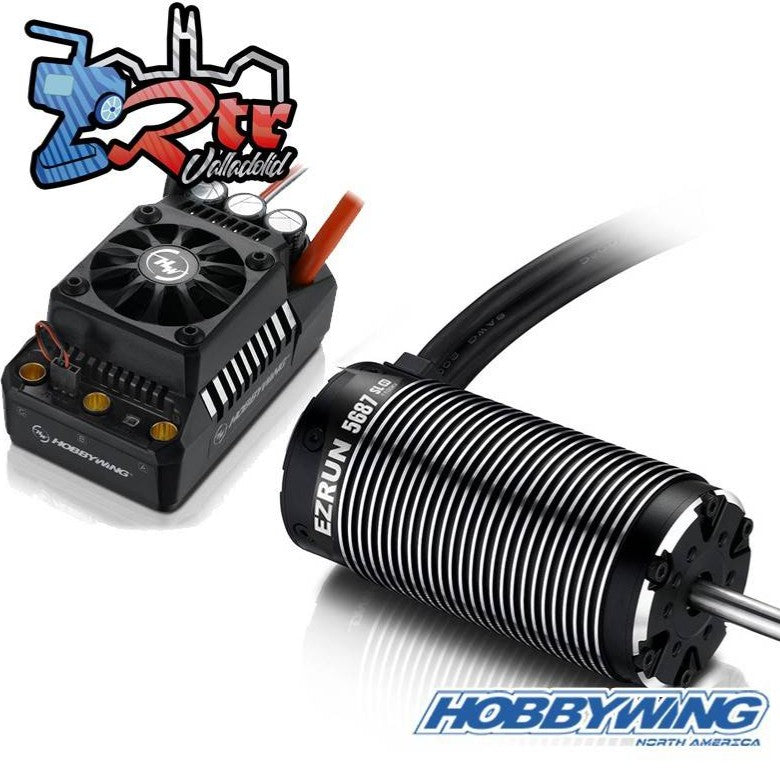

Hobbywing EZRun MAX5 Combo — 5687-1100KV Brushless ESC & Motor | 1/5 Skala | 3-8S LiPo

2.295,00 kr 2.995,00 kr

Get a price match on Hobbywing EZRun MAX5 Combo — 5687-1100KV Brushless ESC & Motor | 1/5 Skala | 3-8S LiPo

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Last 1 units available - order before at 15:00, delivery by 29 Sep (4 days)

In-store pickup

Last 1 units available - Nørresundby

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
🔌 Har din bil eller lader et andet stik end batteriet? Find omformerstik med Stikfinderen
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

Brutal power for your 1/5 scale basher. The Hobbywing EZRun MAX5 ESC paired with the iconic 5687-1100KV sensorless brushless motor — thoroughly tested, waterproof and built for 8S abuse in the Arrma Kraton/Outcast 8S, Traxxas X-Maxx, Losi 5IVE, HPI Baja and similar

This combo is Hobbywing's classic 1/5 scale power package in the original (G1) version — a sensorless setup without vulnerable sensor wires, which makes it particularly well suited to hard off-road bashing and wet conditions where you just want something that works.

The MAX5 ESC delivers 200A continuous and 1300A peak, accepts anything from 3S to 8S LiPo, and has a powerful switch-mode BEC (6V/7.4V, up to 25A peak) that easily drives large digital servos. Anti-spark, waterproof, dustproof. The 5687 motor is a 4-pole sensorless brushless monster motor with 5800W max output and 200A peak — Ø56mm × 87mm with an 8mm shaft.

The result: linear throttle response, wild acceleration and rock-solid stability under full load.

Specifications:

ESC (EZRun MAX5):

  • Type: Brushless, sensorless, waterproof
  • Continuous current: 200A / Peak: 1300A
  • Input: 3-8S LiPo (9-24 cells NiMH)
  • BEC: 6V/7.4V switchable, 6A continuous / 25A peak
  • Weight: 342g
  • Dimensions: 93.4 × 58.1 × 47.8mm

Motor (EZRun 5687-1100KV):

  • Type: Brushless sensorless, 4-pole
  • KV: 1100
  • Max power: 5800W
  • Peak current: 200A
  • Dimensions: Ø56mm × 87mm
  • Shaft: Ø8mm × 31mm
  • Weight: 916g
  • LiPo: 3-8S

Recommended vehicles:

Arrma Kraton 8S, Outcast 8S, Notorious 8S · Traxxas X-Maxx · Losi 5IVE-T · HPI Baja 5B/5T/5SC · DBXL/DBXL-E · Tekno MT410 and similar 1/5 and heavy 1/6 scale bashers/racers.

In the box:

1× EZRun MAX5 ESC · 1× EZRun 5687-1100KV motor · 8 AWG red power wire · 10 AWG black power wire · double-sided tape · heat-shrink tubing · manual · Hobbywing decal.

Please note:

This is the original version (G1) of the MAX5/5687 combo — sensorless setup. If you need sensored mode with temperature protection, take a look at Hobbywing's newer MAX5 G2 system with the 56118SD motor. G1 puts simplicity and robustness ahead of feature bloat.
