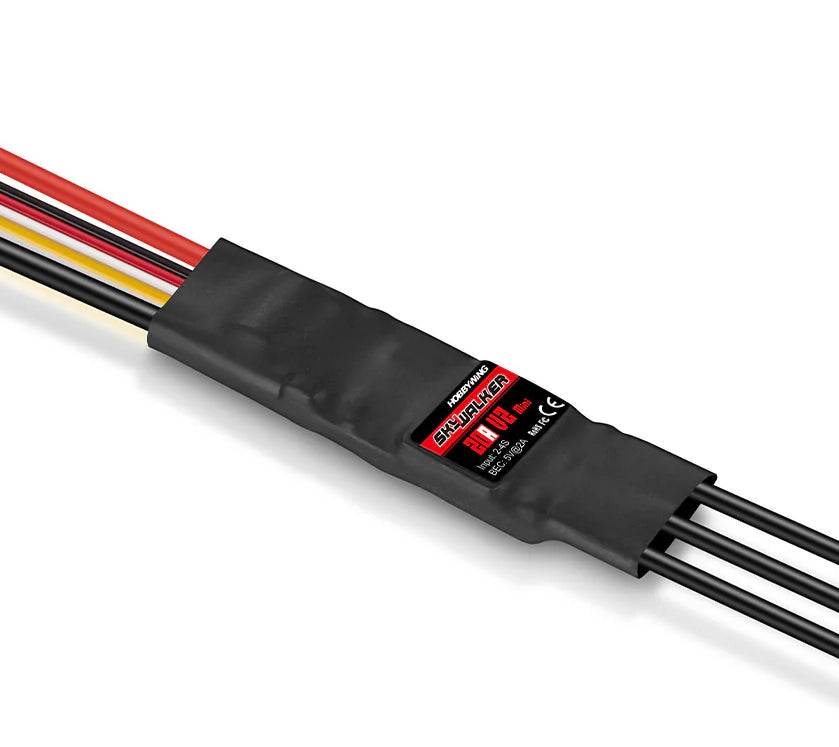

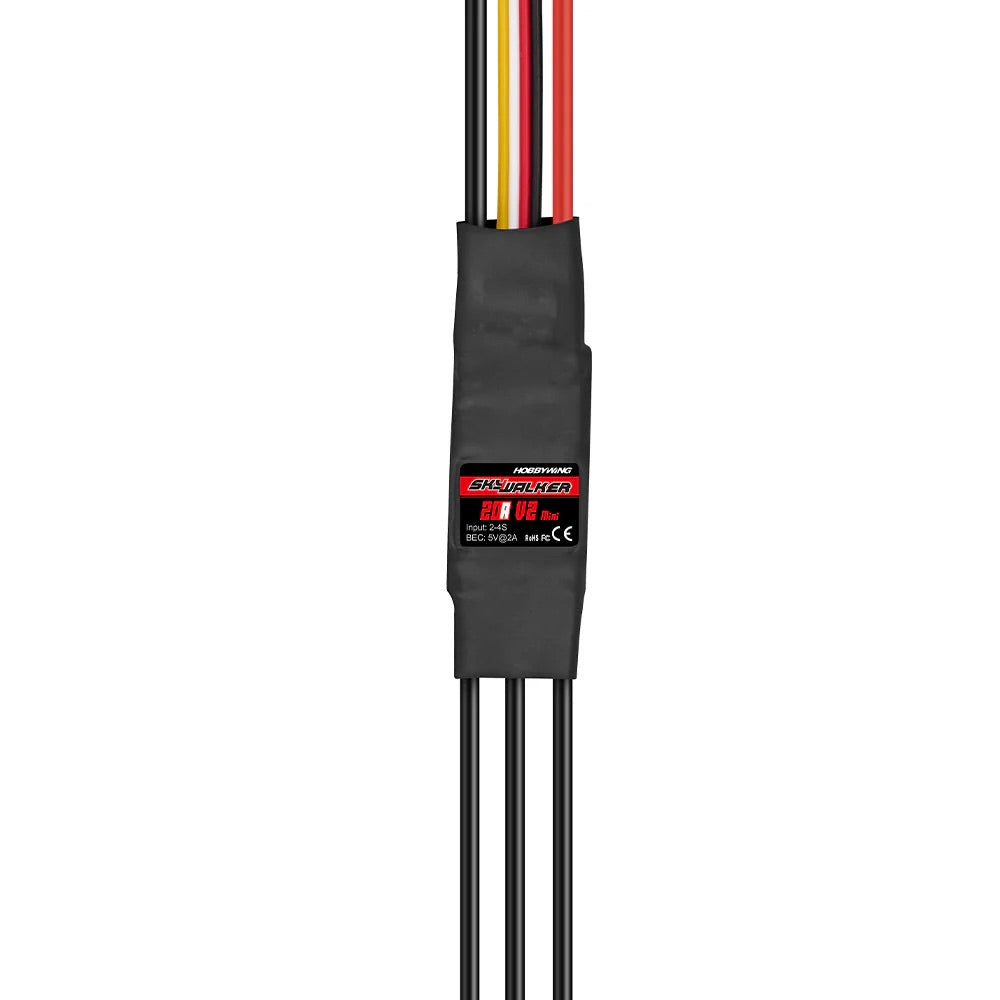

Skywalker 20A V2 Mini ESC 2-4S 5V/3A

Hobbywing 30205201- Skywalker 20A V2 Mini ESC 2-4S 5V/3A

Features:

• High performance 32-bit microprocessor (Running frequency up to 96MHz) has excellent compatibility with various types of motors.
• DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
• Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of HOBBYWING LED program box.)
• Normal/Reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.
• Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment.
•  Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service life of the ESC.

Specs:

• Continuous current: 20 A
• Peak current: 40 A
• Input voltage: 2–3 S LiPo
• BEC output (switch mode): 5 V / 3 A
• Processor: 32-bit ARM M0 (96 MHz)
• Supported motor speed: up to 300 000 RPM (2-pole motor)
• DEO (Driving Efficiency Optimization) technology for smoother throttle response and higher efficiency
• Reverse brake and search mode functions
• Protections: low-voltage cutoff, ESC overheat, signal loss
• Size: 45 × 23 × 8 mm
• Weight: 19 g
