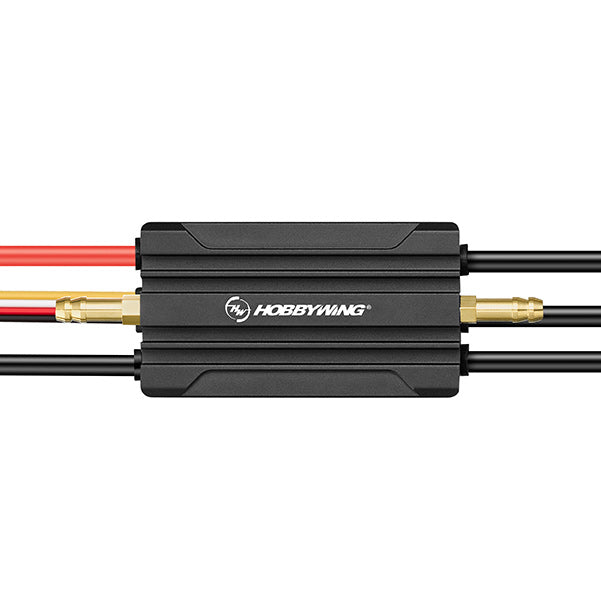

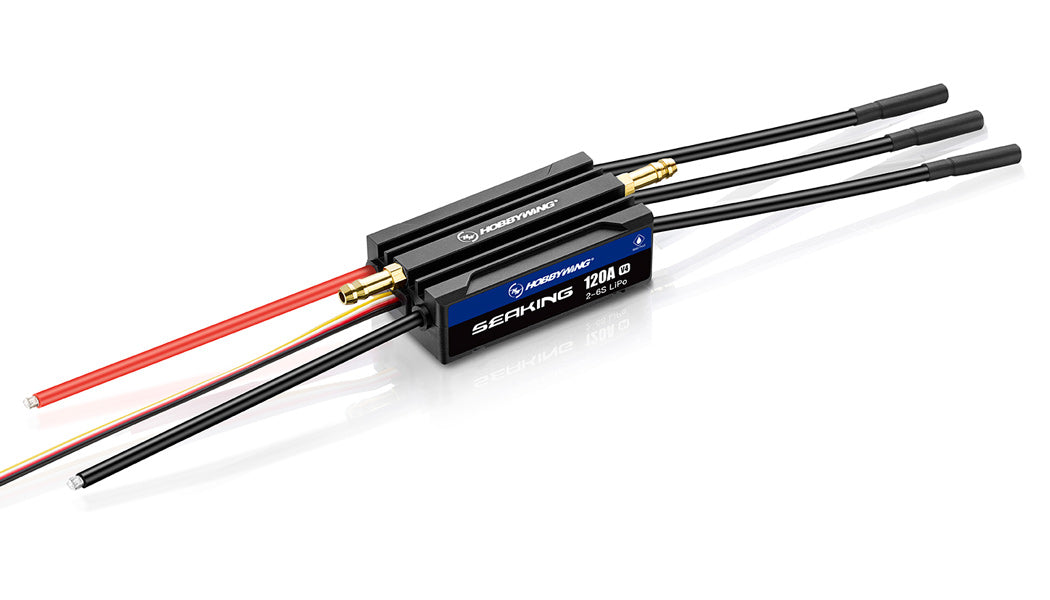

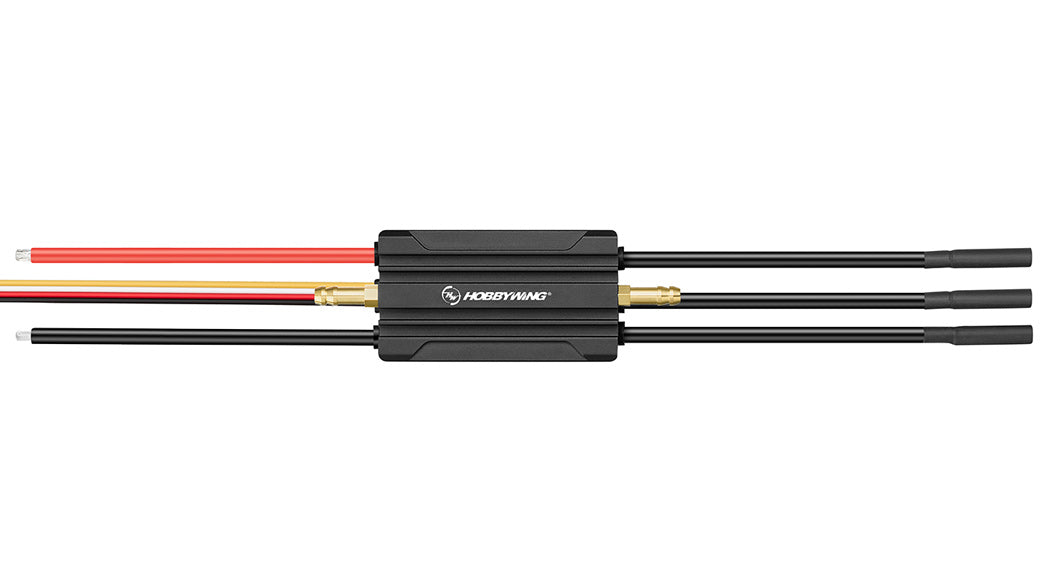

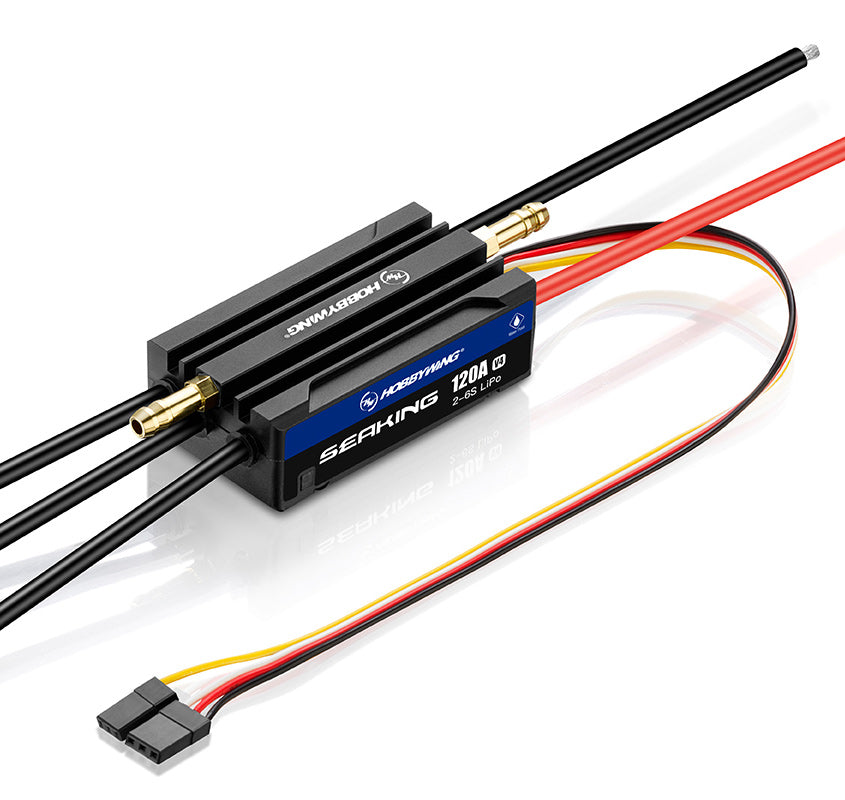

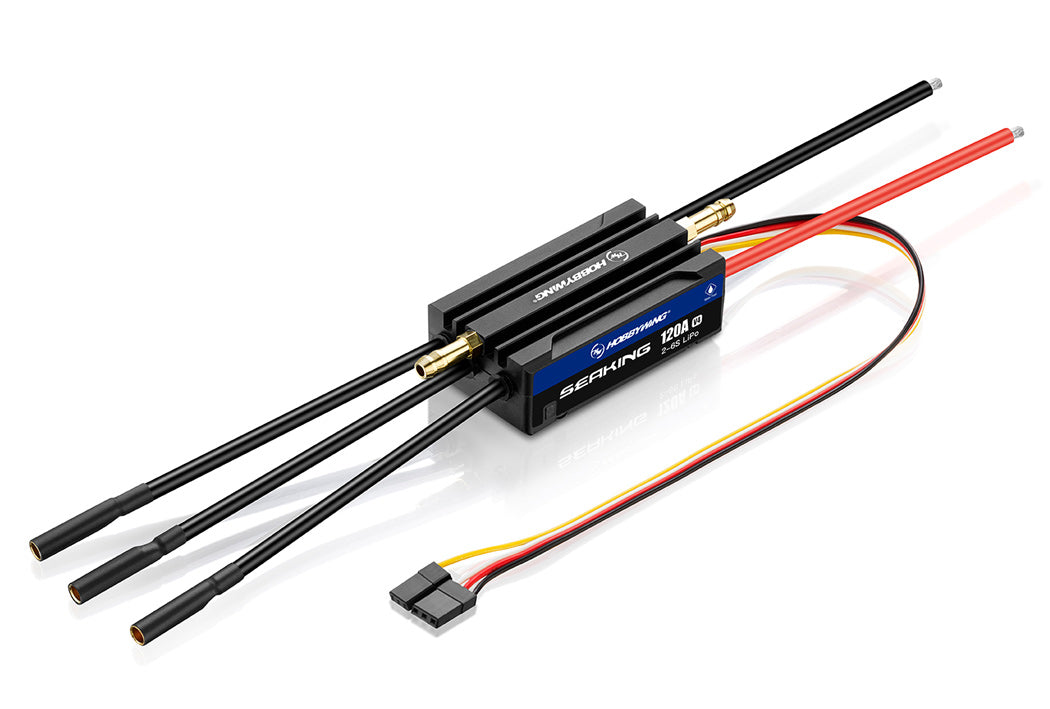

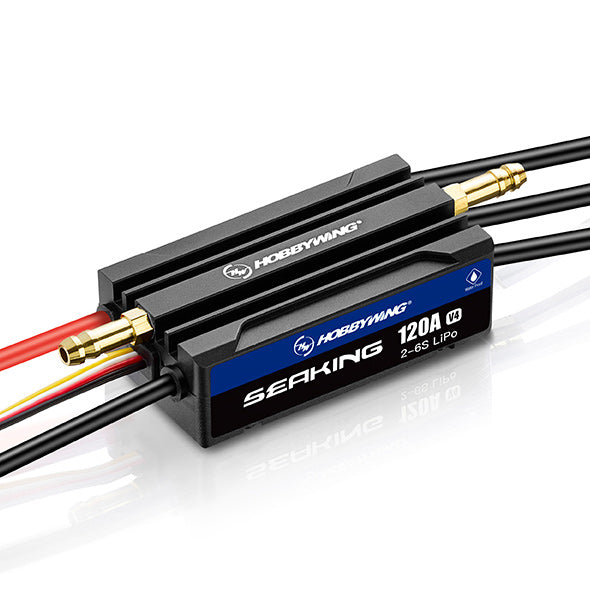

ESC Seaking 120A V4 2-6S Boat

Hobbywing SeaKing 120A V4 boat ESC – 2-6S

An extremely reliable and durable boat speed controller with protection against low voltage, overheating, signal loss and overload. It is considerably narrower than the earlier SeaKing 30A/60A/120A V3, making it easier to fit in narrow boats. IP67 means it is splash-, water- and dustproof and can be used straight away without extra waterproofing.

With the OTA Bluetooth module you can follow throttle position, voltage, temperature and speed in real time in the app and afterwards view the history as graphs. The Super BEC powers strong HV servos, freewheeling gives a cooler ESC, faster deceleration and better turning control, and via the yellow signal lead on a free receiver channel you can adjust, for example, reverse thrust from the transmitter. 11 programmable parameters and firmware updates via USB LINK or the HW LINK app.

Features

• Protection against low voltage, overheating, signal loss and overload
• Slim shape – narrower than the SeaKing V3
• Data logging via the OTA Bluetooth module
• IP67 water- and dustproof
• Super BEC for strong HV servos
• Capacitor overheat protection
• Freewheeling and AUX channel for real-time adjustment
• Firmware updates; 11 programmable parameters

Specifications

• Type: brushless, sensorless, waterproof
• Current: 120 A continuous / 500 A peak
• Battery: 2-6S LiPo
• BEC: switch-mode 6/7.4/8.4 V, 8 A
• Input wires: 12 AWG, 150 mm (no connector)
• Output wires: 12 AWG, 100 mm, 4 mm gold female connectors
• Dimensions: 64.7 x 36.3 x 22.5 mm
• Weight: 123 g

What you need

• OTA Bluetooth module or LCD program box (for data logging and firmware updates)
