Motor QuicRun 3650SD 21.5T G2

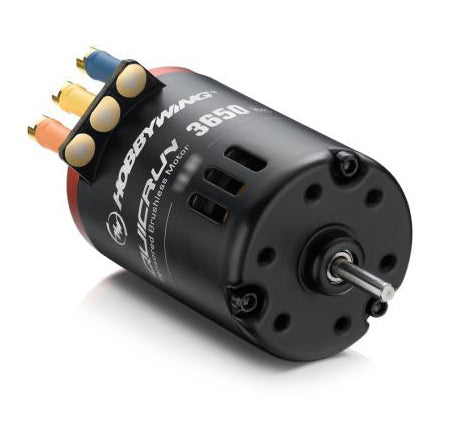

Hobbywing QuicRun 3650SD 21.5T G2 sensored brushless motor

Sensored brushless for smooth, linear throttle control. The QuicRun 3650SD G2 can be taken apart, so the rotor, bearings and sensor module are easy to clean, repair or replace, and the precision-balanced rotor gives high efficiency and less vibration. Dust protection at the output shaft improves durability, and a silicone O-ring between the end cap and stator helps cooling.

Locking, gold-plated connectors give reliable connections without soldering, and 3.5 mm bullet connectors are fitted – plug-and-play with standard sensored ESCs.

Features

• Sensored – smooth, linear throttle control
• Can be taken apart: rotor, bearings and sensor module can be cleaned and replaced
• Precision-balanced rotor
• Dust-protected output end
• Silicone O-ring for better cooling
• Locking, gold-plated connectors; 3.5 mm bullet connectors fitted
• Fits standard sensored ESCs

Specifications

• Turns: 21.5T
• Kv: 1800
• Battery: 2S-3S LiPo
• Resistance: 0.0747 Ω
• No-load current: 1.3 A
• Max. current: 28 A
• Max. power: 95 W
• Rotor diameter: 12.5 mm
• Shaft: 3.175 mm
• Diameter: 36 mm
• Length (without shaft): 52.8 mm
• Weight: 186 g
• Mounting screws: M3, max. depth 5 mm
• Max. operating temperature: 90 °C (194 °F)
