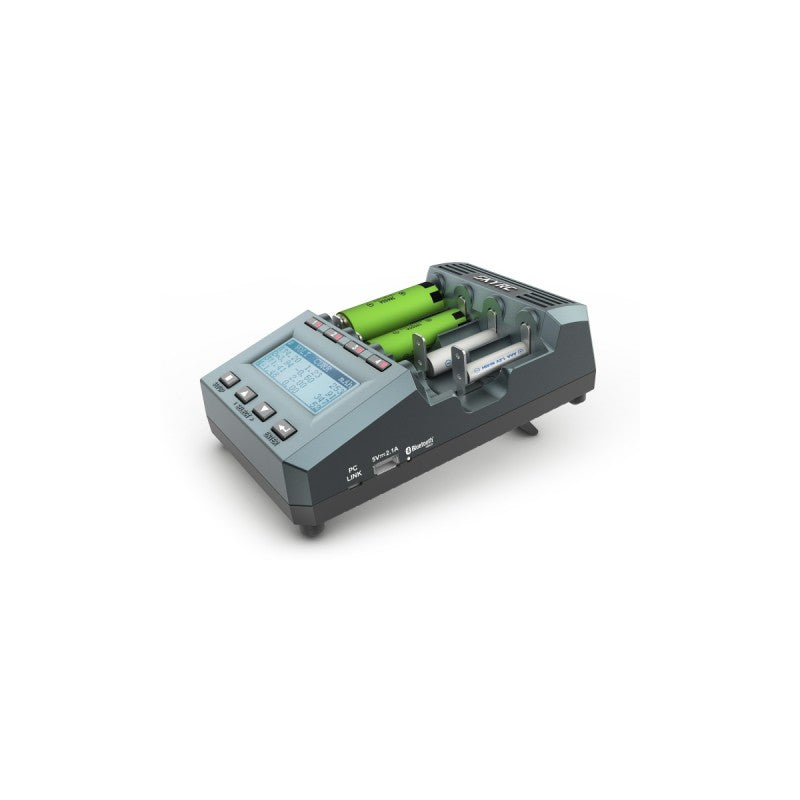

MC3000 Universal battery charger & analyser

Kyosho MC3000 Universal Battery Charger & Analyser

The MC3000 is made for anyone who wants a charger with the same versatility, accuracy and power as a SkyRC hobby charger, but in a format tailored to cylindrical single-cell batteries. With the handy battery tray, you avoid the hassle of battery holders, messy wires, clips and other DIY solutions.

The charger supports NiMH, NiCd, NiZn and Eneloop batteries as well as Lithium-Ion, LiIo4.35 and LiFePO4 chemistries, giving you a single all-in-one solution for most of your single-cell batteries.

The built-in aluminium heatsink ensures efficient heat dissipation from inside the charger, even at low fan speed, while the compact display with 5 different views gives a quick overview during operation. The rich interface with eight buttons makes programming and operation simple, and with 30 custom programs, your favourite settings can be recalled in just a few clicks.

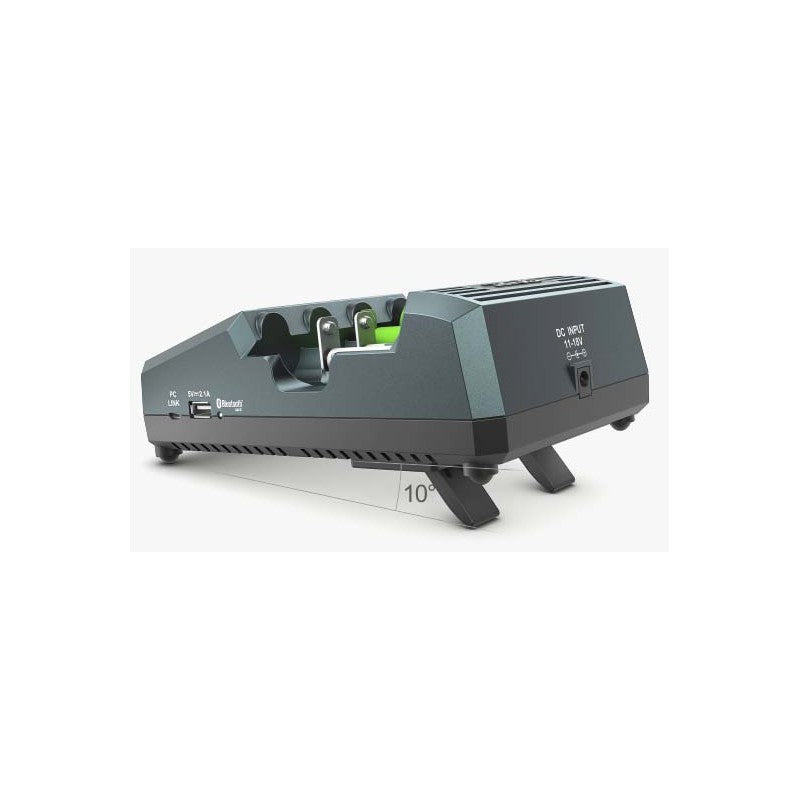

The charger stands securely thanks to rubber feet and a sturdy tilt stand, which also improves the viewing angle and airflow for cooling. You can control and monitor the MC3000 in real time via a mobile app with BLE 4.0 technology or via PC Link software, where you can also update the charger's firmware.

Technical data

• Accepts NiMH, NiCd, NiZn, Eneloop
• Charging current: Max. 3A (x4 slots)
• Discharging current: Max. 2A (x4 slots)
• Internal accuracy (calibrated with a precise calibration source) – Voltage: < |±2mV|
• Internal accuracy – Current: < |±2mA|
• Accepts Lithium-Ion, LiIo4.35, LiFePO4
• Charging current: Max. 3A (x4 slots)
• Discharging current: Max. 2A (x1 slot) / Max. 1A (x4 slots)
• Display resolution – Voltage: 0.01V
• Display resolution – Current: 0.01A
• Display: 128x64 pixels with 5 different views
• Eight buttons for programming and operation, including four Slot Number Buttons (SNB)
• 30 custom operating profiles in Simple and Advanced UI mode
• 6 operating modes: Charge, Discharge, Refresh Analyse, Breaking, Cycle, Storage
• Cycle mode can run up to 99 repetitions
• APP control via BLE 4.0 technology
• PC control via PC Link software with real-time data, graphs and firmware updates
