Mega Brushed 2S ESC

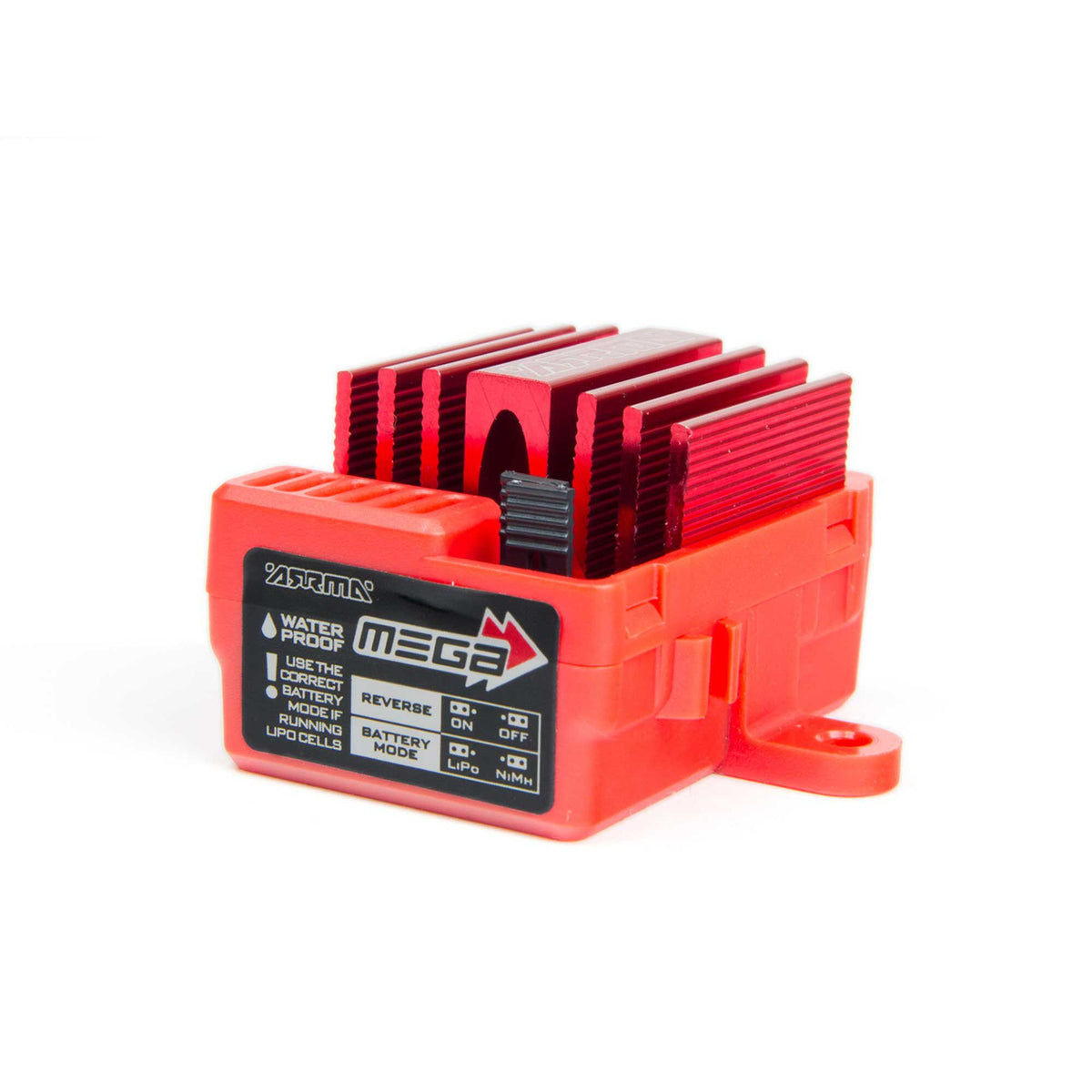

ARRMA MEGA brushed 2S ESC

Stable and safe power control for your brushed ARRMA – with built-in LiPo protection. The MEGA ESC runs on 2S LiPo or 6-7 cell NiMH, has overvoltage protection and a red anodised heat sink that draws heat away. IC3 connector, waterproof switch and a strong red nylon case with mounting tabs for secure fitting in the chassis.

Features

• IC3 connector
• Built-in LiPo protection and overvoltage protection
• Red anodised heat sink
• Heavy-duty motor and battery wires
• Waterproof switch
• Strong red nylon case with mounting tabs and etched ARRMA logo

Specifications

• Battery: 7.2 V (6 cells) / 8.4 V (7 cells) NiMH or 7.4 V (2S) LiPo
• Low-voltage cutoff: 3.2 V per cell
• Thermal protection: 95 °C / 203 °F
• BEC: 5 V, 2 A
• Dimensions (L x H x W): 47 x 21 x 34 mm
• Weight: 70 g / 2.47 oz
• Receiver lead: 160 mm
• Battery lead: 90 mm

What's in the box

• 1 x ARRMA MEGA brushed ESC
