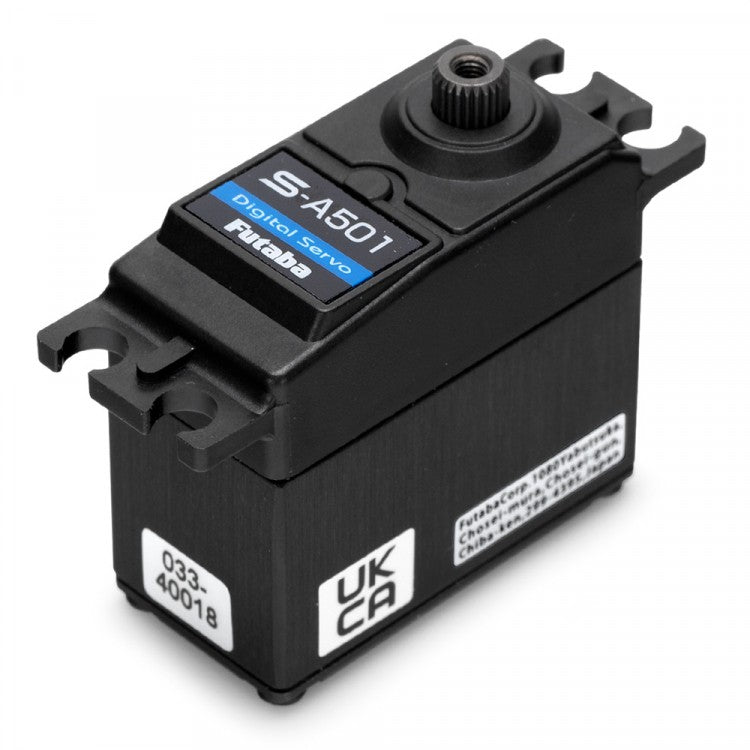

S-A501 Airplane Servo 16.8kg 0.11s HV S.BUS

Kyosho S-A501 aeroplane servo 16.8kg 0.11s HV S.BUS

The Kyosho S-A501 is a digital coreless servo developed specifically for aeroplanes, where high precision, power and speed are crucial. The servo supports the S.Bus2 protocol, which allows simple and reliable digital control directly from the receiver.

With its robust construction and high torque, the S-A501 is suitable for demanding aircraft models that place high demands on both response speed and holding power in the control surfaces. The servo can run on both standard and HV voltage, giving you flexibility in the power system you use.

Thanks to the coreless motor and digital control, you get a fast and smooth response, while the servo delivers stable performance under varying loads.

Technical data

• Type: coreless, digital, S.Bus2, HV aeroplane servo
• Dimensions: 40 x 20 x 36.8 mm
• Weight: 62 g
• Nominal voltage: 6-7.4V
• Operating voltage: 4.8-8.4V
• Torque at 6.6V: 15 kg/cm
• Torque at 7.4V: 18.8 kg/cm
• Speed at 6.6V: 0.12s/60°
• Speed at 7.4V: 0.11s/60°
• Splines: 25T
