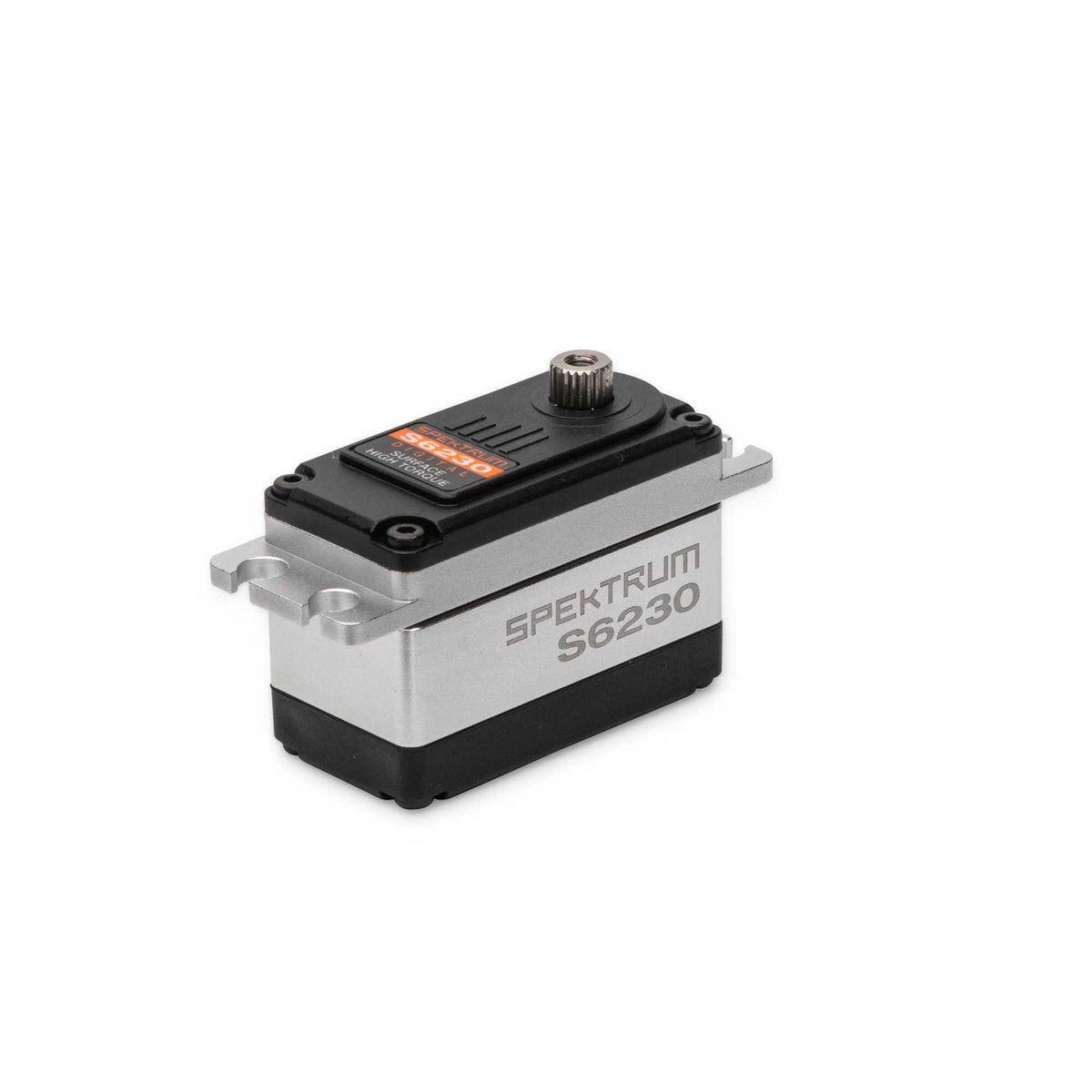

S6230 Ultra Torq Mid Speed Digital WP Metal Servo

Spektrum S6230 Ultra Torque Mid Speed digital servo – waterproof, metal gears

The S6230 is the torque version in a compact size from Spektrum's latest generation of surface servos – for 1/10 crawlers and monster trucks where space is tight. The output shaft and main gear are hard-anodised 7075 aluminium with internal steel gears, the case is aluminium that conducts heat away well, and two NMB bearings support the shaft. And it's waterproof.

The lead is detachable and available in several lengths, so you can tailor the installation and swap it easily during maintenance. The mounting tabs are all-metal, so the servo stays put even when things get wild. Its sibling, the S6240, is the speed version.

Features

• High torque in a compact size
• Detachable lead – several lengths available
• 7075 aluminium hard-anodised output shaft/main gear, steel gears inside
• Aluminium case with good heat dissipation
• Aluminium mounting tabs
• Dual NMB main bearings; 23T spline
• Waterproof; 1-year limited warranty

Specifications

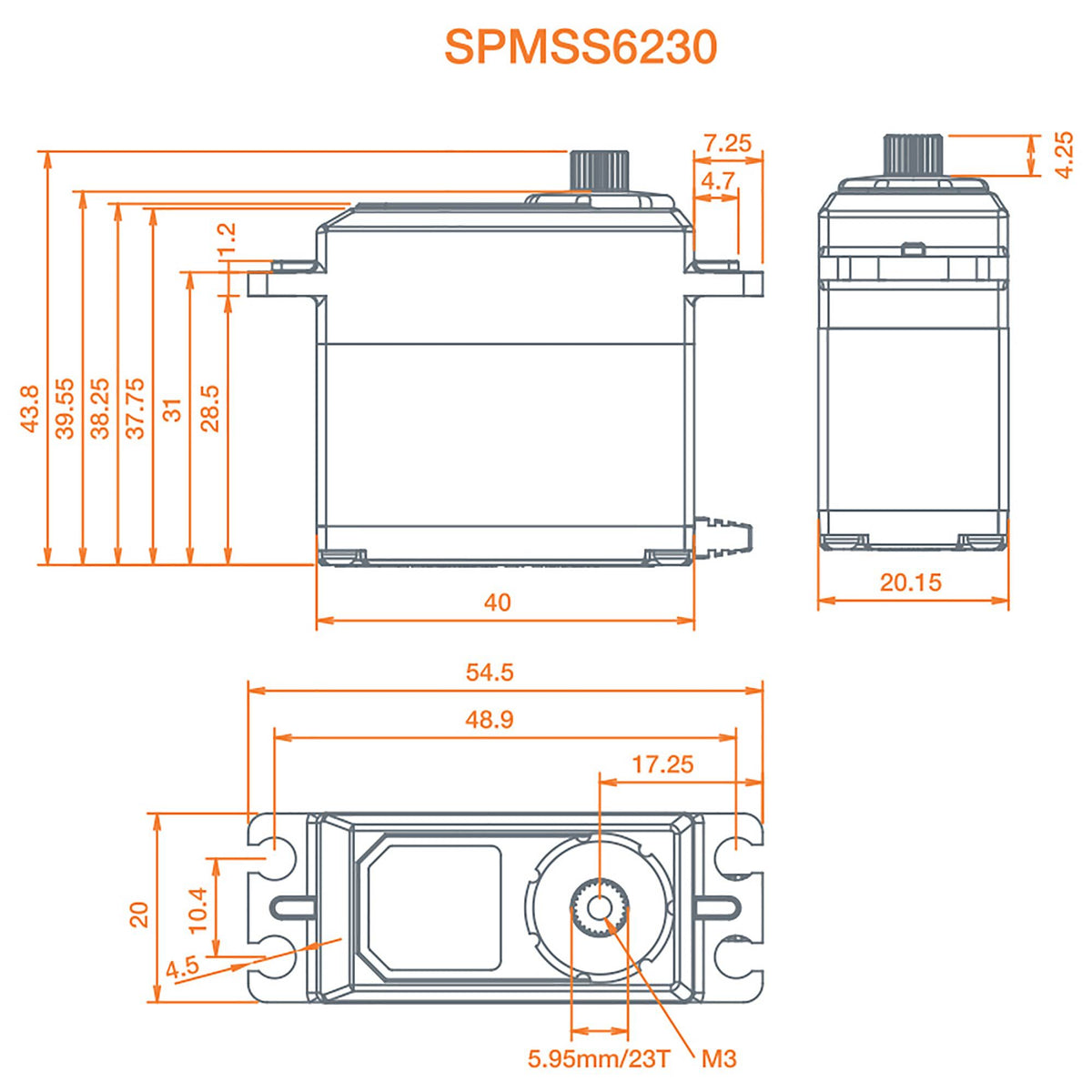

• Spline: 23T

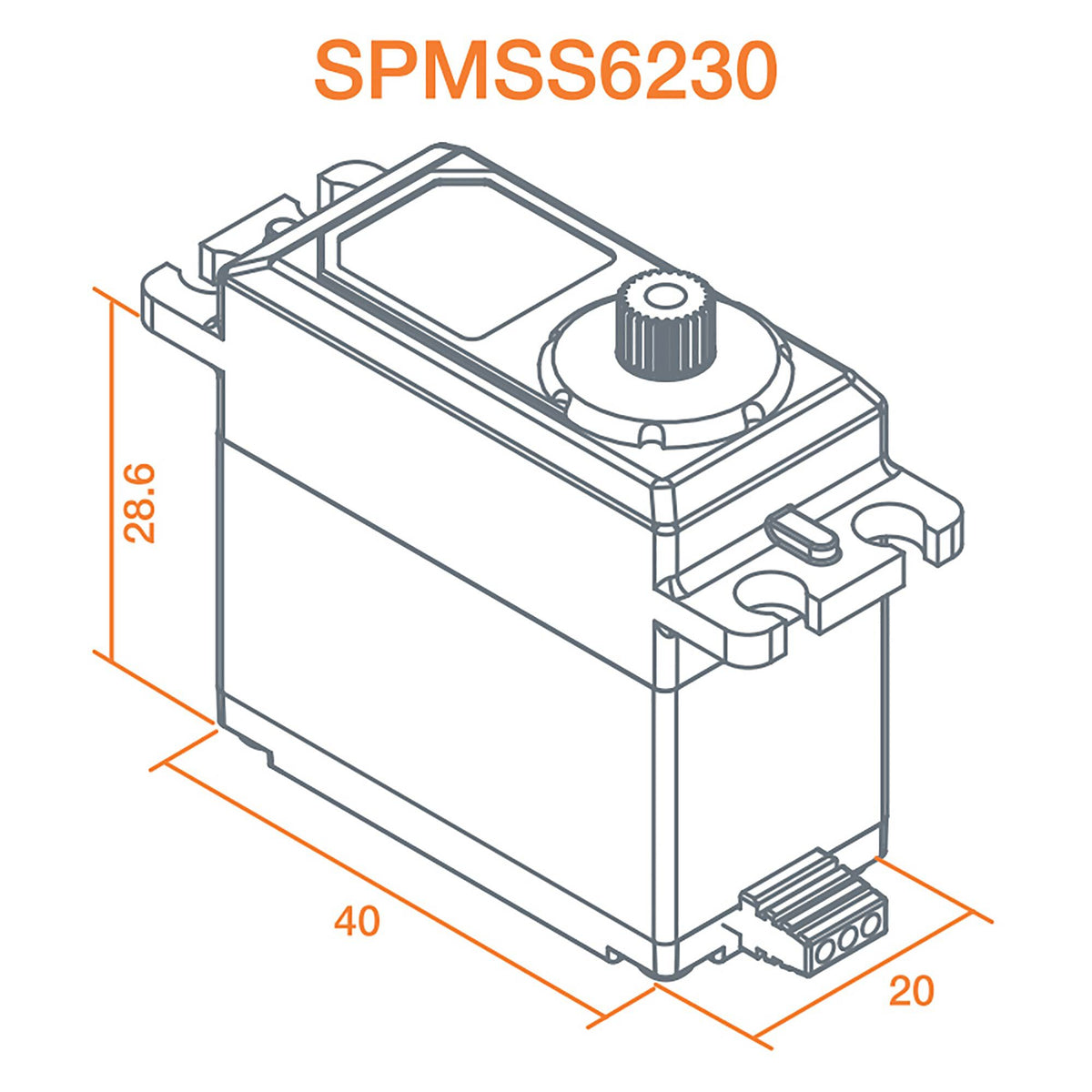

• Size: compact
• Scale: 1/10 crawlers and monster trucks
