Savöx  |  SKU: SAV-SA1230SGPLUS Producent varenr.: SA-1230SG PLUS  |  EAN: 4710006994161

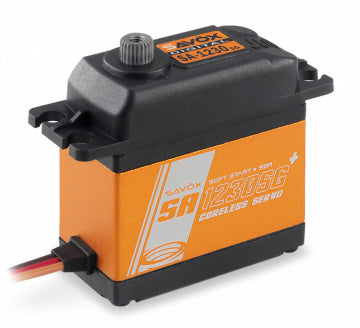

Savöx SA-1230SG PLUS - SA-1230SG Plus Servo 36Kg 0,16s Alu Coreless Steel Gear

612,54 kr

Get a price match on Savöx SA-1230SG PLUS - SA-1230SG Plus Servo 36Kg 0,16s Alu Coreless Steel Gear

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 3-5 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SA-1230SG PLUS - Coreless Steel-Geared High Torque Servo

The Savox SA-1230SG-PLUS Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Extremely strong unique steel gears ensure long-life and durability
  • Ideal for steering on rock crawlers, monster trucks, and large scale aircraft
  • Slightly taller case design

Specifications:
  • Torque @ 4.8V: 30.0kg
  • Torque @ 6V: 36.0kg
  • Speed @ 4.8V: 0.20 sec/60 deg
  • Speed @ 6V: 0.16 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 44.9mm
  • Weight: 79g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @4.8V, 250mA @6.0V
  • Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

Shipping

We ship with GLS:

From our warehouse in Denmark.
Shipping is calculated at checkout.
Business customers are welcome.

Savöx

Savöx SA-1230SG PLUS - SA-1230SG Plus Servo 36Kg 0,16s Alu Coreless Steel Gear

612,54 kr

SAVÖX SA-1230SG PLUS - Coreless Steel-Geared High Torque Servo

The Savox SA-1230SG-PLUS Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Extremely strong unique steel gears ensure long-life and durability
  • Ideal for steering on rock crawlers, monster trucks, and large scale aircraft
  • Slightly taller case design

Specifications:
  • Torque @ 4.8V: 30.0kg
  • Torque @ 6V: 36.0kg
  • Speed @ 4.8V: 0.20 sec/60 deg
  • Speed @ 6V: 0.16 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 44.9mm
  • Weight: 79g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @4.8V, 250mA @6.0V
  • Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
