Savöx  |  SKU: SB-2262SG Producent varenr.: SB-2262SG  |  EAN: 4710006993812

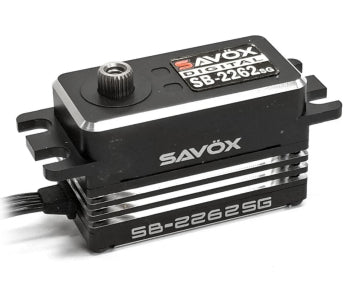

Savöx SB-2262SG - SB-2262SG Servo 23Kg 0,08s HV Alu Brushless Steel Gear Low

838,76 kr

Get a price match on Savöx SB-2262SG - SB-2262SG Servo 23Kg 0,08s HV Alu Brushless Steel Gear Low

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Last 1 units available - order now, delivery by 01 Oct (1 day)

In-store pickup

Last 1 units available - Nørresundby

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SB2262SG - Monster Torque Low Profile Steel Gear Servo 0.08s/25kg @ 7.4V

The powerful "Monster" performance series servos from Savox utilize an all aluminum case, and unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
  • Full Aluminum Case
  • 2 Precision Ball Bearings
  • Metal Gears

Specifications:
  • Torque @ 6.0v: 18kg
  • Speed @ 6.0v: 0.10s/60°
  • Torque @ 7.4v: 25kg/cm
  • Speed @ 7.4v: 0.08s/60°
  • Torque @ 8.4v: 32kg/cm
  • Speed @ 8.4v: 0.065s/60°
  • Dimensions L x W x H: 40.8 x 20.2 x 25.75mm
  • Weight: 62g

Technical Details:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
