Savöx  |  SKU: SAV-SB2267SG Producent varenr.: SB-2267SG  |  EAN: 4,71001E+12

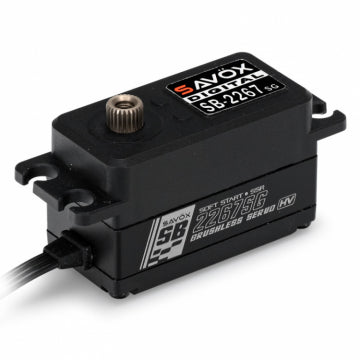

Savöx SB-2267SG - SB-2267SG Servo 23Kg 0.08s HV Alu Brushless Low Steel Gears

683,39 kr

Get a price match on Savöx SB-2267SG - SB-2267SG Servo 23Kg 0.08s HV Alu Brushless Low Steel Gears

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 4-6 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

Savöx SB-2267SG - Monster Torque, High Voltage, Low Profile, Brushless, Steel Gear Servo

This powerful performance low profile servo from Savox utilize an aluminum middle case and super strong (and light) upper and lower composite plastic case case and a unique brushless motor & controller technology to boost power up to 35% over previous generation servos.

Tech Specifications:
  • Servo Technology: Digital High Voltage
  • Input Voltage: 6-8.4V
  • Motor Type: Brushless
  • Gear Material: Steel
  • Output Gear Spline: 25 Tooth
  • Bearings: 2 Ball Bearings
  • Connector type: JR
  • Case: Composite plastic top & bottom, aluminium middle
  • Torque @ 6.0V: 18kg/cm
  • Speed @ 6.0V: 0.10s/60deg
  • Torque @ 7.4V: 25kg/cm
  • Speed @ 7.4V: 0.08s/60deg
  • Torque @ 8.4V: 32kg/cm
  • Speed @ 8.4V 0.065s/60deg
  • Dimensions (LxWxH): 40.8x20.2x26.05mm
  • Weight: 57g
  • Operating Temperature: -10°to +50°C)
  • Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
