Savöx  |  SKU: SAV-SC1251MGPLUS Producent varenr.: SC-1251MG PLUS  |  EAN: 4710006994154

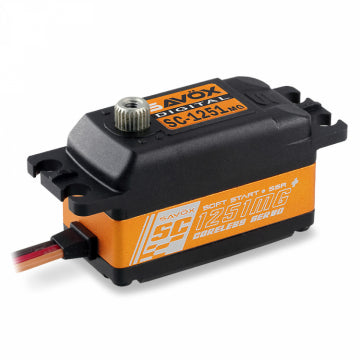

Savöx SC-1251MG PLUS - SC-1251MG Plus Servo 9Kg 0,09s Alu Coreless Metal Gear Low

435,59 kr

Get a price match on Savöx SC-1251MG PLUS - SC-1251MG Plus Servo 9Kg 0,09s Alu Coreless Metal Gear Low

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order before at 12:15, delivered in 6-8 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SC-1251MGPLUS - Metal-Geared Digital Low-Profile Servo - PLUS/V2

The SC-1251MG Plus is now updated with new software and is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • NEW! Softstart Function
  • NEW! Sanwa SSR compatible
  • Metal gear train ensures durability under harsh situations
  • Ideal for 1/10 on road vehicles and some boat applications
  • Aluminum case provides cooler operating temperatures

Specifications:
  • Voltage range: 4.8-6.6V
  • Torque @ 4.8V: 7kg/cm
  • Torque @ 6V: 9kg/cm
  • Speed @ 4.8V: 0.10 sec/60 deg
  • Speed @ 6V: 0.09 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 25.4mm
  • Weight: 44.5g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 950 ? 2050 µ second
  • Maximum Travel: Aprox. 160° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Coreless

Shipping

We ship with GLS:

From our warehouse in Denmark.
Shipping is calculated at checkout.
Business customers are welcome.

Savöx

Savöx SC-1251MG PLUS - SC-1251MG Plus Servo 9Kg 0,09s Alu Coreless Metal Gear Low

435,59 kr

SAVÖX SC-1251MGPLUS - Metal-Geared Digital Low-Profile Servo - PLUS/V2

The SC-1251MG Plus is now updated with new software and is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • NEW! Softstart Function
  • NEW! Sanwa SSR compatible
  • Metal gear train ensures durability under harsh situations
  • Ideal for 1/10 on road vehicles and some boat applications
  • Aluminum case provides cooler operating temperatures

Specifications:
  • Voltage range: 4.8-6.6V
  • Torque @ 4.8V: 7kg/cm
  • Torque @ 6V: 9kg/cm
  • Speed @ 4.8V: 0.10 sec/60 deg
  • Speed @ 6V: 0.09 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 25.4mm
  • Weight: 44.5g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 950 ? 2050 µ second
  • Maximum Travel: Aprox. 160° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Coreless
