Savöx  |  SKU: SAV-SH0254PLUS Producent varenr.: SH-0254 PLUS  |  EAN: 4710006994529

Savöx SH-0254 PLUS - SH-0254 Plus Servo 3,9Kg 0,13s Alu Micro

151,44 kr

Get a price match on Savöx SH-0254 PLUS - SH-0254 Plus Servo 3,9Kg 0,13s Alu Micro

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 3-5 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

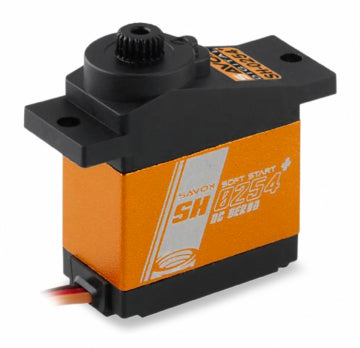

SAVÖX SH-0254PLUS - Digital Micro Servo

The Savox SH-0254-PLUS micro, digital servo has plenty of torque and uses a combination of industrial plastic and metal gears for added durabilty and smoothness.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Aluminum middle case allows for cooler operating temperatures
  • Industrial plastic and metal gear train ensures durability and longevity
  • Ideal for small planes and 450 size helicopters

Specifications:
  • Torque @4.8V: 3.1kg/cm
  • Torque @6V: 3.9kg/cm
  • Speed @4.8V: 0.16 sec/60 deg
  • Speed @6V: 0.13 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 29.4mm
  • Weight: 15.8g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 750 ? 2250 µ second
  • Maximum Travel: Appx 145° (750 ? 2250 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed


Note: This servo can be upgraded to metal gears by using the gear set for SH0255MG.
