Savöx  |  SKU: SH-0255MG PLUS Producent varenr.: SH-0255MG PLUS  |  EAN: 4710006994192

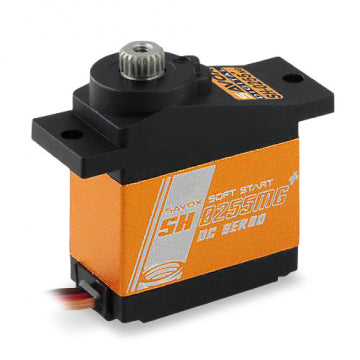

Savöx SH-0255MG PLUS - SH-0255MG Plus Servo 3,9Kg 0,13s Alu Metal Gear Micro

169,25 kr

Get a price match on Savöx SH-0255MG PLUS - SH-0255MG Plus Servo 3,9Kg 0,13s Alu Metal Gear Micro

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Out of stock

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SH-0255MG PLUS - Metal-Geared Digital Micro Servo - V2

The Savox SH-0255MG+ micro, metal-gear, digital servo has plenty of torque to match much larger standard size servos and outperform other competitive micro-size servos.

Features:
  • Metal gear train ensures durability and longevity
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal for small planes and 450 size helicopters
  • Soft Start

Specifications:
  • Torque @4.8V: 3.1kg/cm
  • Torque @6V: 3.9kg/cm
  • Speed @4.8V: 0.16 sec/60 deg
  • Speed @6V: 0.13 sec/60 deg
  • Dimensions L x W x H: 22.8 x 12.0 x 29.4mm
  • Weight: 15.8g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 750 ? 2250 µ second
  • Maximum Travel: Appx 145° (750 ? 2250 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
