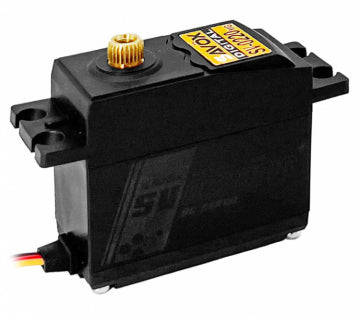

Savöx SV-0220MG PLUS - SV-0220MG Plus Servo 8Kg 0,13s HV Metal Gear

233,28 kr

Get a price match on Savöx SV-0220MG PLUS - SV-0220MG Plus Servo 8Kg 0,13s HV Metal Gear

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 3-5 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

Savox SV0220MGPLUS - High Voltage Standard Digital Servo 0.13s 8kg/cm @ 7.4V

The Savox SV-0220MG PLUS is a budget-friendly, metal-geared, digital standard servo capable of operating on high voltage.

Features:
  • Soft Start
  • Sanwa SSR compatible
  • High Voltage
  • Metal gear train ensures durability and longevity

Specifications:
  • Torque @ 6V: 6.5kg/cm
  • Torque @ 7.4V: 8kg/cm
  • Speed @ 6V: 0.16s/60deg
  • Speed @ 7.4V: 0.13s/60deg
  • Dimensions: L40.7 x W20 x H37mm
  • Weight: 59g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 1BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
