Description

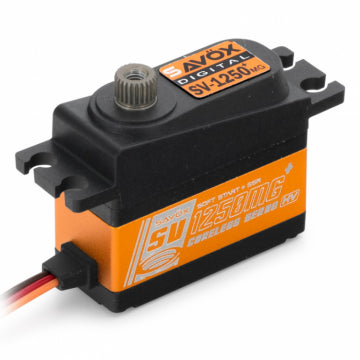

SAVÖX SV-1250MGPLUS - Metal-Geared High Voltage Mini Servo

The SV-1250MG Plus mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.

Features:
  • New: Soft Start
  • High Voltage
  • Metal gear train provide durability against heavy use
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal where torque is needed in a small mounting space

Specifications:
  • Torque @6V: 4.6kg/cm
  • Torque @7.4V: 8kg/cm
  • Torque @8.4V: 10kg/cm
  • Speed @6V: 0.11 sec/60 deg
  • Speed @7.4V: 0.095 sec/60 deg
  • Speed @8.4V: 0.085 sec/60 deg
  • Dimensions L x W x H: 35.0 x 15.0 x 29.2mm
  • Weight: 29.6g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 110° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 154° (800 ? 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
