Savöx  |  SKU: SAV-SW2290SG Producent varenr.: SW-2290SG  |  EAN: 4,71001E+12

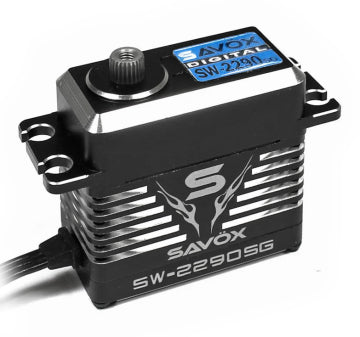

Savöx SW-2290SG - SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Steel Gear WP

994,03 kr

Get a price match on Savöx SW-2290SG - SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Steel Gear WP

Have you found the item cheaper at another retailer? Paste the link below and we will quickly let you know whether we can match the price. We look at the total price — including shipping, duties and fees — and the item should be in stock with them. We match if we can. Read the terms here.

Delivery

Available at supplier - order now, delivered in 4-6 days

In-store pickup

Out of stock

In stock? Then we dispatch in:

Fast dispatch from our warehouse in Denmark

Fast dispatch from our warehouse in Denmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Delivery 1–2 working days
  • Shipping from 35 kr.
  • Certified Danish webshop (E-mærket)
  • Easy and secure payment
  • Can be collected at our shop in Nørresundby
     View shop information

Description

SAVÖX SAV-SW2290SG - Waterproof Monster Torque High Voltage, Brushless, Digital Servo 0.11s / 70kg/cm @ 8.4v

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
  • Waterproof (IP67)
  • Full Aluminum Case
  • 3 Precision Ball Bearings
  • Unique steel gears

Specifications:
  • Torque @ 6v: 45kg
  • Torque @ 7.4v: 55kg
  • Torque @ 8.4v: 70kg
  • Speed @ 6v: 0.16s/60°
  • Speed @ 7.4v - 0.13s/60°
  • Speed @ 8.4v - 0.11s/60°
  • Dimensions L x W x H: 41 x 21 x 39.9mm
  • Weight: 81g

Technical:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless

Shipping

We ship with GLS:

From our warehouse in Denmark.
Shipping is calculated at checkout.
Business customers are welcome.

Savöx

Savöx SW-2290SG - SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Steel Gear WP

994,03 kr

SAVÖX SAV-SW2290SG - Waterproof Monster Torque High Voltage, Brushless, Digital Servo 0.11s / 70kg/cm @ 8.4v

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
  • Waterproof (IP67)
  • Full Aluminum Case
  • 3 Precision Ball Bearings
  • Unique steel gears

Specifications:
  • Torque @ 6v: 45kg
  • Torque @ 7.4v: 55kg
  • Torque @ 8.4v: 70kg
  • Speed @ 6v: 0.16s/60°
  • Speed @ 7.4v - 0.13s/60°
  • Speed @ 8.4v - 0.11s/60°
  • Dimensions L x W x H: 41 x 21 x 39.9mm
  • Weight: 81g

Technical:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
