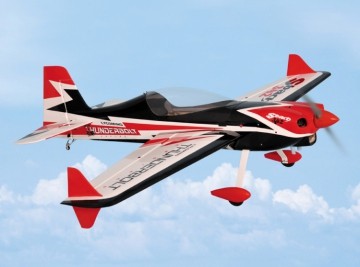

Sbach 342 35cc 2000mm GP/EP ARF

Black Horse Sbach 342 ARF – 2000 mm

Large aerobatic RC plane for petrol or electric power

The Black Horse Sbach 342 is a large, advanced aerobatic RC plane with a 2000 mm wingspan. The model is built from balsa and plywood and comes pre-covered in Oracover. It is designed for powerful aerobatics and can be built with either a 33-35 cc petrol engine or a powerful electric setup.

The model is supplied as ARF (Almost Ready to Fly), with the main parts of the airframe already built and covered. You still need to install the electronics, engine or motor, servos and other RC equipment before flying.

Built for aerobatic flying

• 2000 mm wingspan
• Balsa and plywood construction
• Pre-covered in Oracover
• Can be built for both petrol and electric power
• Designed for a 33-35 cc petrol engine
• Can be used with a 2500-3200W brushless electric motor
• Recommended electric setup with 12S LiPo
• NACA wing profile
• Aluminium main and tail landing gear included
• Requires at least a 6-channel radio system
• ARF model for the experienced RC pilot and modeller

Specifications

• Manufacturer: Black Horse
• Model: Sbach 342
• Type: Aerobatic RC plane
• Build level: ARF
• Scale: 27%
• Wingspan: 2000 mm
• Length: 1890 mm
• Flying weight: Approx. 5.5-5.7 kg
• Wing area: 79.3 dm²
• Wing loading: Approx. 69.36 g/dm²
• Wing profile: NACA
• Construction: Balsa and plywood
• Covering: Oracover
• Servo size: 42 x 21 mm
• Landing gear: Aluminium

Recommended petrol setup

• Engine: 33-35 cc petrol engine
• Propeller: To suit the chosen engine
• Radio: At least 6 channels
• Servos: 6 pcs. HV high-torque servos with steel gears

Recommended electric setup

• Motor: Brushless outrunner, 2500-3200W / approx. 250KV
• Recommended motor: RimFire 1.60 or equivalent
• Battery: 12S LiPo, 4000-5500 mAh
• ESC: 80-100A
• Receiver battery: 6-7.4V / 1200-2200 mAh
• Radio: At least 6 channels
• Servos: 6 pcs. HV high-torque servos with steel gears

What's in the box

• Black Horse Sbach 342 ARF plane
• Aluminium main landing gear
• Aluminium tail landing gear
• Oracover-covered airframe parts

What you need

• At least a 6-channel transmitter and receiver
• 6 pcs. suitable HV high-torque servos with steel gears
• Petrol engine or electric motor setup
• Suitable propeller
• For electric power: 12S LiPo battery and 80-100A ESC
• Suitable LiPo charger for electric power
• Receiver battery
• Standard tools and accessories for final assembly
