Smart S100 G2 USB-C Charger

Spektrum Smart S100 G2 USB-C Charger with 65W Power Supply

Compact Smart charger for up to 4S LiPo, LiFe and LiHV with IC3 and IC5

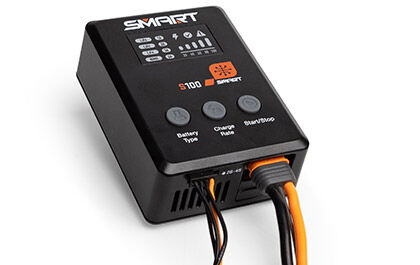

The Spektrum S100 Smart USB-C Charger is a compact, easy-to-use RC charger with up to 100W of charging power. With Spektrum Smart batteries, the charger can automatically detect the battery type and charging parameters, among other things, and then start charging with the correct settings.

The S100 has both an IC3 and an IC5 output directly on the charger. A slide switch selects the connector you want, so Spektrum Smart batteries with either connector type can be connected without a separate adapter. IC3 and IC5 are also backwards compatible with EC3 and EC5 respectively.

With Smart G2 batteries, both charging and balancing take place through the single IC3 or IC5 connector, so there is no separate balance plug to connect. The charger supports up to 4S LiPo, LiFe and LiHV and can also charge many standard non-Smart RC batteries. Non-Smart NiMH batteries are not supported, however.

65W USB-C power supply included

This package includes a Spektrum 65W USB-C power supply based on GaN technology. The compact power supply delivers up to 65W via USB Power Delivery and has built-in protection against overvoltage, overheating and short circuits.

Please note that the S100 charger itself can deliver up to 100W, but the actual charging power depends on the USB-C power supply and USB-C cable connected. With the included 65W power supply, the available input power is therefore lower than the charger's maximum capacity of 100W.

Features

• Spektrum Smart USB-C battery charger
• Up to 100W charging power with a suitable USB-C power supply and cable
• Spektrum Auto Charge with compatible Smart batteries
• Supports up to 4S LiPo, LiFe and LiHV
• IC3 and IC5 charging outputs directly on the charger
• IC3 is backwards compatible with EC3
• IC5 is backwards compatible with EC5
• Smart G2 batteries are charged and balanced through one connector
• No separate balance lead needed with compatible Smart G2 batteries

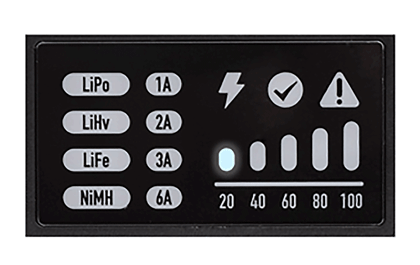

• Indicator shows the available power from the USB-C power supply at start-up
• USB-C Power Delivery
• Built-in quiet cooling fan
• Firmware can be updated via the USB-C port
• Compact case with non-slip rubber base
• 65W GaN USB-C power supply included

Specifications

• Manufacturer: Spektrum
• Model: S100 Smart USB-C Charger
• Maximum charging power: Up to 100W
• Input: USB-C Power Delivery
• Charging outputs: IC3 and IC5
• Supported lithium batteries: LiPo, LiFe and LiHV
• Maximum number of lithium cells: 4S
• Smart G2 balancing: Via the IC3/IC5 Smart connection
• Non-Smart NiMH: Not supported
• Included power supply: Spektrum 65W USB-C Power Supply
• Power supply technology: GaN – Gallium Nitride
• Maximum power supply output: 65W

What's in the box

• 1 x Spektrum S100 1x100W Smart USB-C Charger
• 1 x Spektrum 65W USB-C GaN power supply
• USB-C connection to the power supply

What you need

• Compatible RC battery
• If required, a suitable adapter or charge lead for batteries that do not use a compatible IC3, EC3, IC5 or EC5 connector
