SR6100AT 6 Channel AVC/Telemetry Surface Receiver

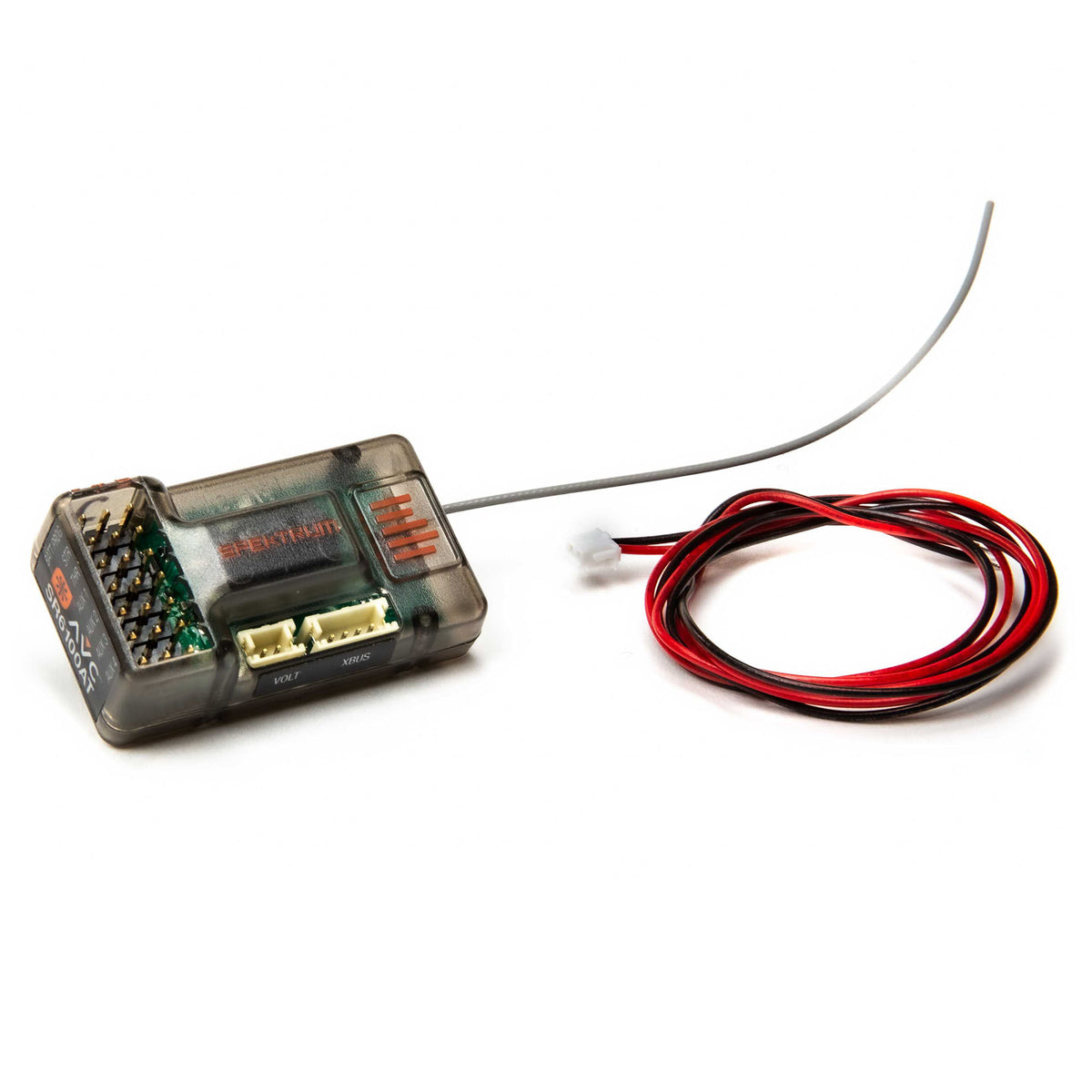

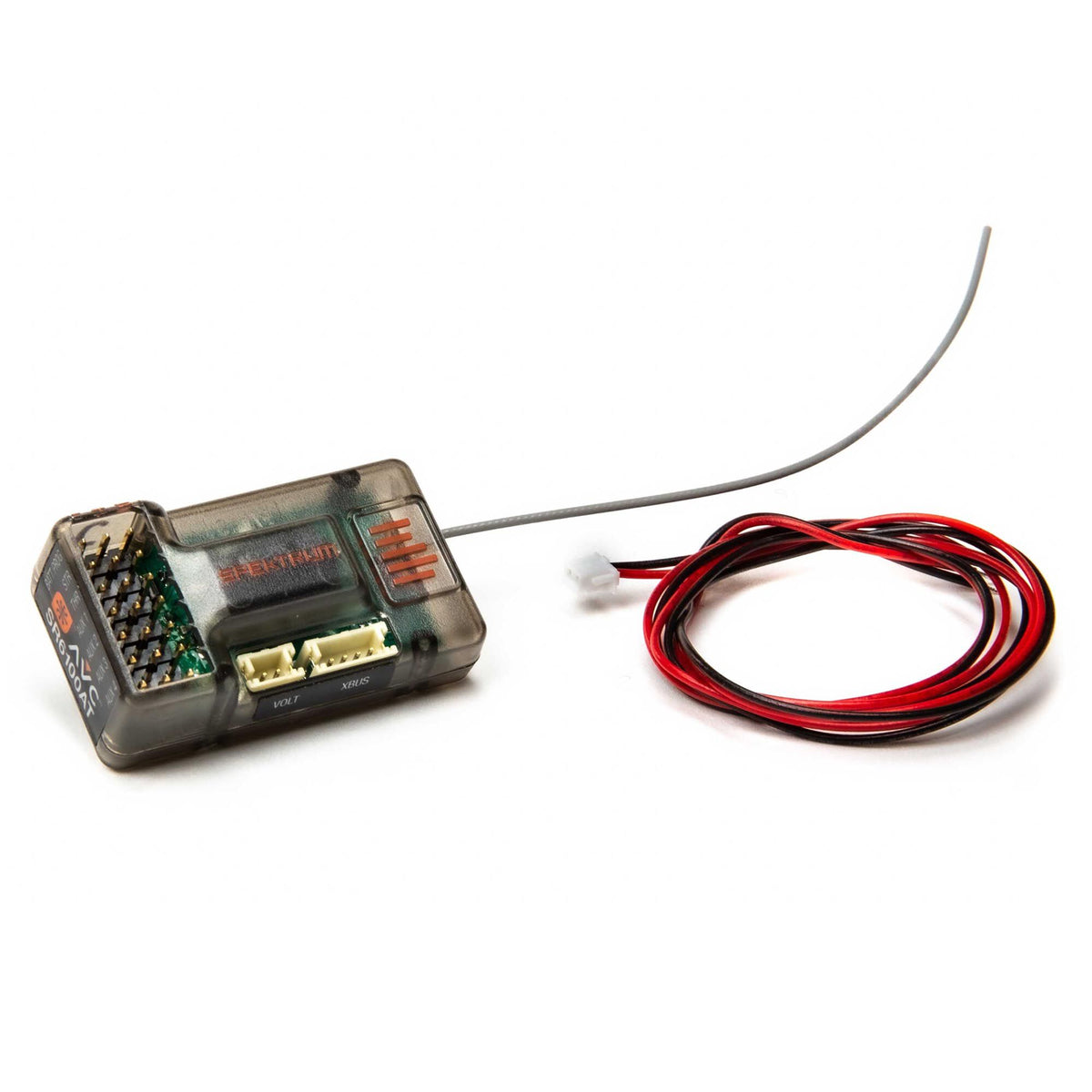

Spektrum SR6100AT 6-channel AVC/telemetry surface receiver

Stability control in any car in your collection – simply by swapping the receiver. The SR6100AT has Spektrum's patented AVC (Active Vehicle Control), which reads your inputs, senses the car's direction and makes up to 180 steering and throttle corrections per second, so you can hold your line without backing off. Steering always takes priority, and you decide how much stability you want – or switch it off completely.

Six channels leave room for lights, a shift servo and other accessories, and frequency-agile DSMR technology maintains range and response even where many 2.4 GHz systems are running at the same time. The throttle port has Smart Throttle: it automatically recognises a Smart ESC (e.g. Firma) and sends telemetry – including battery data from Smart LiPo batteries with IC connectors. A voltage sensor is included. AVC calibrates the gyro itself at start-up: switch on, place the car flat on its wheels, wait a few seconds – and drive!

Features

• 6 channels, DSMR/DSM2 – compatible with all DSMR transmitters
• AVC: up to 180 corrections per second, fully adjustable, can be switched off; steering takes priority

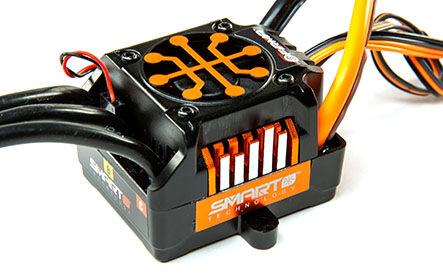

• Full telemetry with Spektrum Firma Smart ESC; Smart Throttle on the throttle port; two telemetry ports
• Voltage sensor port – sensor included
• Water-resistant 'Realkote' coating protects the electronics
• AVC Auto Calibration – end points are read from the transmitter, the gyro is calibrated at start-up
• Works in any RC car, truck or buggy

Specifications

• Channels: 6
• Protocol: DSMR / DSM2
• Stabilisation: AVC, 3-axis gyro

What's in the box

• SR6100AT receiver
• Voltage sensor

Video

Images

Please note: Auto Calibration requires transmitter firmware 2.03 and receiver firmware 2.40.11 or later.
