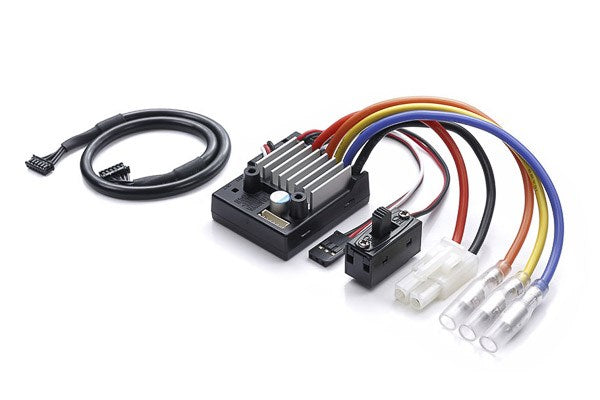

Tamiya Brushless Electronic Speed Controller 04S

Tamiya brushless electronic speed controller 04S (sensored)

Sensored brushless speed controller designed for Tamiya sensored brushless motors – and for brushed motors of 25T and above. The speed controller detects the rotor position precisely, which gives a more efficient power supply and a smoother response from the motor.

Top speed (high point), neutral brake and brake can each be adjusted separately, and battery cut-off, reverse and motor mode can be selected. The set-up is shown by an LED, and two protection functions – against overheating and overload – help prevent damage to your equipment.

Features

• Sensored – precise rotor position for efficient power and smooth response
• 10 settings for both neutral brake and brake
• Adjustable top speed; selectable battery cut-off, reverse and motor mode
• LED display of the set-up
• Protection against overheating and overload

Specifications

• Weight: 47 g incl. cables
• Dimensions: 41.5 x 33.4 x 18 mm
• Batteries: NiCd, NiMH and Tamiya LiFe

Compatible with

• Tamiya sensored brushless motors of 15.5 turns and above
• Tamiya brushed motors of 25 turns and above
