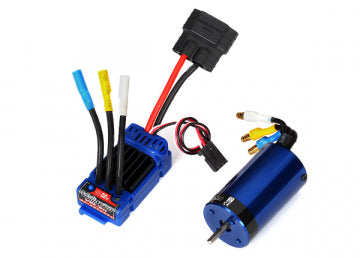

TRAXXAS 3370 Velineon VXL-3m Brushless Power System

Velineon VXL-3m brushless power system for 1/16 scale

Is your 1/16 model still running a brushed motor? Then this is where the fun begins. The Velineon 380 motor is built specifically for 1/16 scale and delivers more power than comparable brushed motors — the same power, run after run, without running out of breath after a few laps of the garden. The power comes from sintered neodymium magnets that withstand very high temperatures and give huge torque that builds up in a linear way. You feel it as pull all the way from standstill to top speed!

And the throttle? Smooth and precise. High-frequency transistors and a well-designed circuit make sure the car does exactly what your finger tells it — not a notch more. The motor is an 8-turn with 4000 Kv, it runs on efficient ball bearings, the rotor is precision-balanced, and the stator uses silicon steel laminations. All of it is packed into Traxxas' own design, which needs minimal maintenance. If it does get tired after many seasons, it can be taken apart and rebuilt. That is smart!

The finish is blue-anodised and matches your other blue Traxxas parts, the screws have hex sockets, and the Traxxas High Current battery connector is an integral part of the system — resistance is kept low all the way from connector to motor, so the power can flow freely. Now you are ready to give your little car something to bite into!

Features

• Sintered neodymium magnets for very high temperatures — massive torque and linear power
• Optimised for power and efficiency in 1/16 scale
• Consistently high performance, run after run
• Traxxas' own design with minimal maintenance
• Efficient ball bearings for high rpm
• Precision-balanced rotor
• 8-turn, 4000 Kv
• Can be taken apart and rebuilt
• Hex socket screws
• Blue-anodised finish
• Silicon steel laminations
• More power than comparable brushed motors
• Traxxas High Current battery connector as part of the system
• High-frequency transistors and a well-designed circuit give smooth throttle response

Specifications

• Motor can length: 48.15 mm
• Motor can diameter: 28 mm
• Shaft length: 12.7 mm
• Shaft diameter: 3.17 mm (1/8")
• Kv: 4000 (8-turn)
• Current: 25 A continuous / 50 A burst
• Max. speed: 50,000 rpm
• Weight: 140 g
