Traxxas 8140X Long Arm Lift Kit Blue Complete TRX-4

Long Arm Lift Kit in blue – complete for TRX-4

Is your TRX-4 sitting a little too low for the rocks you really want to get over? Help is here. This lift kit raises the car and does it properly: long-arm links, longer aluminium shocks, taller springs and extended driveshafts – all in one box. We at Hobbyviking are quite pleased that Traxxas has also thought about the steering: a revised front servo mount makes sure the steering geometry is right once the car has been raised. Smart!

So is it half a kit where you have to hunt for the rest yourself? NO! Half shafts in several lengths, T-Lock cables for the front and rear differentials, a 10T pinion, shock oil and spare parts are all included, so you can install it correctly from the start. If you want to run a 324 mm wheelbase, the extended rod ends are ready too. And the aluminium parts are blue – so they match your other blue aluminium parts.

Features

• Long-arm links
• Longer aluminium shocks
• Taller springs
• Extended driveshafts
• Revised front servo mount for correct steering geometry
• Colour: blue

Specifications

• Wheelbase: 324 mm (with extended rod ends)
• Front differential T-Lock cable: 168.9 mm
• Rear differential T-Lock cable: 207.9 mm
• Pinion gear: 10T
• Set screw: 3x3 mm
• BCS screws: 3x20 mm

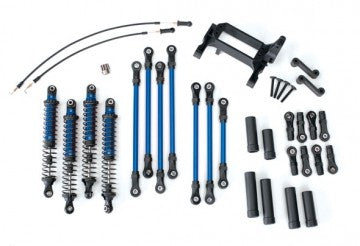

Package contents

• Front Servo Mount Battery Plate Spacer (2)
• 3x20 mm BCS (4)
• Differential T-Lock Cables (168.9 mm front and 207.9 mm rear)
• Long Aluminum GTS Shocks (4)
• Shock Springs (4)
• Silicone Shock Oil
• Front Upper Suspension Link (assembled with angled rod ends and hollow balls)
• Front Lower Suspension Link (assembled with standard rod ends and hollow balls) (2)
• Rear Upper Suspension Links (assembled with angled rod ends and hollow balls) (2)
• Rear Lower Suspension Links (assembled with standard rod ends and hollow balls) (2)
• Standard Extended Rod Ends (assembled with hollow balls) (4) (for 324 mm wheelbase)
• Angled Extended Rod Ends (assembled with hollow balls) (4) (for 324 mm wheelbase)
• Short Female Half Shaft
• Medium Female Half Shaft (2)
• Long Female Half Shaft
• X-Long Female Half Shaft (2)
• 10T Pinion Gear
• 3x3 mm Set Screw
• Extra E-clips (2)

Fits these models

• Traxxas TRX-4
