Xerun Combo AXE 5IVE R3 - 4987SD 1600KV R3S Crawler

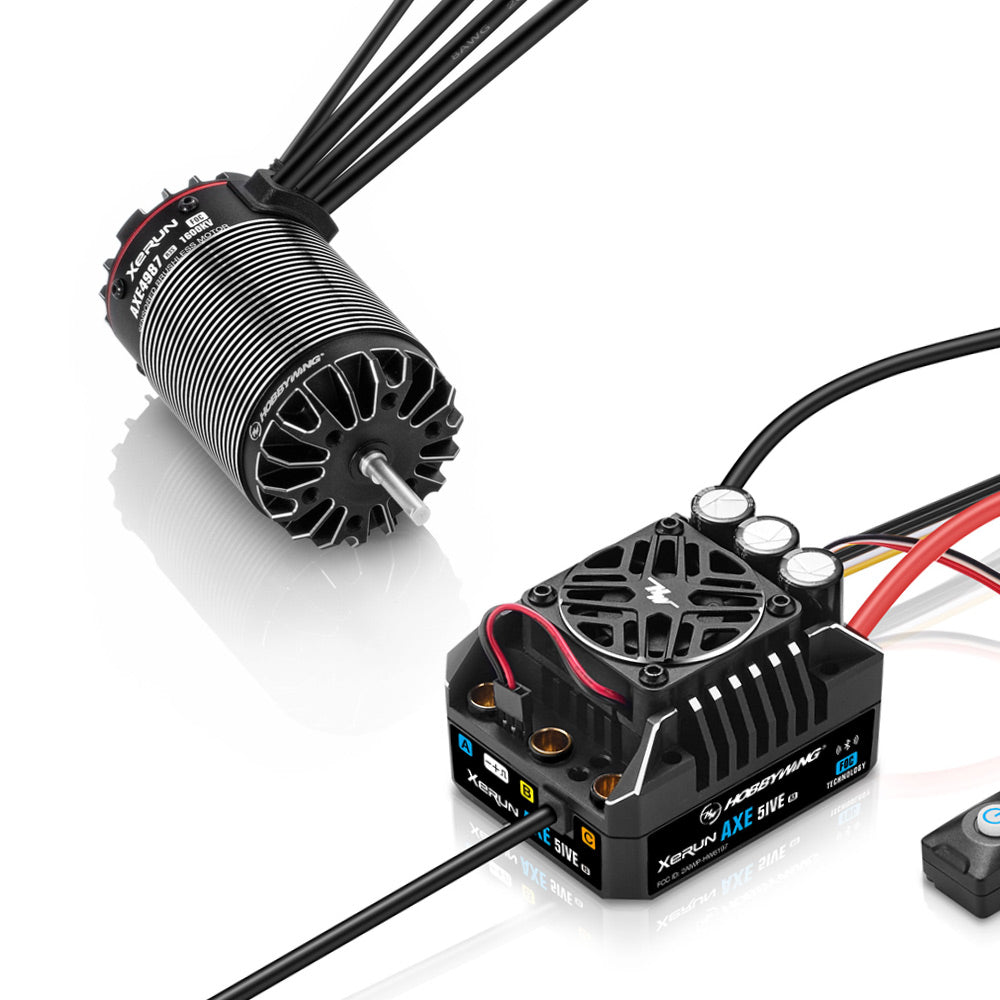

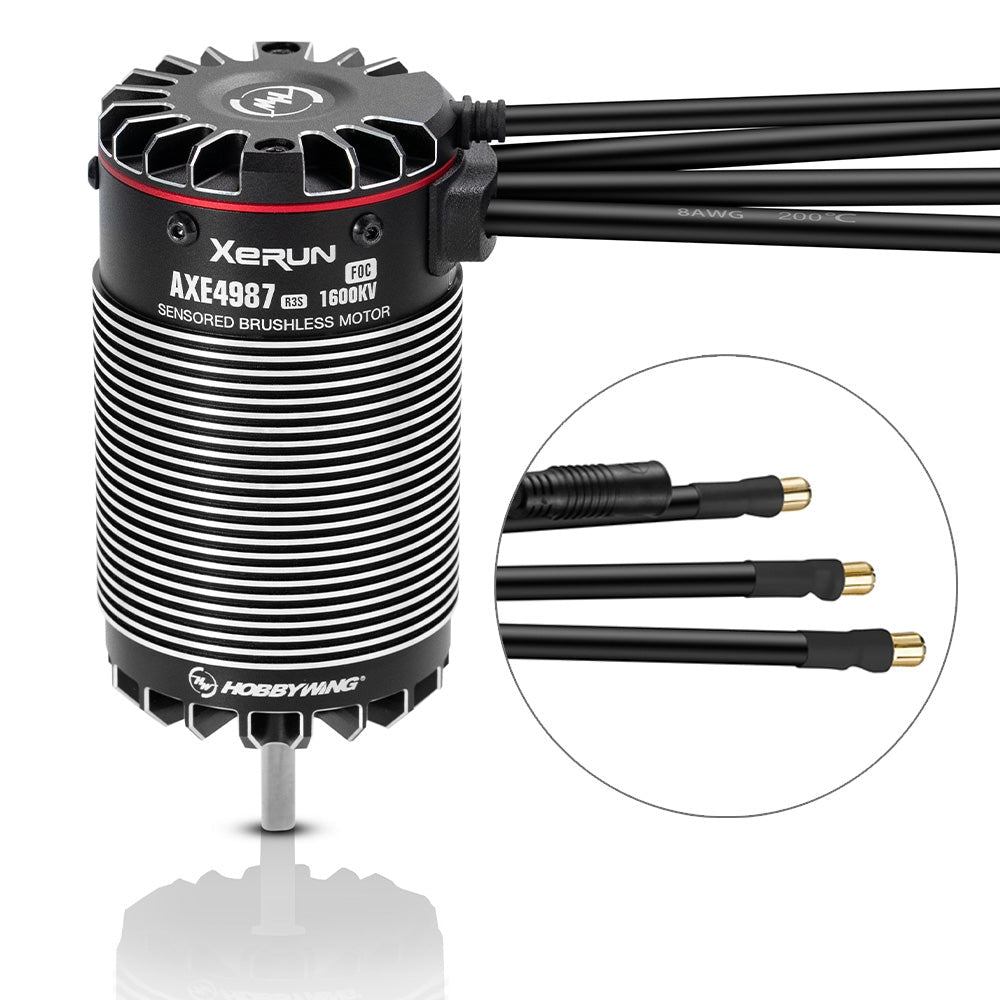

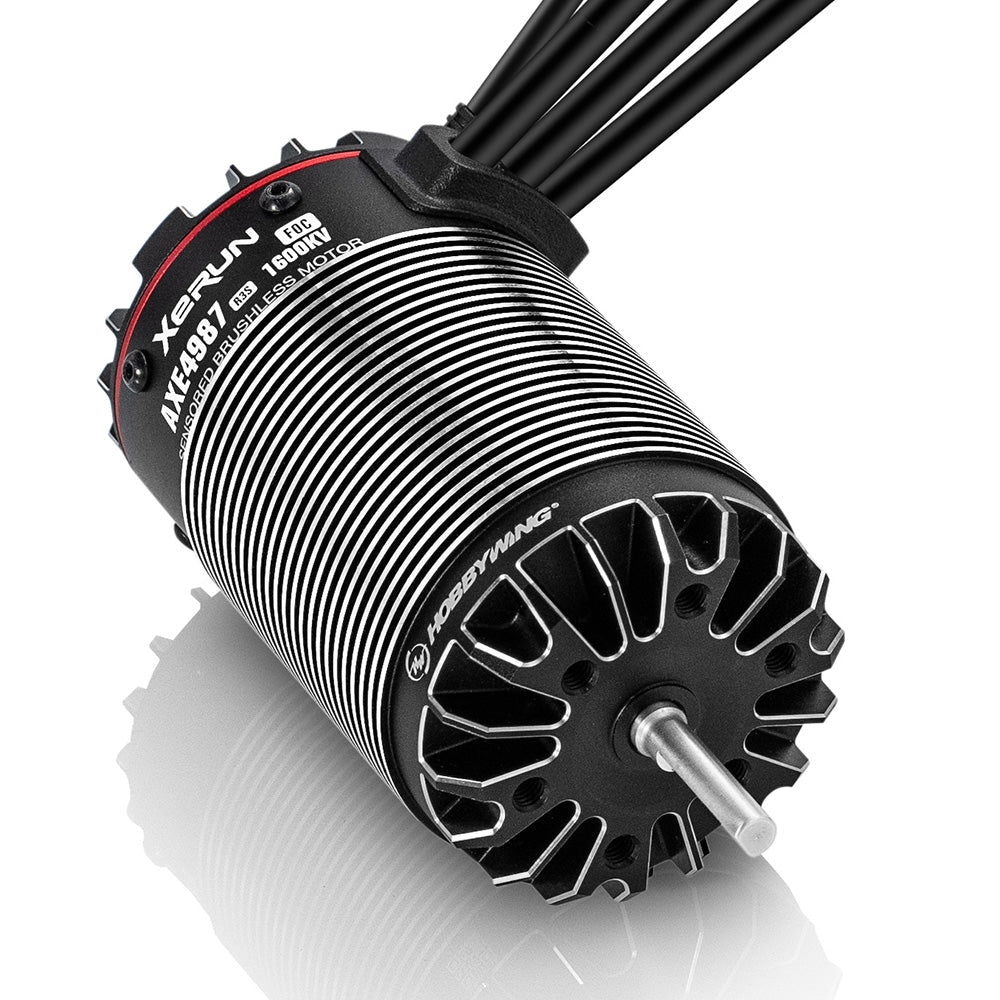

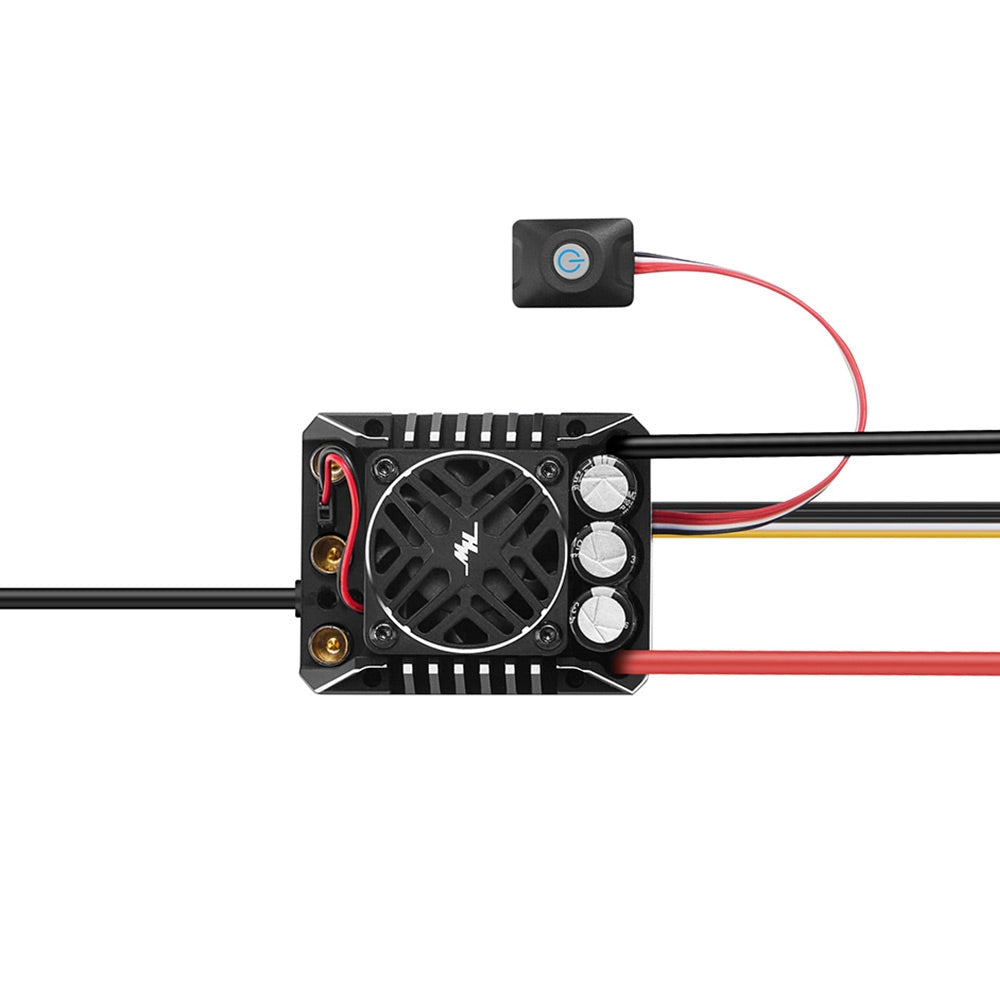

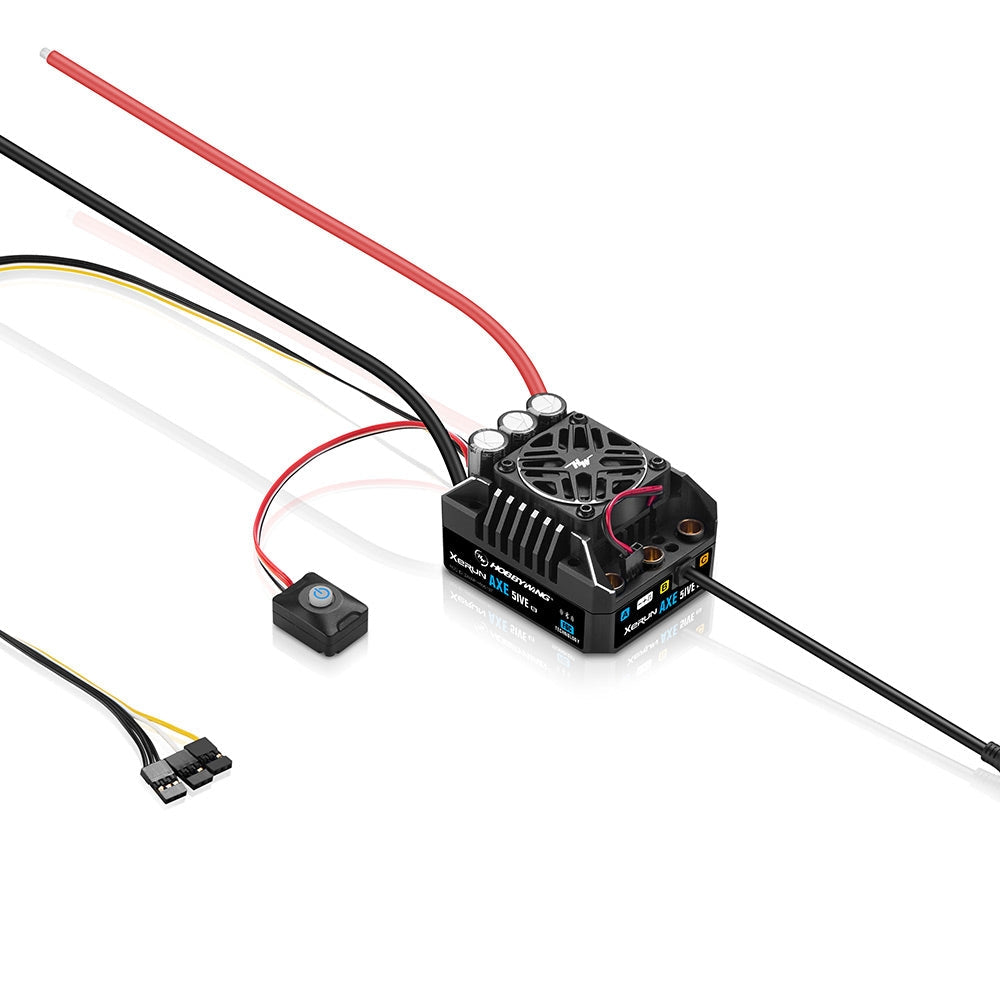

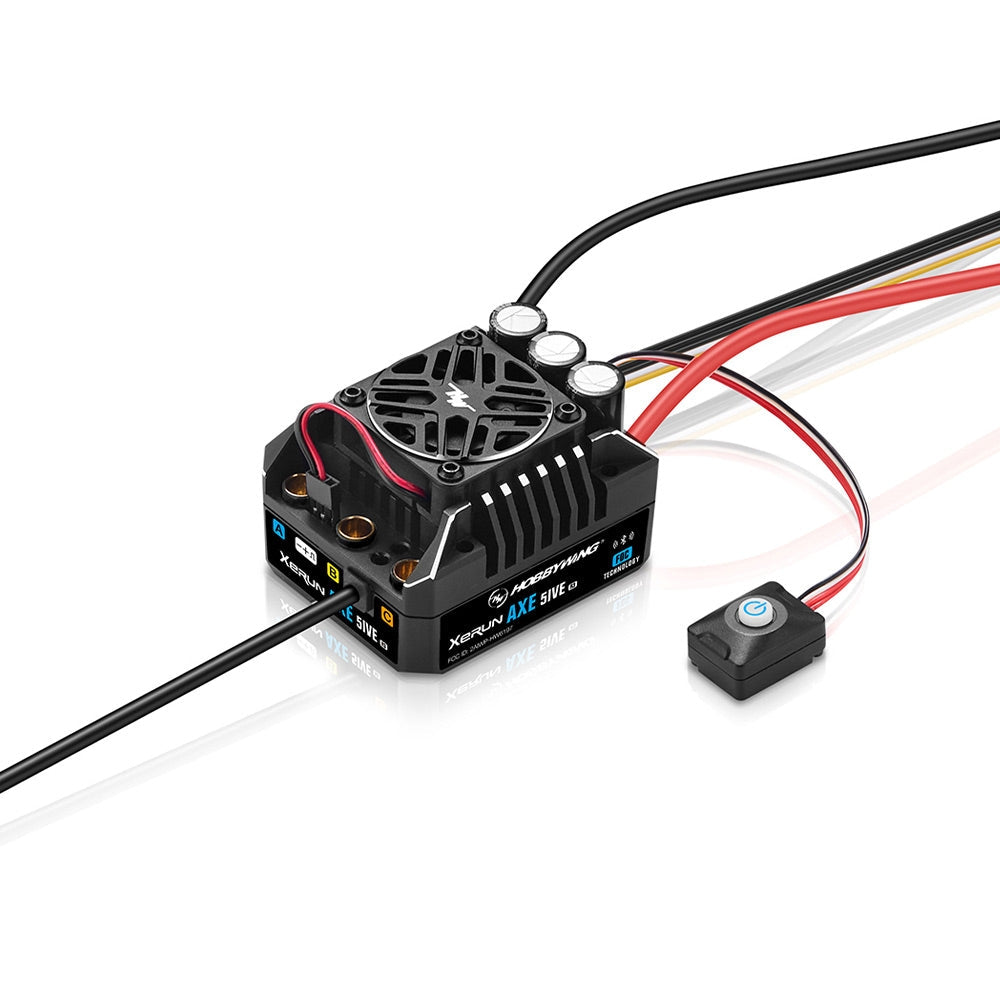

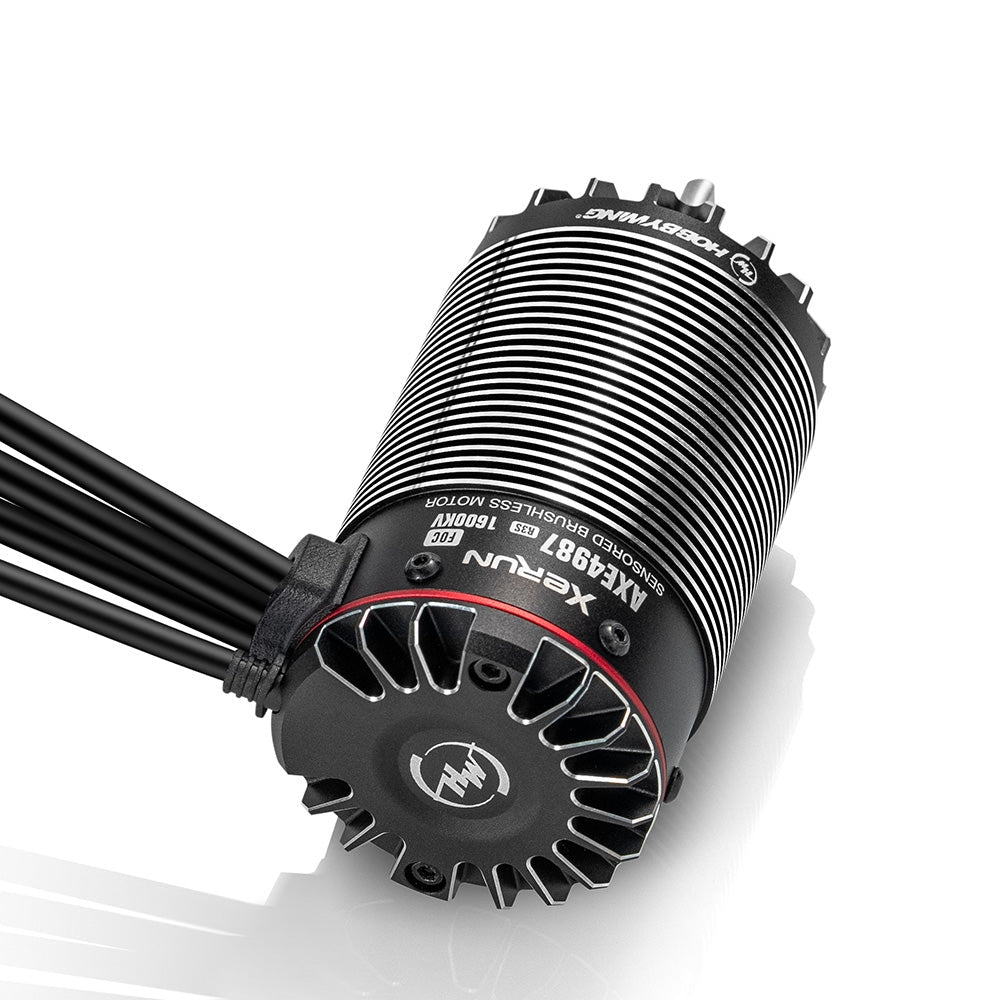

Hobbywing 38020600 – XeRun AXE 5IVE R3 + AXE 4987 R3S 1600 kV Crawler ComboSensored FOC brushless system for 1/5 and 1/6 scale crawlers: XeRun AXE 5IVE R3 ESC (3–8S, 220 A) with XeRun AXE 4987 R3S motor (1600 kV).The AXE 5IVE R3 combo is Hobbywing's high-power FOC system for large-scale crawlers. FOC (Field Oriented Control) gives very strong, smooth torque at the lowest speeds and runs almost silently. Intelligent torque control and closed-loop speed control keep motor rpm steady under changing loads – adding torque uphill and holding back the speed downhill.XeRun AXE 5IVE R3 ESC (30114000)3–8S LiPo, 220 A continuous / 900 A peak currentUltra-high-voltage BEC, adjustable from 6 to 14 V in 0.1 V steps (15 A, up to 35 A max) – for HV servos, lights and winchesTwo auxiliary channels (white and yellow signal wires) for adjusting settings such as drag brake from the transmitter while drivingDrag brake up to 200% for strong holding power on slopesBuilt-in Bluetooth – settings, live data and firmware updates via the HW Link app, no extra module requiredFour driving modes, 22 adjustable parameters and up to 24° Turbo timingSmart fan that only runs when needed (can be disabled)IP67-rated water and dust protectionProtections: low-voltage cutoff, thermal protection, fail-safe and motor lock-up protectionTelemetry and ESC tuning with FlySky NB4 series radios (requires a FlySky firmware update)XeRun AXE 4987 R3S motor (30401402)1600 kV on 3–8S LiPo, purpose-built for 1/5 and 1/6 scale crawlersBuilt-in high-precision magnetic encoder – according to Hobbywing 60× more accurate rotor-position data than conventional Hall sensors – for smooth, cogging-free low-speed controlCompact size: 49.5 × 87 mmIP66-rated for rain, snow, mud and sandCNC-machined aluminium housing, top-tier bearings, 200 °C-rated enamelled wire and high-strength alloy shaftSpecificationsESC:Input: 3–8S LiPoCurrent: 220 A continuous / 900 A peakBEC: 6–14 V adjustable, 15 AInput wires: 10 AWG, 300 mm (no battery connector fitted)Motor connectors: 6.5 mm femaleFan: 40 × 40 × 10 mm, powered by the BECProgramming: built-in Bluetooth (HW Link app)Size: 70.2 × 56.3 × 45.5 mmWeight: 308.2 g (incl. wires)Compatible motors: XeRun AXE 4987 R3S and AXE 4274 R3 (4274 R3: 3–6S only)Motor:KV: 1600 kVLiPo: 3–8SNo-load current: 12.1 ADiameter × length: 49.5 × 87 mmShaft: 5 mmWires: 10 AWG × 300 mm × 3Connectors: 6.5 mm maleWeight: 660 gProtection: IP66In the box1 × XeRun AXE 5IVE R3 ESC1 × XeRun AXE 4987 R3S motor
