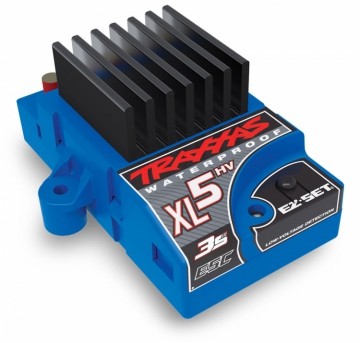

Traxxas 3025 ESC XL-5HV 3S WP

Traxxas XL-5HV waterproof speed controller (ESC) – 2-3S LiPo

The trail-tuned XL-5 HV is Traxxas' waterproof ESC for you if you drive crawlers and trail trucks – and do not want to stop just because there is a puddle on the route. It is fully waterproof, so mud, snow and a cold stream are no problem. The large, efficient heat sink keeps the temperature down, and if it still gets too hot, the thermal protection shuts it down before anything is damaged. The voltage range is wide: 6–7 cell NiMH (7.2–8.4 V) or 2–3S LiPo (7.4–11.1 V). You decide how much punch you want.

Do you have to sit hunched over a manual, beeping your way through menus? NO! Traxxas EZ-Set® handles setup with a single button. From there you choose between five driving profiles. Sport Mode for everyday fun, Race Mode without reverse for the track, and the patented Training Mode™, which halves the power forwards and backwards – but keeps full braking – so the little ones can join in until it is your turn again. Smart! Trail Mode gives you a drag brake at neutral, tuned for trails and rocks, and Crawl Mode skips neutral completely: let go of the throttle on a slope, and the 100 % hill holding brake holds the truck until you drive on – forwards or instantly in reverse.

The two-stage low-voltage detection (LVD) looks after your LiPos and can be switched on or off as needed. See it in action here:

Features

• Trail-tuned XL-5 HV Waterproof Electronic Speed Control
• Fully waterproof design
• Five driving profiles:
• Sport Mode – forward / brake / reverse
• Race Mode – forward / brake / no reverse
• Training Mode™ – 50 % forward / 100 % brake / 50 % reverse (patented)
• Trail Mode – forward / brake / reverse / with trail-tuned drag brake at neutral
• Crawl Mode – forward / instant reverse, no neutral, with 100 % hill holding brake
• Traxxas EZ-Set® one-button setup
• Large, efficient heat sink
• Wide voltage range: 6–7 cell NiMH (7.2–8.4 V) and 2–3S LiPo (7.4–11.1 V)
• Two-stage low-voltage detection (LVD)

Specifications

• Input voltage: 6–7 cell NiMH, 2–3S LiPo
• Case size: 31.2 x 55.4 x 26.4 mm (W x D x H)
• Weight: 74 g
• Motor limit: 21 turns (550 size)
• On resistance forward: 0.004 ohm
• On resistance reverse: 0.004 ohm
• Peak current forward: 100 A
• Peak current reverse: 100 A
• Brake current: 60 A
• Continuous current: 18 A
• BEC voltage: 6.0 V DC
• BEC current: 1 A
• Power wire: 14 gauge / 127 mm
• Input wire: 26 gauge / 368 mm
• Transistor type: MOSFET
• PWM frequency: 1700 Hz
• Low-voltage detection (LVD): 2-stage indicators, can be switched on or off
• Thermal protection: Thermal Shutdown
• One-button setup: Yes, Traxxas EZ-Set®

Profile selection

• Sport Mode: 100 % forward, 100 % brake, 100 % reverse
• Race Mode: 100 % forward, 100 % brake, no reverse
• Training Mode*: 50 % forward, 100 % brake, 50 % reverse
• Trail Mode: 100 % forward, 100 % brake, 100 % reverse, trail-tuned brake at neutral
• Crawl Mode: 100 % forward, 100 % instant reverse, 100 % brake at neutral

* Patented
